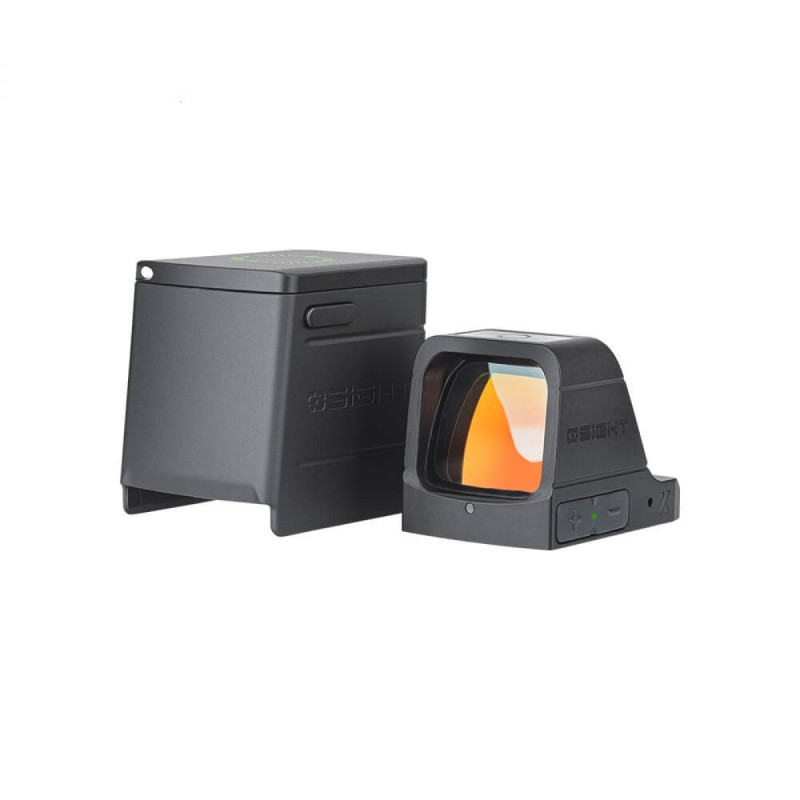

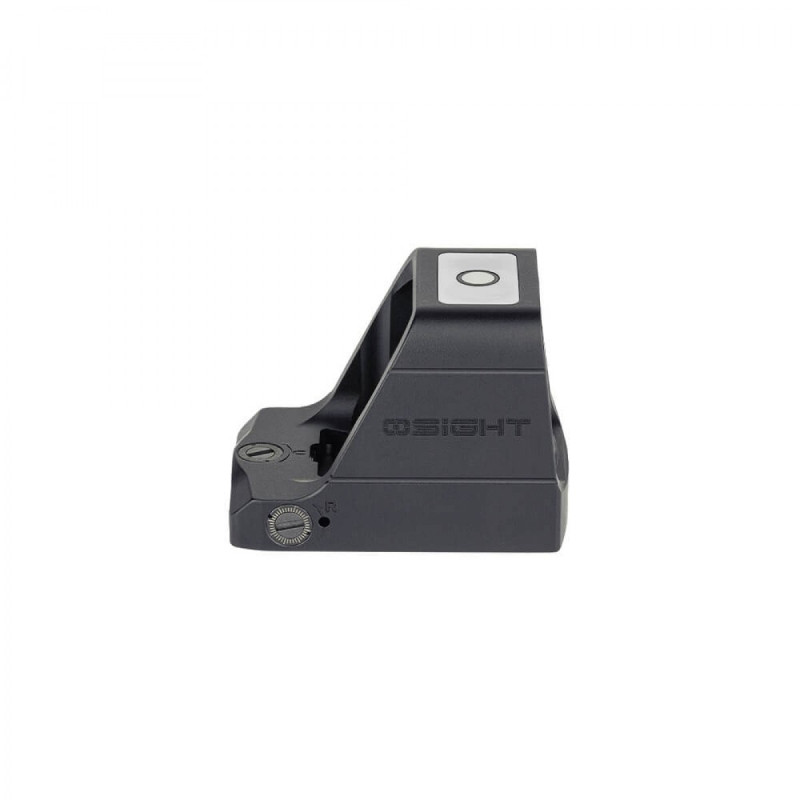

Olight Osight X with USB-C charger

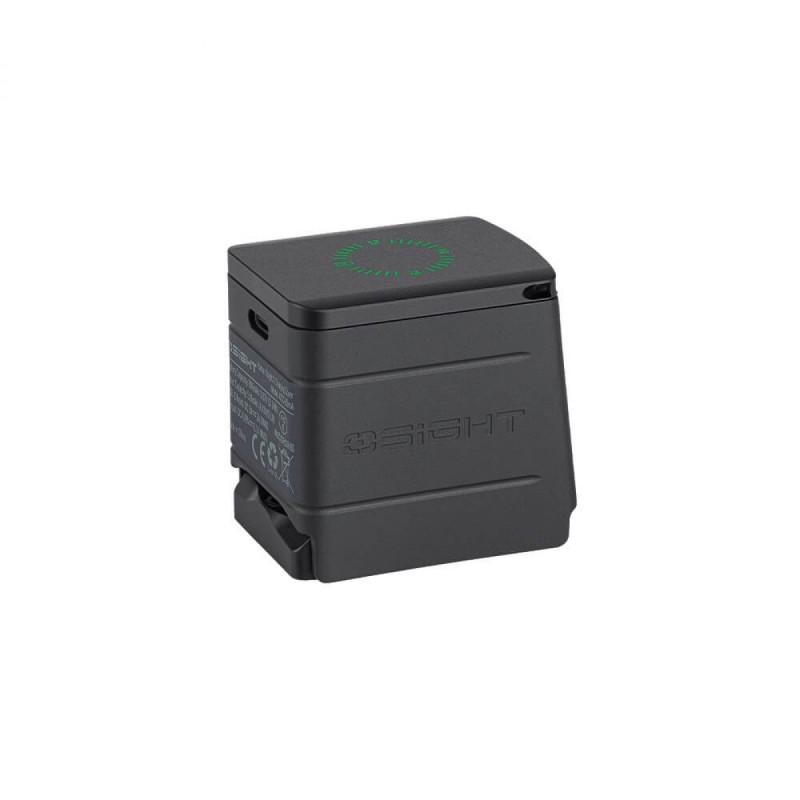

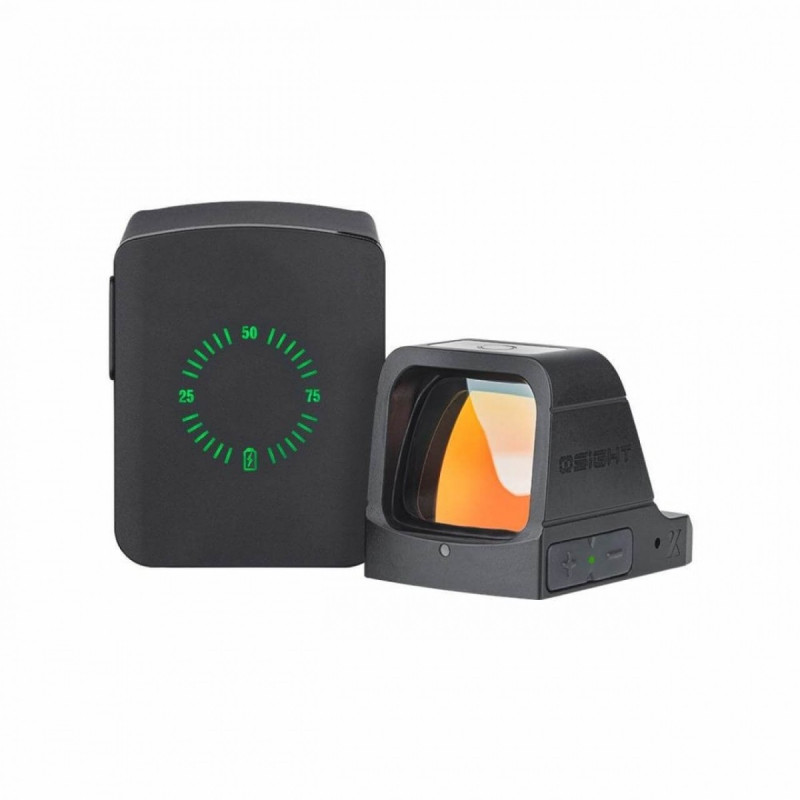

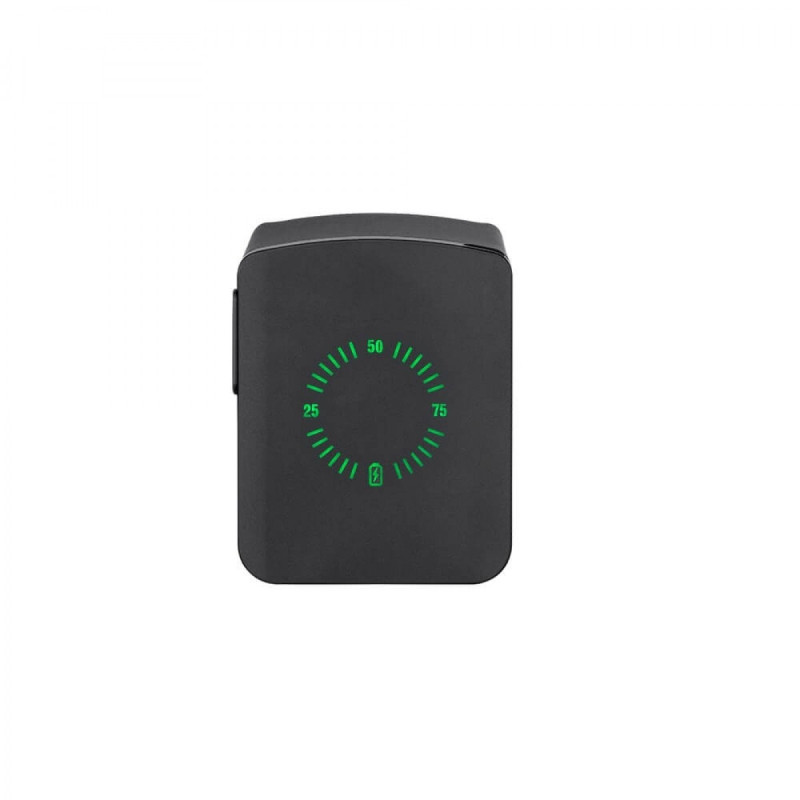

Osight X is an advanced collimator with an innovative magnetic charging cap, which has an integrated battery indicator that shows the charge level of both the collimator and the cap base in real time. The magnetic cap can fully charge Osight X up to three times, and one charging cycle takes just 2.5 hours.

A fully sealed optical system ensures excellent protection from environmental factors. An aspherical lens guarantees a distortion-free and parallax-free image - meaning extremely sharp and precise aiming.

The collimator has a multifunctional sight mode: 3 MOA dot and 32 MOA circle. You can select a dot, circle, or both together, depending on the situation. The clear, bright sight ensures a modern and effective aiming experience - perfect for outdoor use, training or at night.

By adopting the industry-standard mounting footprint (Ruggedized Miniature Reflex, 407c/507c footprint) for optic cuts, the Osight X ensures versatility and ease of integration.

The collimator body is made of OAL™ material, which is extremely strong and almost as light as 7075 aluminum. The level III anodized coating provides high resistance to impact and corrosion, and the collimator itself has withstood over 100,000 rounds of testing, maintaining accuracy and reliability throughout the entire testing.

Technical characteristics:

• Charging cover material: AL6061 aluminum + PC (polycarbonate);
• Charging type: Collimator magnetic charging, charging cover: USB-C charging;

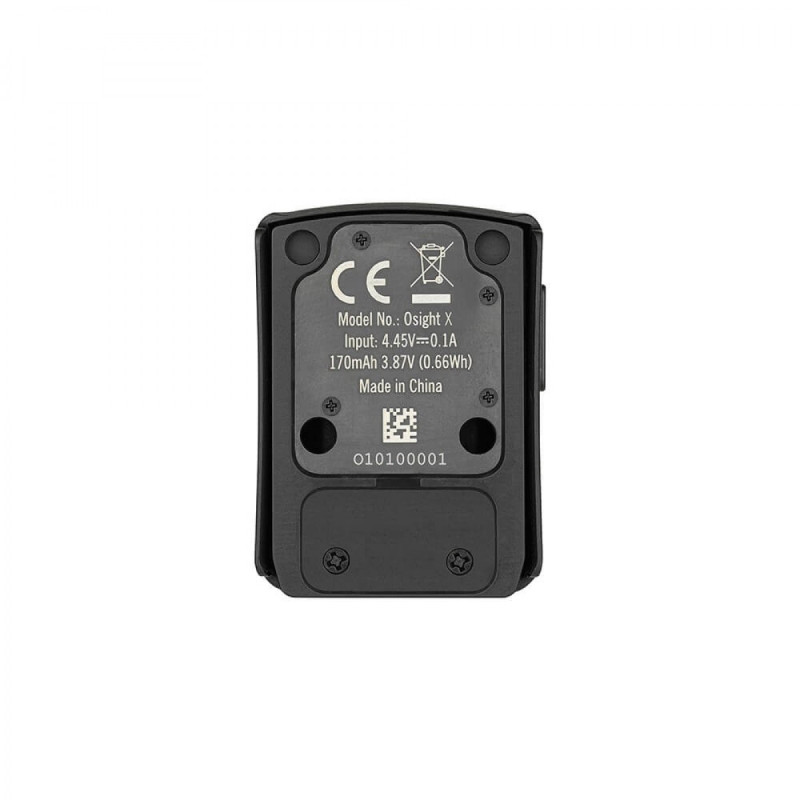

• Power supply: Collimator connected 170 mAh rechargeable lithium polymer battery, charging cover connected 800 mAh rechargeable lithium polymer battery;
• Maximum operating time: Up to 57,000 hours (using only spot mode, 3 brightness levels);
• Eye distance: Unlimited;
• Brightness settings: 10 day + 2 night vision modes;
• Light wavelength: 660 nm;
• Reticle color: Red;
• Magnification: 1x (no zoom);
• Be parallax: Yes;
• Lens size: 24 × 21.5 mm;
• Windage and elevation correction range: ± 45 MOA;
• Adjustment: 1 MOA per turn;

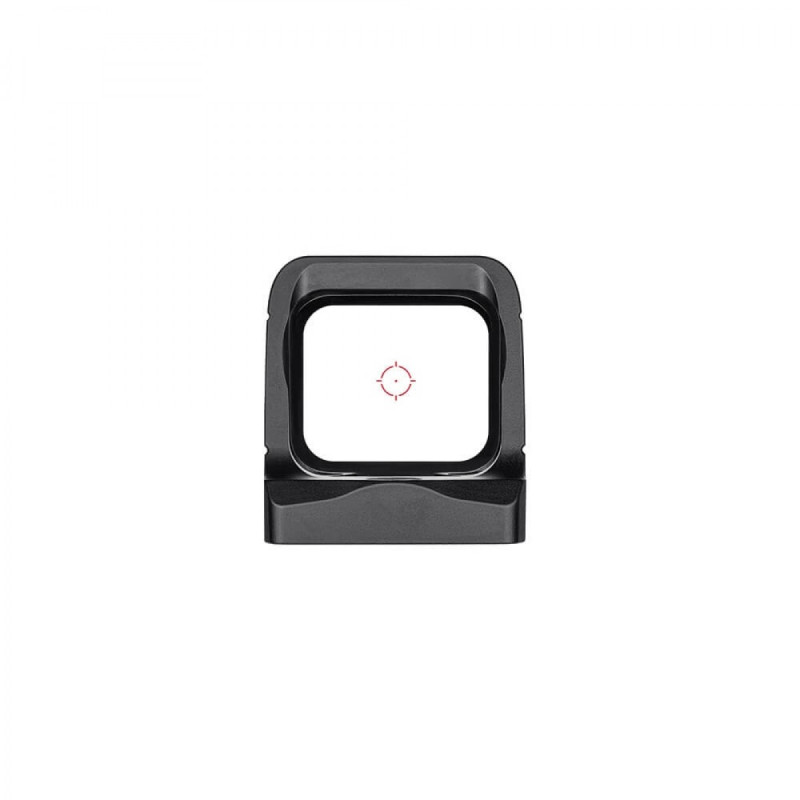

• Reticle type: 3 MOA dot + 32 MOA circle;
• Multi-layer coating: Yes;
• Light sensor technology: Yes;
• Motion sensor function: Yes;
• Water resistance: Collimator IPX6, charging cap: IPX4;
• Weight: Collimator 46 g (with battery), charging cap: 50 g;
• Application: For competitions, training, self-defense, home security, service;
• Dimensions: Collimator 45 × 30 × 33 mm, charging cap: 47 × 35 × 44 mm.

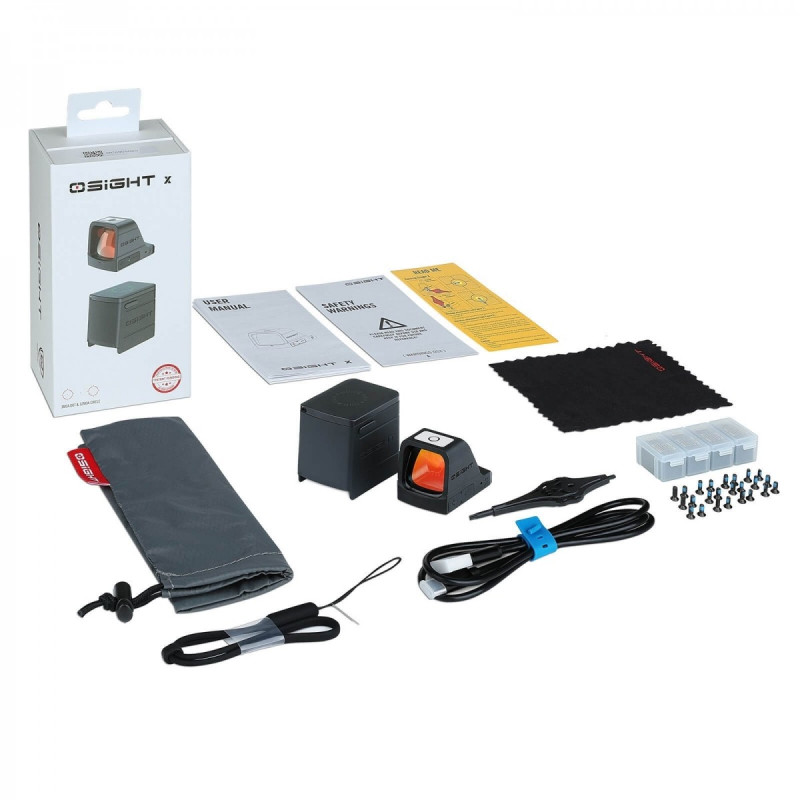

In the kit:

• Collimator × 1;
• Charging cap × 1;
• Adjustment tool × 1;
• USB-C charging cable × 1;
• Osight X screw set × 1;
• Cleaning cloth × 1;
• Zeroing instruction card × 1;
• ​Case × 1;
• User manual.
