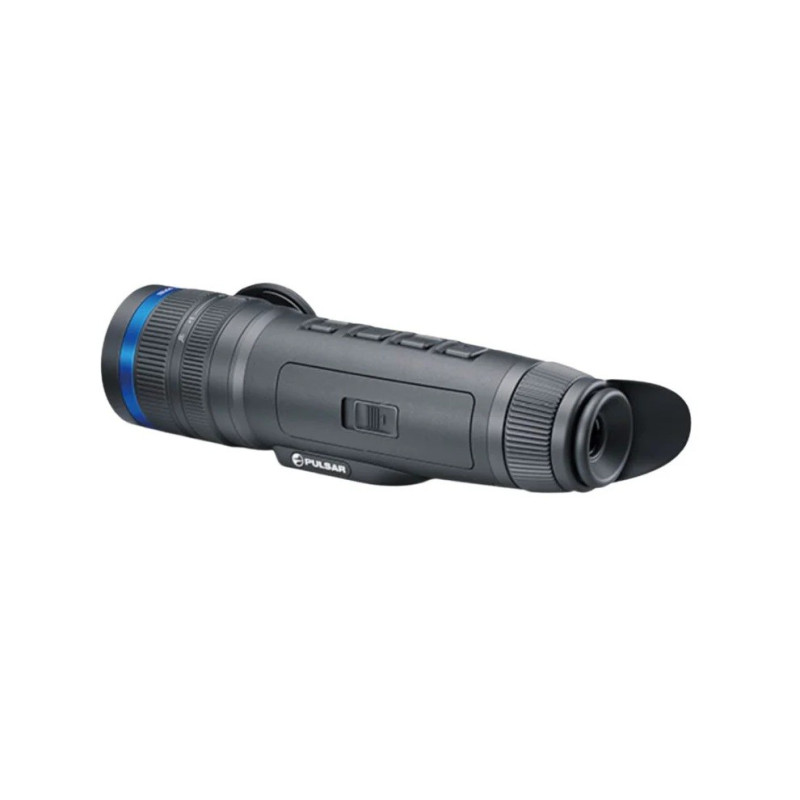

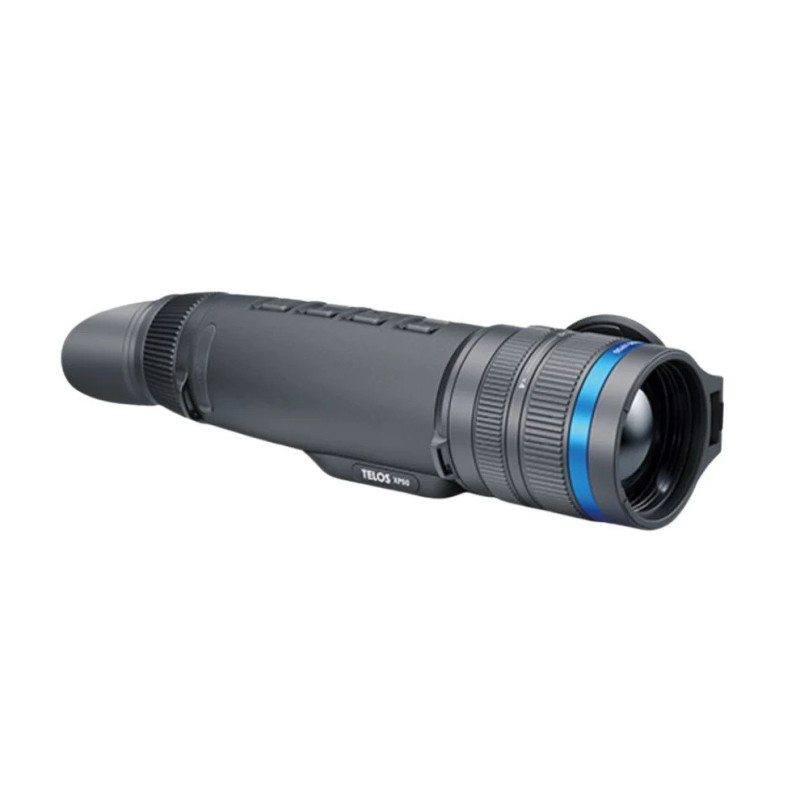

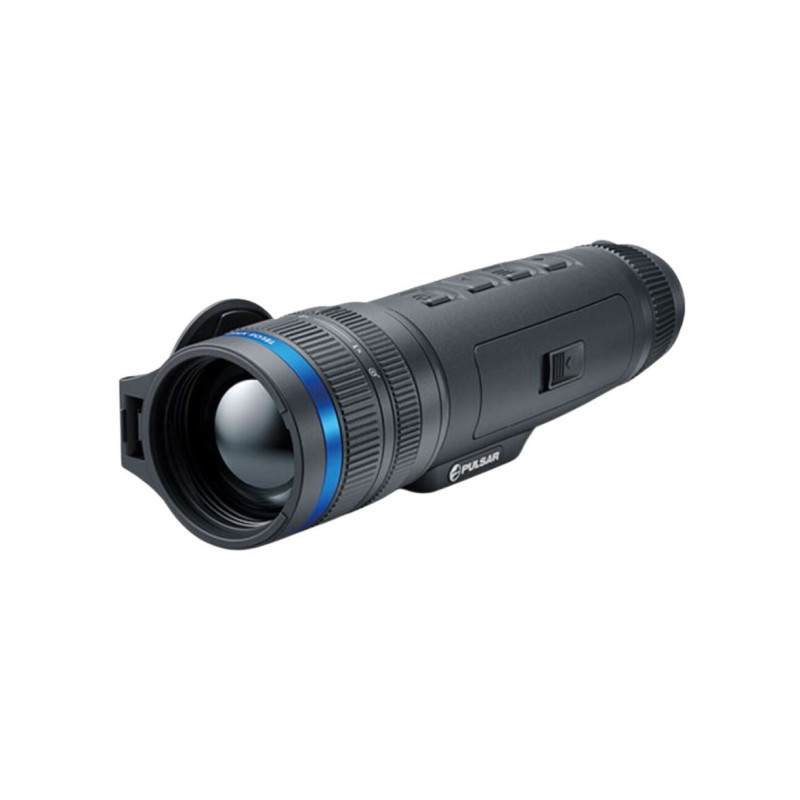

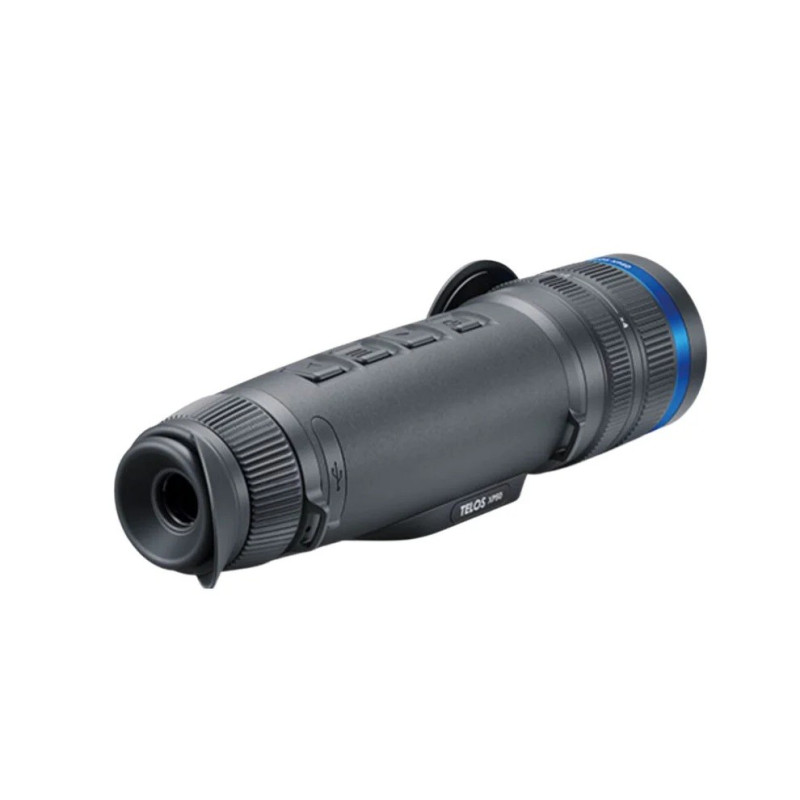

Thermal Imaging Monocular PULSAR Telos XP50

Upgradable device

The components and software of devices in high-tech industries are constantly updated. Thermal imaging is no exception. User needs and preferences change over time. In addition, as users gain experience, they develop their own requirements for instrument capabilities and performance. "Telos thermal monoculars are designed with both technology and user needs in mind. "The Telos range is the first in the thermal imaging market to offer the possibility of technical upgrades according to customer needs. As a Telos owner, you will have the flexibility to improve it in the future. Install more powerful optics, a higher resolution sensor or display, more efficient and functional electronics, or add a laser rangefinder and additional optical channels to your thermal imaging camera, so that you always have the latest equipment at a fraction of the cost of upgrades.

Ultra-sensitive thermal sensor

The ultra-sensitive thermal imaging sensor with a NETD <18 mK provides impressive thermal image quality and ideal recognition of fine details even in the most severe weather conditions with low thermal contrast. The smallest temperature differences will be clearly visible in rain, fog or on cold mornings - the most challenging conditions for a thermal imager.

Advanced Pulsar Image Boost technology

"Pulsar Image Boost gives Telos thermal images the highest level of detail, clarity and contrast thanks to a set of original image processing algorithms. "Telos thermal monoculars use a wide range of halftones to render complex scenes with evenly radiating, low-contrast objects such as sky, grass and water surfaces. The software achieves detail and clarity of objects at different distances, ensuring that the thermal image is highly informative. By manually increasing the sensitivity of the thermal imaging sensor, you can improve the quality of the animal detection in case of degraded viewing conditions. A smoothing filter and a wide range of brightness and contrast settings allow you to maintain comfort even when observing for long periods of time.

Zoom control with lens ring

"The Telos display can be perfectly adjusted with one hand - the focus and continuous zoom rings are individually mounted on the lens in the classic design of professional camera lenses. The consistent placement of the rings allows you to enjoy a clear image at the desired zoom quickly and with minimal effort.

Precise laser measurements up to 1000 metres

Knowing the exact distance to the target is essential for making the right decision. The built-in laser rangefinder with a range of up to 1 kilometre allows you to measure distances in two modes: single measurements or continuous scanning with a precision of ± 1 metre for fast and accurate situational awareness.

Designed for the toughest conditions

"Telos thermal imaging instruments are designed for use in the harshest outdoor environments at any temperature from -25 to +40 °C. The instrument is waterproof even when fully submerged. The composite, polymer rubber-coated housing offers outstanding performance. "The design of Telos thermal imaging devices with no protruding parts and the anatomically optimal shape of the housing contribute to safety and comfort during long periods of use.

Replaceable battery with direct plug and fast wireless charging capabilities

The all-new LPS 7i lithium-ion quick-change battery provides more than 8 hours of battery life. The LPS 7i doesn't need any special chargers - just plug it into any network adapter via the USB-C port and charge it using the Power Delivery fast charging protocol in no time. In addition, the LPS 7i battery supports wireless charging.

Ergonomic, non-slip, rubber-coated body

The rubber-coated housing helps you to hold the thermal imaging device safely in your hand, whether it is dry or raining. The housing is exceptionally hard-wearing and can withstand a wide range of temperatures, as well as working in dusty or humid environments, and protects the instrument from drops. In addition, the housing is easy to clean and maintains its appearance for a long time.

Adaptable for right- and left-handed users

The vertical and symmetrical layout of the Telos buttons allows two-handed use with the same level of comfort - the buttons are arranged in a row on the top panel and the lens rings are used for focusing and zooming. The palm strap is attached to movable rings that lock into position, ensuring that the instrument can be quickly adapted to left or right-handed operation.

User interface adaptable to the user's needs

"Telos thermal monoculars offer advanced functionality, but it is up to the user to decide which functions are most important, by setting the order of the menu items.

User mode

Use the brightness and contrast settings to increase the amount of detail and the information value of the image under specific viewing conditions. User mode saves the selected brightness and contrast settings in the instrument's memory, ensuring optimum image quality the next time you use the thermal imager - no further changes are required.

Specification:

Sensor: 640×480 pix.

Lens: F50/1.0

Magnification: 2.5 - 10 (x4 digital zoom)

Field of view (HxV), degrees 12.4×9.3 / 21.8×16.3

Detection range, m: 1800

Sensor:

Type: uncooled

Resolution, pixels: 640×480

Pixel pitch, µm: 17

NETD, mK: <18

Frame rate, Hz: 50

Display:

Type: AMOLED HD

Resolution, pixels: 1024×768

Video Recorder:

Video/Photo Resolution, pixel: 1024×768

Video/Photo Format: mp4/.jpg

Built-in Memory, GB: 16

5+ hours of video or ˃100 000 pictures

Wi-Fi:

802.11 b/g

Frequency, GHz: 2.4 / 5 GHz

Ambient Characteristics:

Protection Degree, IP Code (IEC60529): IPХ7

Operating Temperature Range, °C: -25 - +40

Power Supply:

Output Voltage, V: 3.0 - 4.2

Battery Type: LPS 7i Li-Ion Battery Pack

Capacity, mAh: 6400

Weight and Size:

Body material: rubber reinforced plastic

Dimensions, mm: 238x72x90

Weight, kg: 0.72
