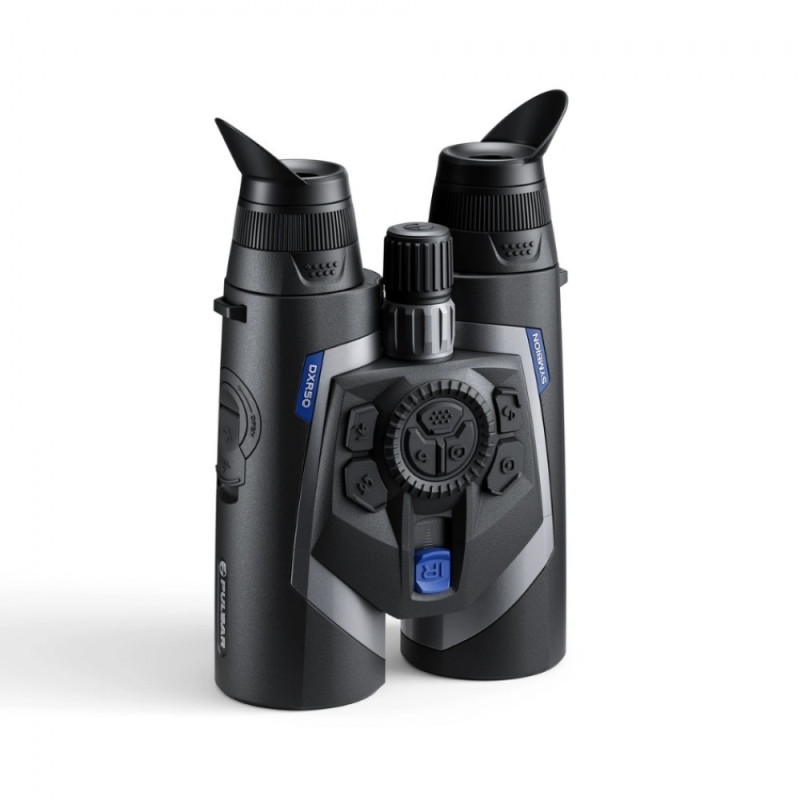

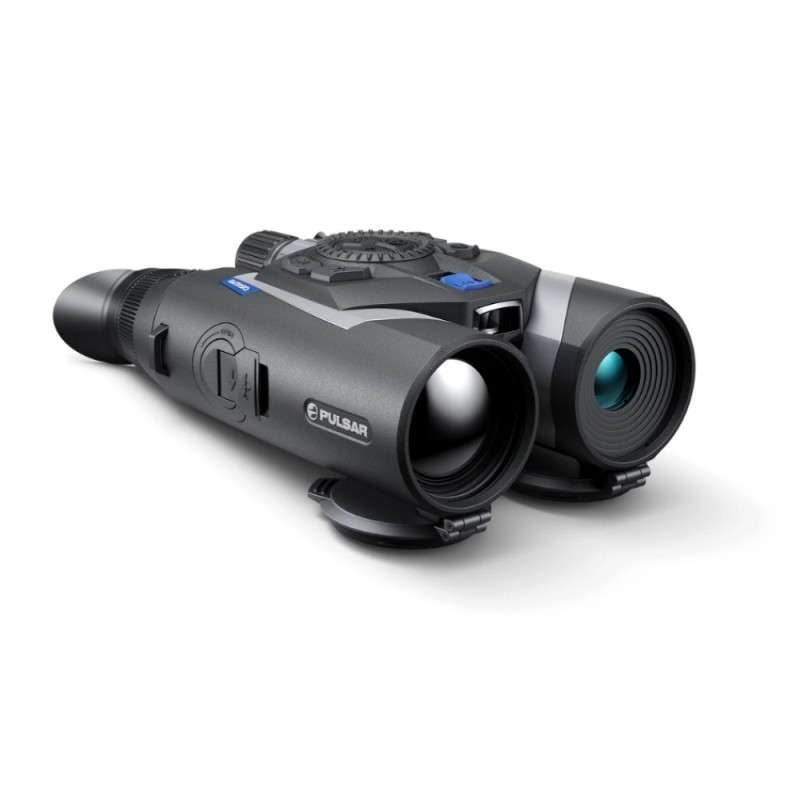

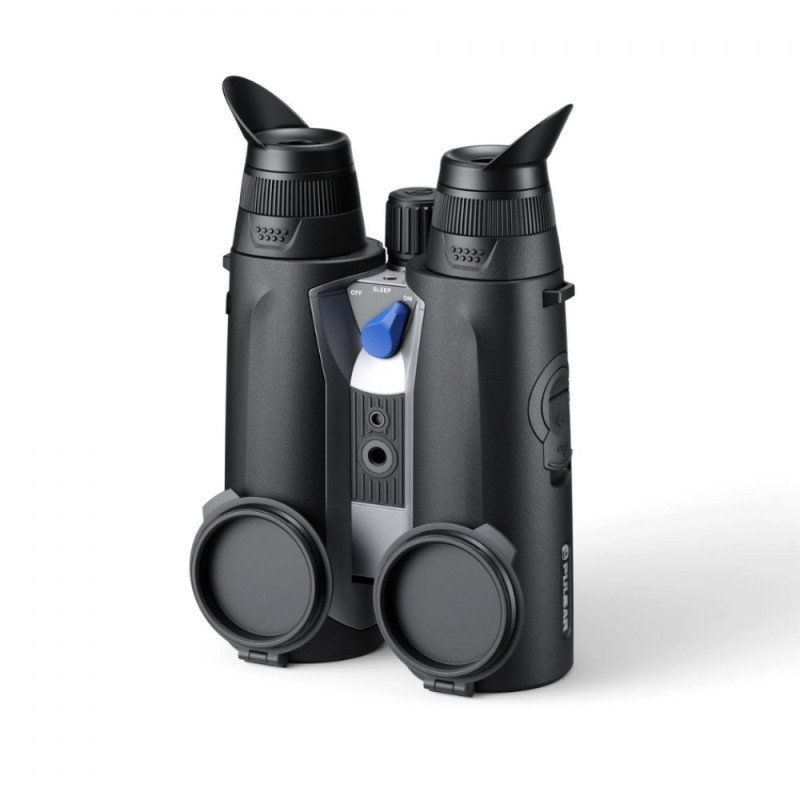

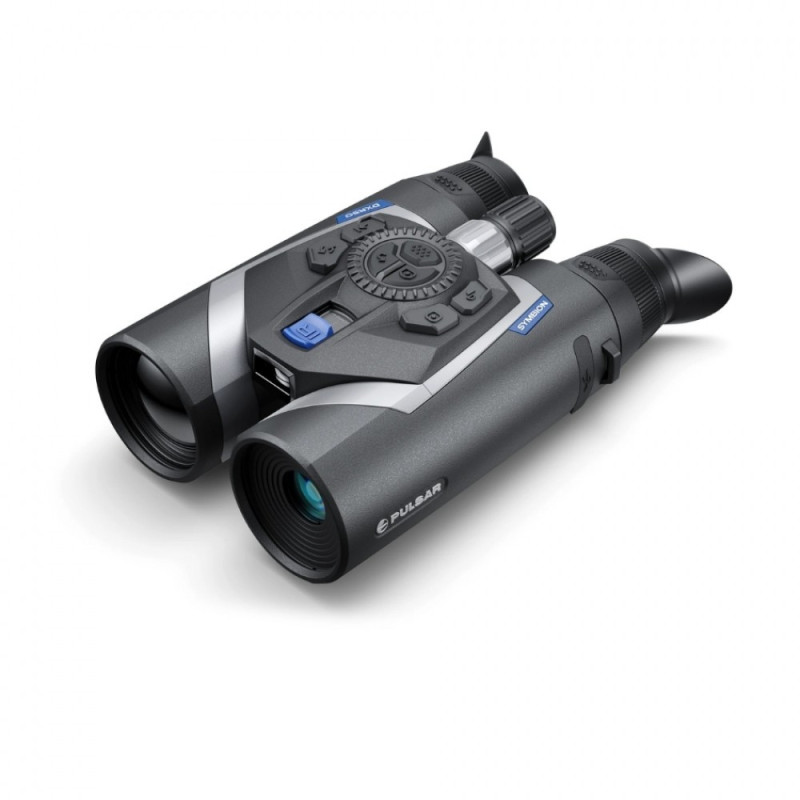

Thermal Binoculars PULSAR Symbion LRF DXR50

The Pulsar Symbion DXR50 is designed for users who prioritise long-range thermal detection with higher base magnification and a balanced field of view. Featuring a 640×480, 12µm thermal sensor, the DXR50 delivers crisp thermal detail while maintaining excellent image contrast in varied weather conditions.

The multispectral design allows seamless switching between thermal imaging and 4K full-colour digital viewing, making the DXR50 suitable for both daytime and night-time use. Combined Picture-in-Picture modes enhance target identification, while built-in image stabilisation ensures steady viewing during extended observation sessions.

Main specifications

Sensor: Thermal 640x480/12µm | Digital 3840x2160

Objective lens: Thermal F50/1.0 | Digital F50/1.8

Magnification, x: Thermal 4 – 32x | Digital 6.5 – 26x

FOV (HxV), degrees: Thermal 8.8° | Digital 5.8°

FOV (HxV), m@100m: Thermal 15.4 m | Digital 10.2 m

Diopter Adjustment, D: -5 / +5

Detection range: Thermal 2300 m

Infrared Illuminator

Emitter: LED

IR wavelength, nm:  850

Sensor

Type: Thermal uncooled, microbolometric
Digital 4K CMOS

Resolution, pixels: Thermal 640x480/12µm | Digital 3840x2160

Sensor NETD, mK:< 35

System NETD, mK:< 18

Frame rate, Hz: 50

Optics

Objective lens: Thermal F50/1.0 | Digital F50/1.8

Magnification, x: Thermal 4 – 32x | Digital 6.5 – 26x

FOV (HxV), degrees: Thermal 8.8° | Digital 5.8°

FOV (HxV), m@100m: Thermal 15.4 m | Digital 10.2 m

Diopter Adjustment, D: -5 / +5

Interpupillary distance adjustment, mm: 62.5 - 74

Eye relief, mm: 13

Display

Type: MicroLED (AMOLED)

Resolution, pixels: 1920x1080

Laser rangefinder

Max. measuring range, m: 1500 m.

Measurement accuracy, m: ± 1 m.

Safety class for laser equipment according to IEC 60825-1:2014: 1

Wavelength, nm: 905

Video recorder

Video / photo resultion, pixel: 1440x1080

Video / photo format: .mp4 / .jpg

Build-in memory, GB: 64

WI-FI

Wireless protocol: Wi-Fi

Wireless standard: IEEE 802.11 b/g/n/ac (WPA)

Frequency, Ghz: 2.4 / 5

Environmental characteristics

Degree of protection IP code (IEC60529): IP67 (waterproof)

Operating temperature range, °С: -25 – +50

Connections and compatibilities

Mount type: 1/4" socket
Tripod adapter with ARCA-SWISS mount support

Supported application: Steam Vision 2, Steam Vision Ballistics

Weight & size

Body material: Magnesium alloy

Dimensions, mm: 207x132x72

Weight, kg: 1 (battery included)

SKU: 77458
