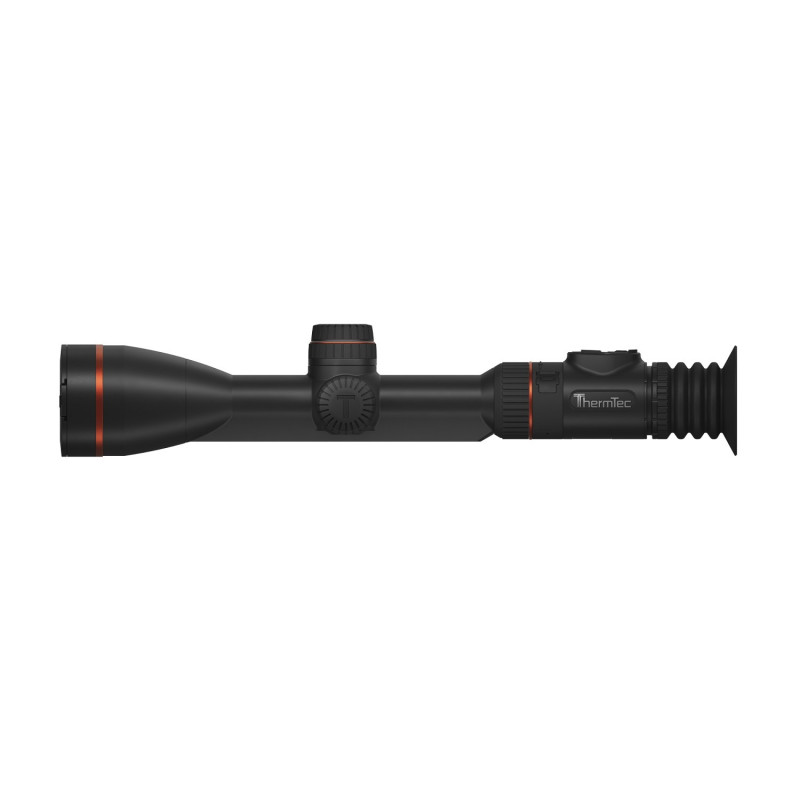

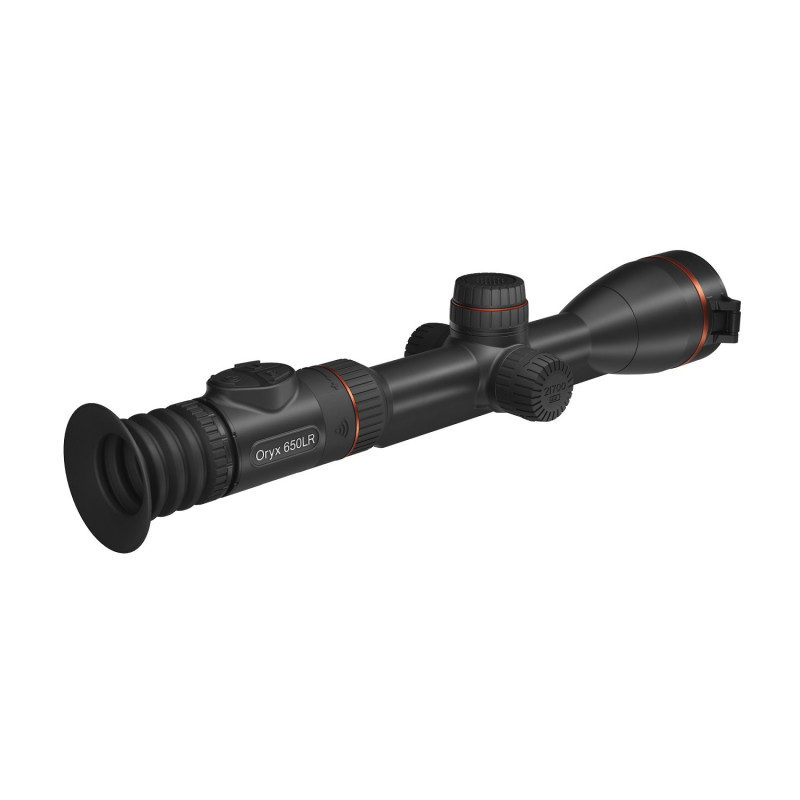

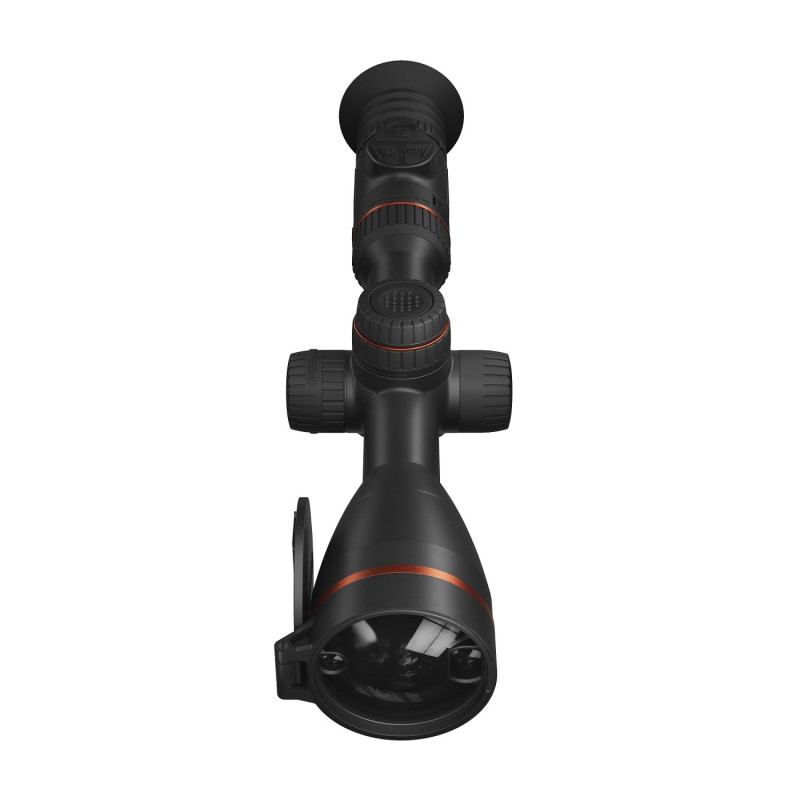

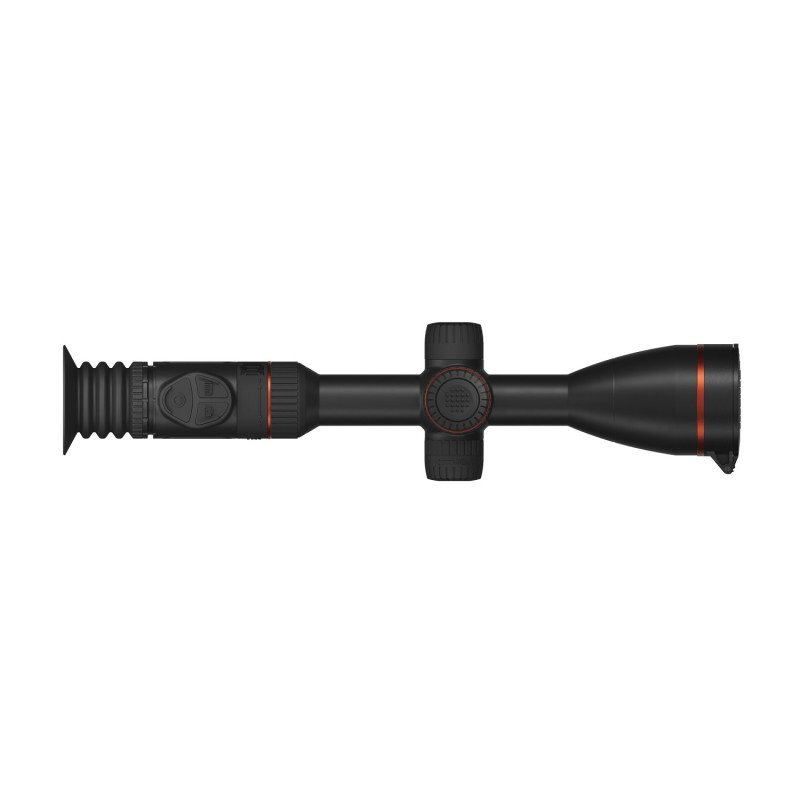

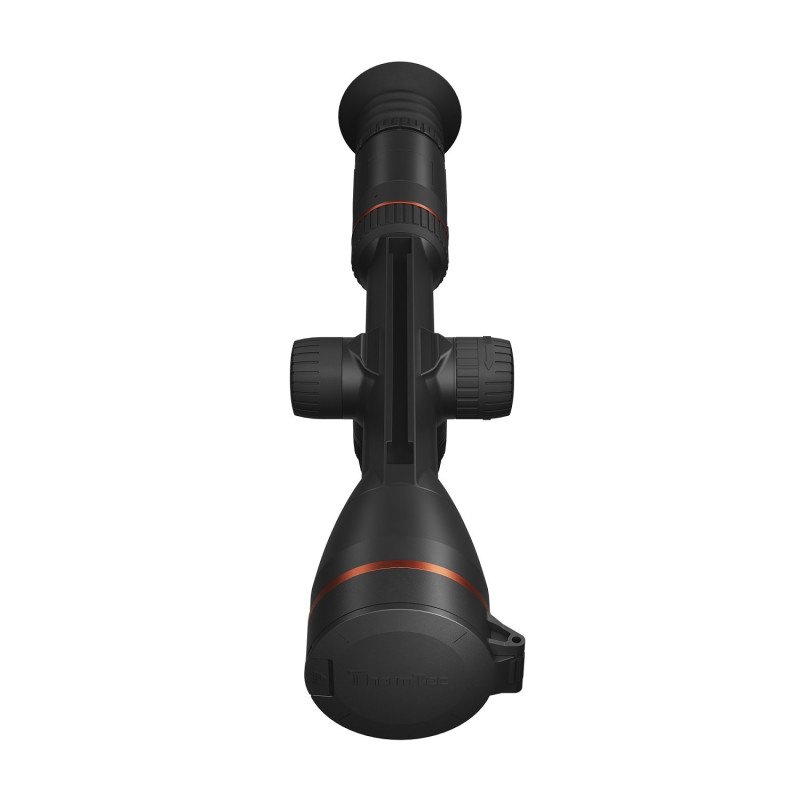

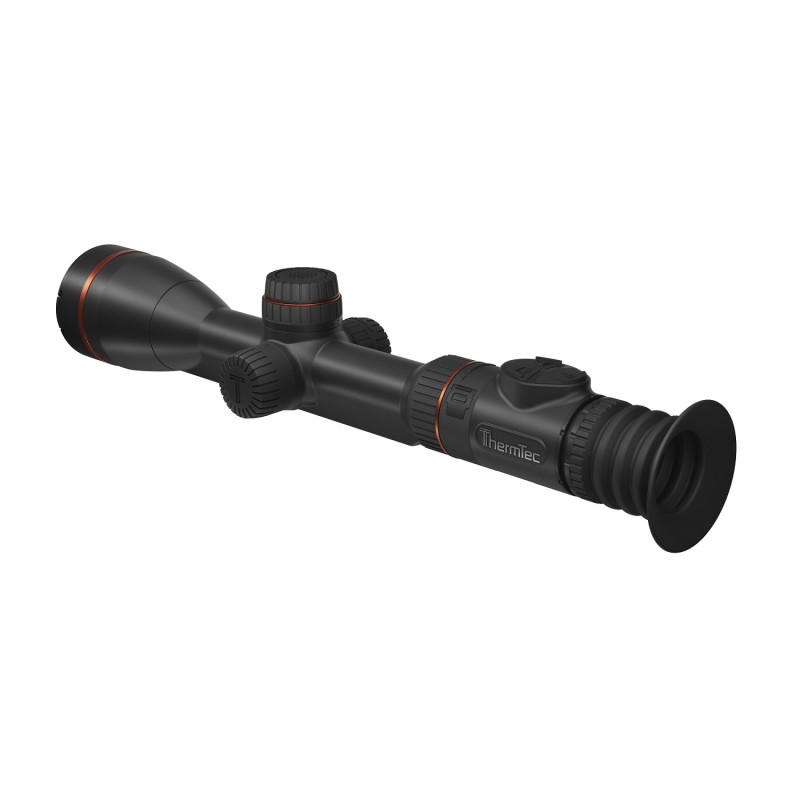

ThermTec Oryx 650LR

ORYX-LR 650 Thermal Scope – Long-Range Precision and Clarity. Designed for maximum performance at extended distances, the ORYX-LR 650 combines an ultra-sensitive NETD ≤15 mK sensor with a vivid OLED display, ensuring precise observation even in challenging conditions. The integrated ThermTec AutoSight System (TASS), built-in laser rangefinder, and stable Rail Mount system deliver exceptional accuracy and reliability—exactly what demanding hunters need.

The high-sensitivity thermal sensor detects even the smallest temperature differences, keeping the image sharp and detailed even in poor weather conditions. The premium 2560×2560, 1.03” OLED display provides outstanding clarity while reducing eye fatigue during prolonged use.

The built-in laser rangefinder (LRF) allows accurate distance measurement up to 1200 m, all while maintaining a sleek and compact design. The convenient central focus system and ergonomic zoom control ensure intuitive operation, even in demanding situations.

Key Features:

• NETD ≤15 mK – ultra-sensitive thermal sensor
• 2560×2560 OLED display – exceptional detail
• Built-in laser rangefinder up to 1200 m
• Automatic Rail Mount system – fast and precise installation
• Up to 8 hours of runtime with replaceable 21700 battery
• Automatic return to base magnification after recoil
• AI shutterless image calibration – smooth, uninterrupted visuals
• Integrated ballistic calculator for improved shooting accuracy

Technical Specifications:

• Type: Uncooled
• Resolution: 640×512
• Pixel pitch: 12 µm
• NETD: ≤15 mK
• Spectral range: 8–14 µm
• Frame rate: 50 Hz
• Detection range: up to 2600 m
• Objective lens: 50 mm, F0.9
• Field of view: 8.8° × 7.0° (15.4 × 12.3 m @ 100 m)
• Optical magnification: 3.7×
• Digital zoom: 1×–4×
• Eye relief: 60 mm
• Exit pupil: 6 mm
• Diopter: ±5D
• Reticles: 7 (6 colors)
• Display: 2560×2560, 1.03” OLED
• Color palettes: 6

Functions:

• Laser rangefinding: up to 1200 m
• Ballistic calculator: Yes
• Image calibration: Manual / Auto
• Photo and video recording: Yes
• Internal memory: 64 GB
• Wi-Fi (Hotspot): Yes
• USB-C: Data transfer / Charging

Housing & Battery:

• Battery: Replaceable 21700 (6000 mAh)
• Battery life: up to 8 hours
• Operating temperature: -20°C to +50°C
• Protection rating: IP67
• Weight: ~1100 g
• Dimensions: 397 × 87 × 74 mm
