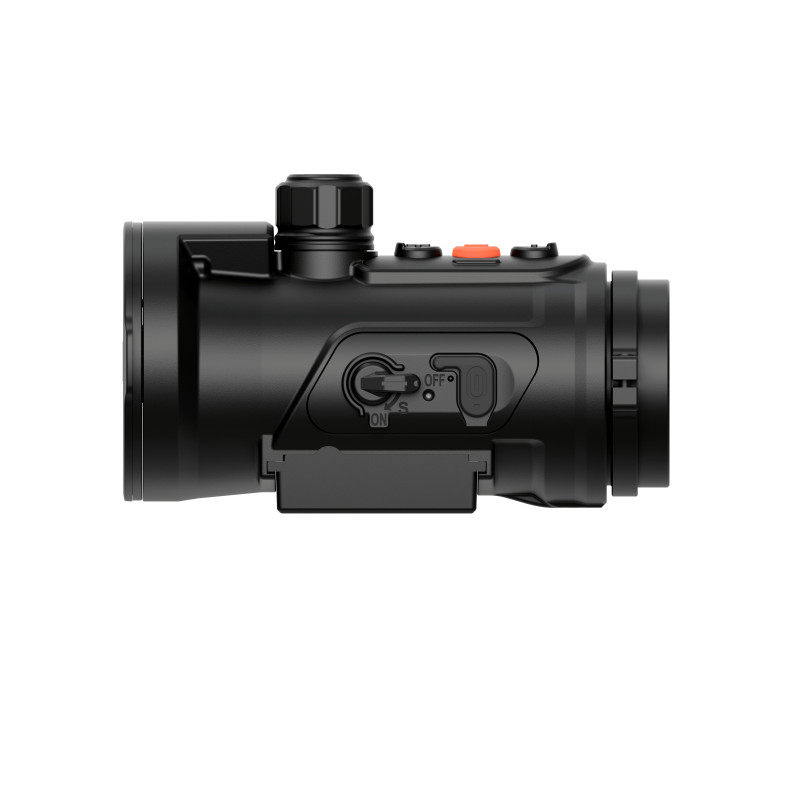

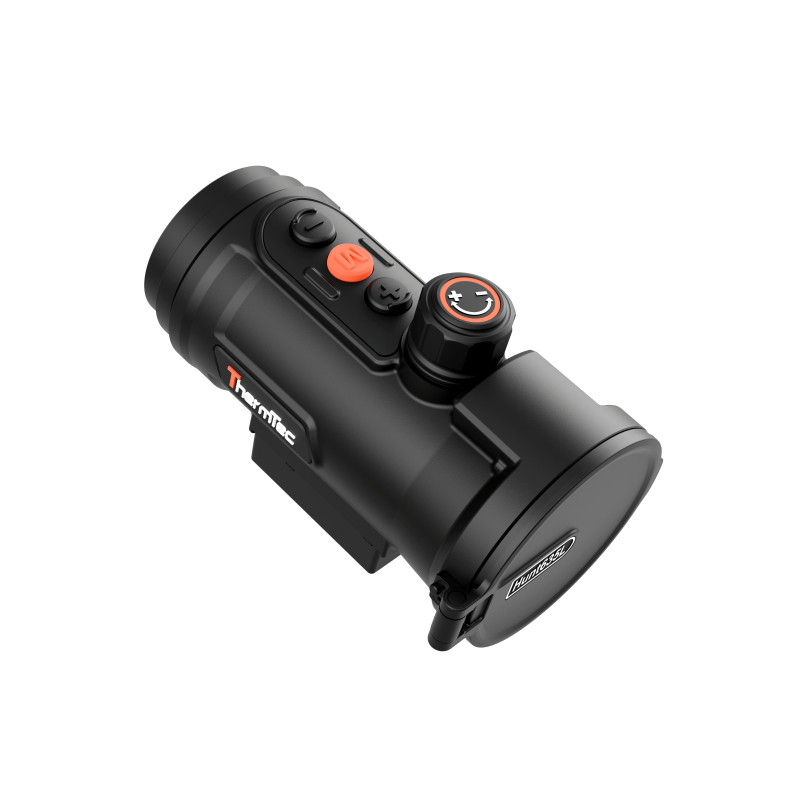

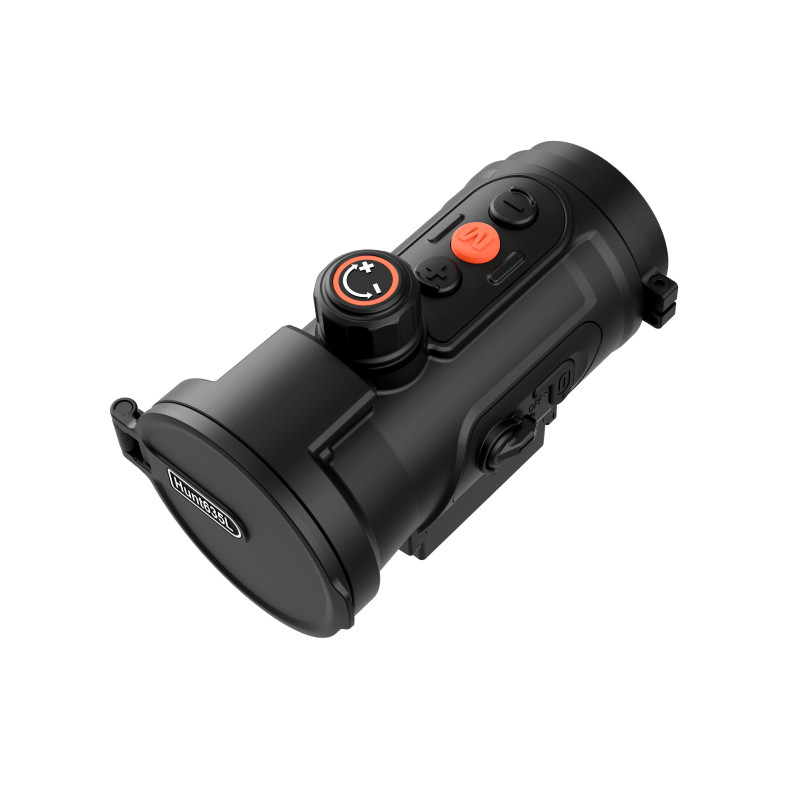

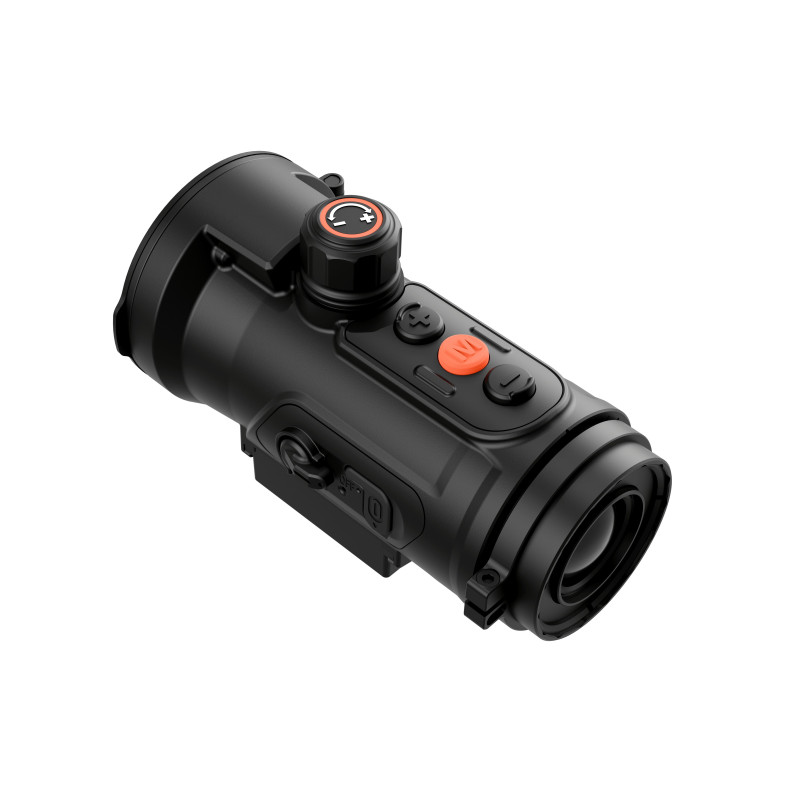

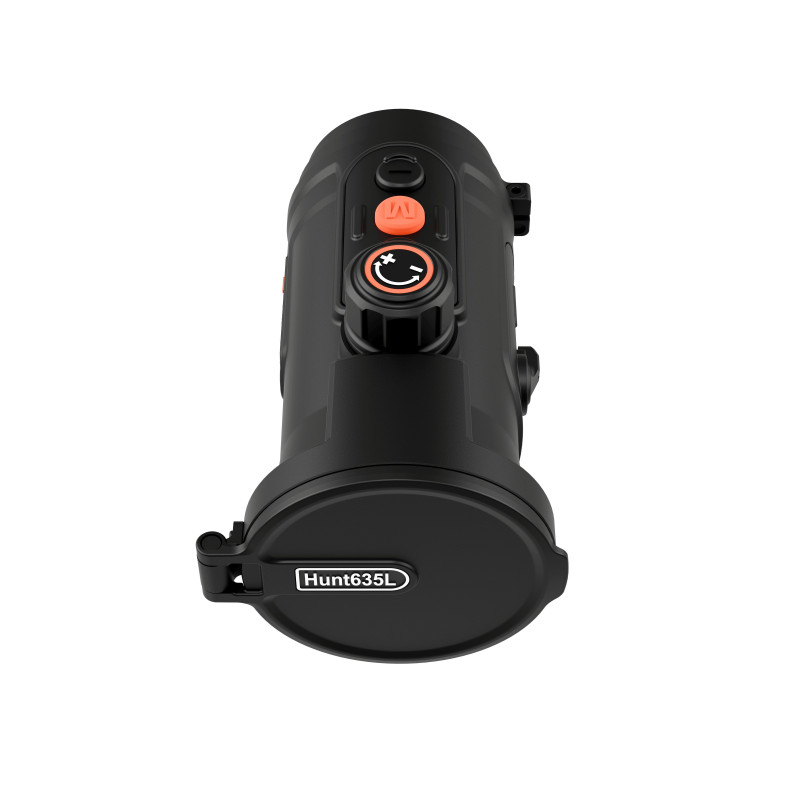

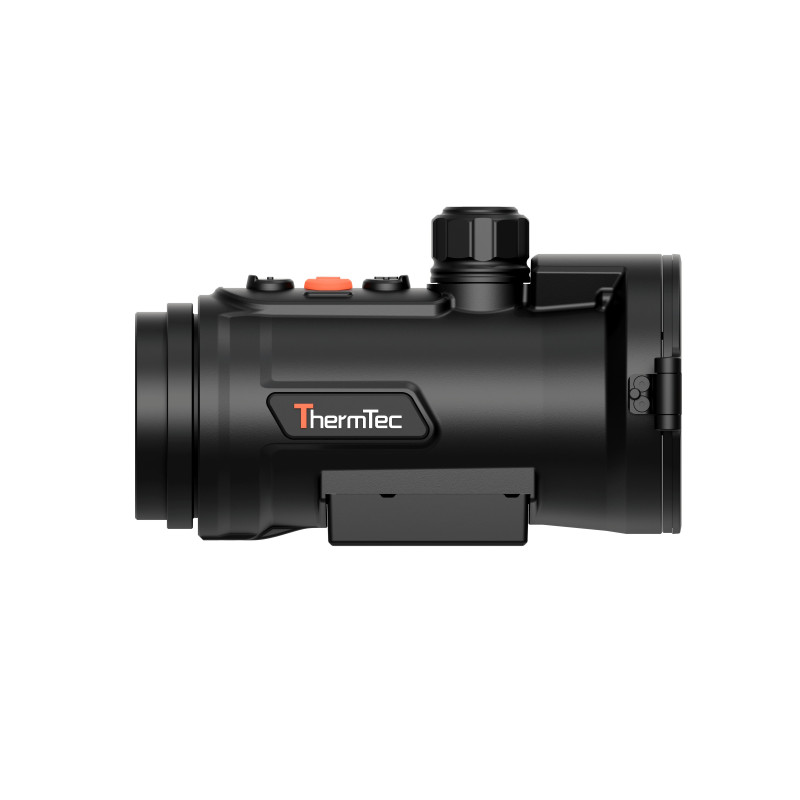

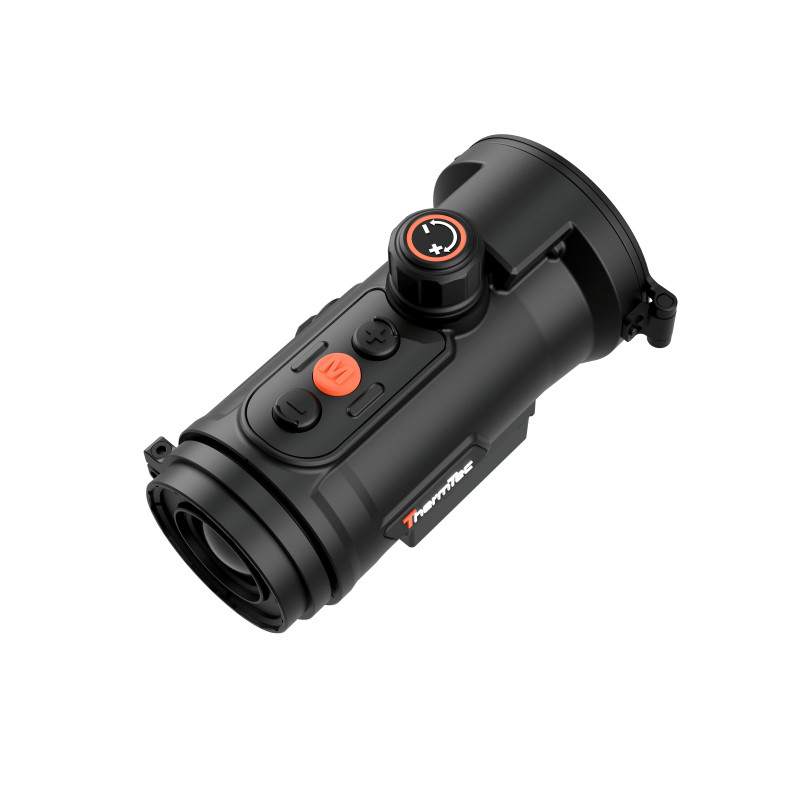

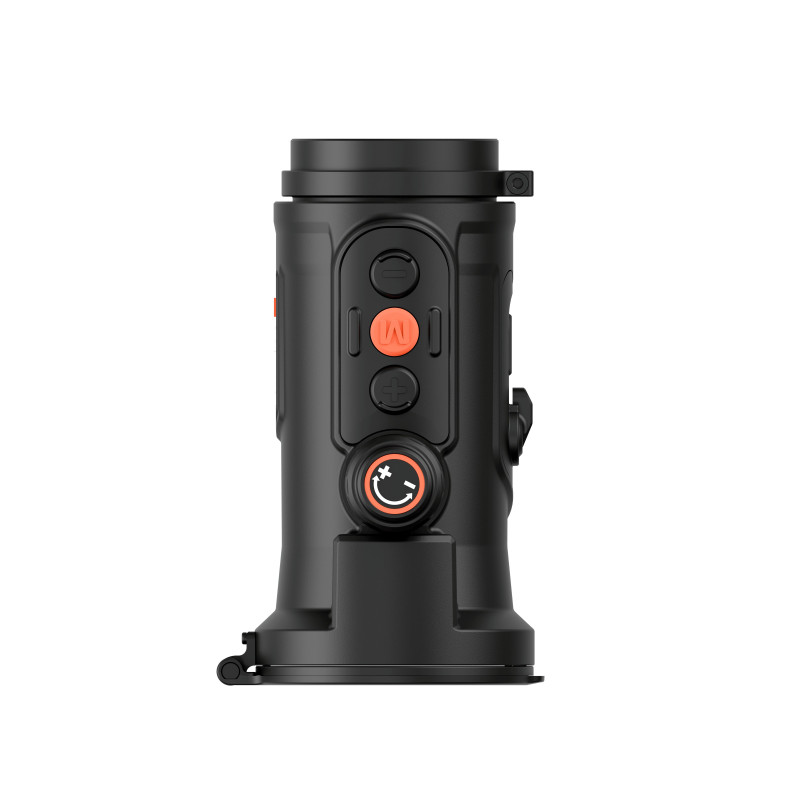

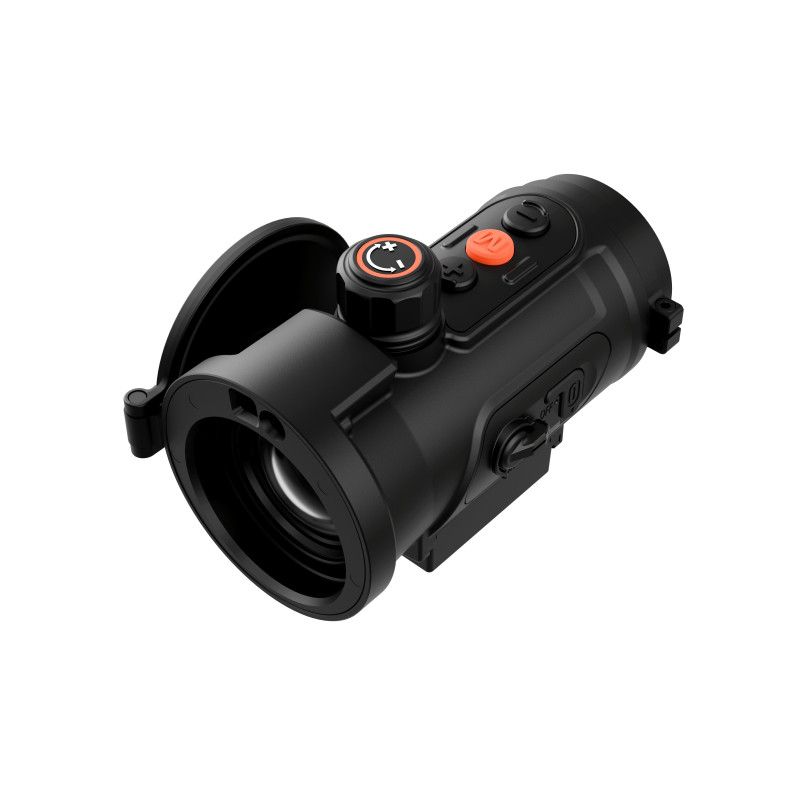

Thermal Clip-on ThermTec Hunt 635L

The new ThermTec HUNT 635L thermal imaging clip-on is designed for hunters looking for a compact, lightweight device with excellent image quality. It features a 640×512 resolution, 12 µm thermal sensor with NETD ≤15 mK, providing a detailed thermal image even in challenging weather conditions.

The 35 mm F1.0 lens provides a 12.5° × 10° field of view, allowing comfortable observation of the surroundings and quick detection of heat sources. The detection range reaches up to 1800 metres.

The integrated laser rangefinder (LRF) allows accurate distance measurement up to 1000 metres, with an accuracy of ±1 metre.

The HUNT 635L features a high-resolution 1920×1080 OLED display, providing a clear and detailed image. The clip-on can be used with daytime optical scopes with magnification up to 16×.

The compact magnesium alloy housing and low weight of just 463 g help maintain good weapon balance. The device is resistant to recoil up to 6000 J and features IP67 protection against water and dust.

The integrated AI image calibration technology helps maintain a stable image and reduces the need for frequent manual calibration.

Key Features:

• 640×512 thermal imaging sensor
• 12 µm pixel size
• NETD ≤15 mK
• 35 mm F1.0 lens
• Detection range up to 1800 m
• Integrated LRF up to 1000 m
• LRF accuracy ±1 m
• 1920×1080 OLED display
• Recommended daytime scope magnification: 1–16×
• AI image calibration technology
• 2-in-1 – clip-on and monocular modes
• Wireless remote control
• Recoil-activated video recording
• 64 GB internal memory
• Wi-Fi and Bluetooth
• Recoil resistance up to 6000 J
• IP67 protection
• Lightweight magnesium alloy housing
• Weight only 463 g

Specifications:

• Type: Uncooled VOx
• Sensor resolution: 640×512
• Pixel size: 12 µm
• NETD: ≤15 mK
• Spectral range: 8–14 µm
• Frame rate: 50 Hz
• Detection range: Up to 1800 m
• Lens: 35 mm / F1.0
• Field of view: 12.5° × 10°
• Field of view at 100 m: Approx. 22 m
• Recommended daytime scope magnification: 1–16×
• Digital zoom: 1× / 2× / 3× / 4×
• Display: OLED
• Display resolution: 1920×1080
• Display size: 0.39"
• LRF: Yes
• LRF range: Up to 1000 m
• LRF accuracy: ±1 m
• Ballistic calculator: Yes
• Colour palettes: 6
• Internal memory: 64 GB
• Photo / video recording: Yes
• RAV recording: Yes
• Wi-Fi: Yes
• Bluetooth: Yes
• Battery: Replaceable
• Operating time: Up to 5 hours
• Recoil resistance: Up to 6000 J
• Housing: Magnesium alloy
• Adapter thread: M52×0.75
• Protection rating: IP67
• Operating temperature: -20°C to +50°C
• Weight with battery: 463 g
• Dimensions: 137 × 82 × 86 mm
