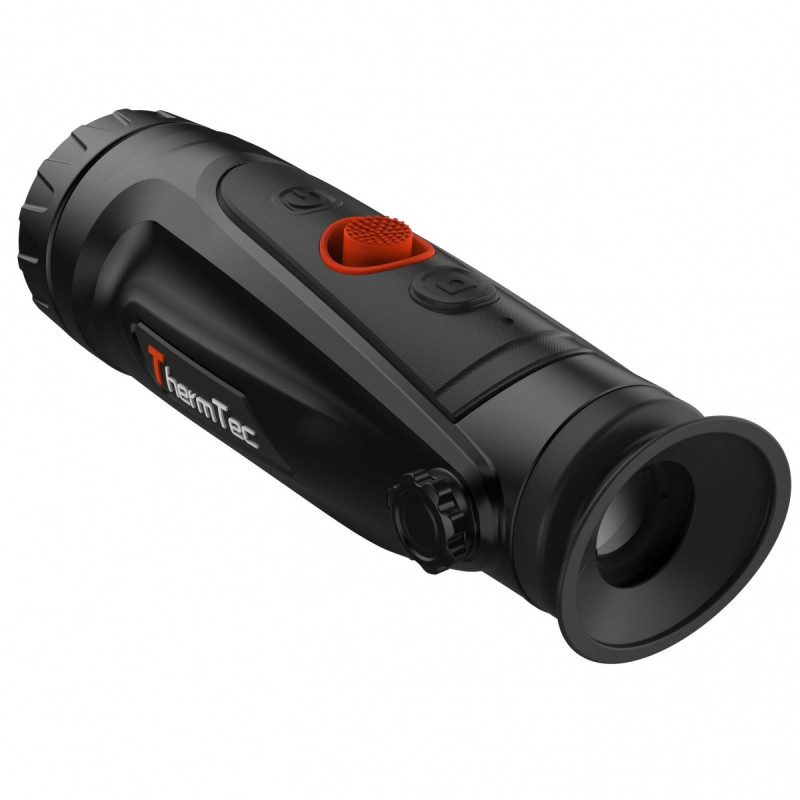

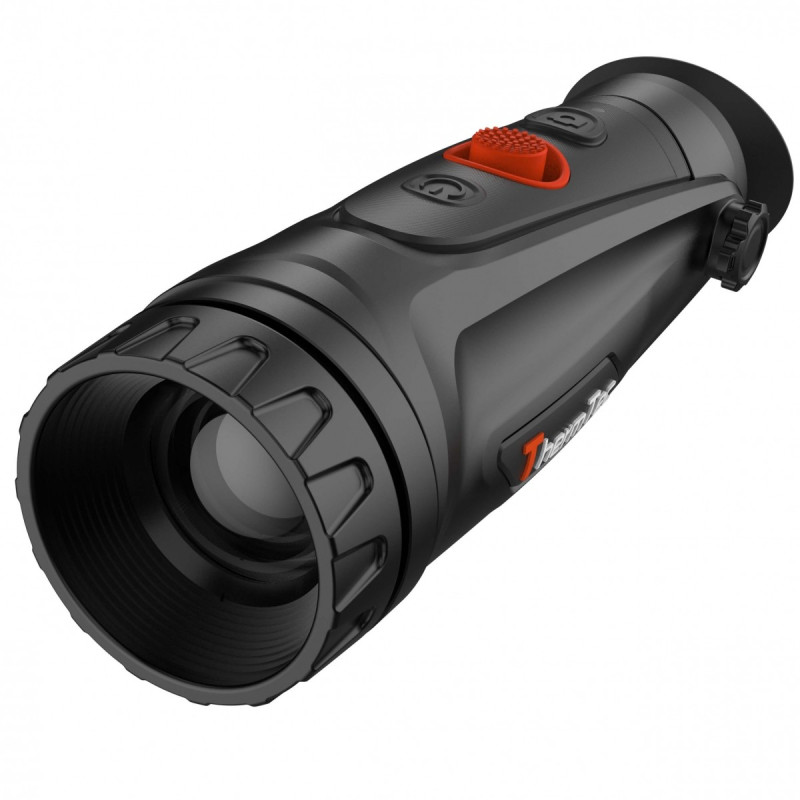

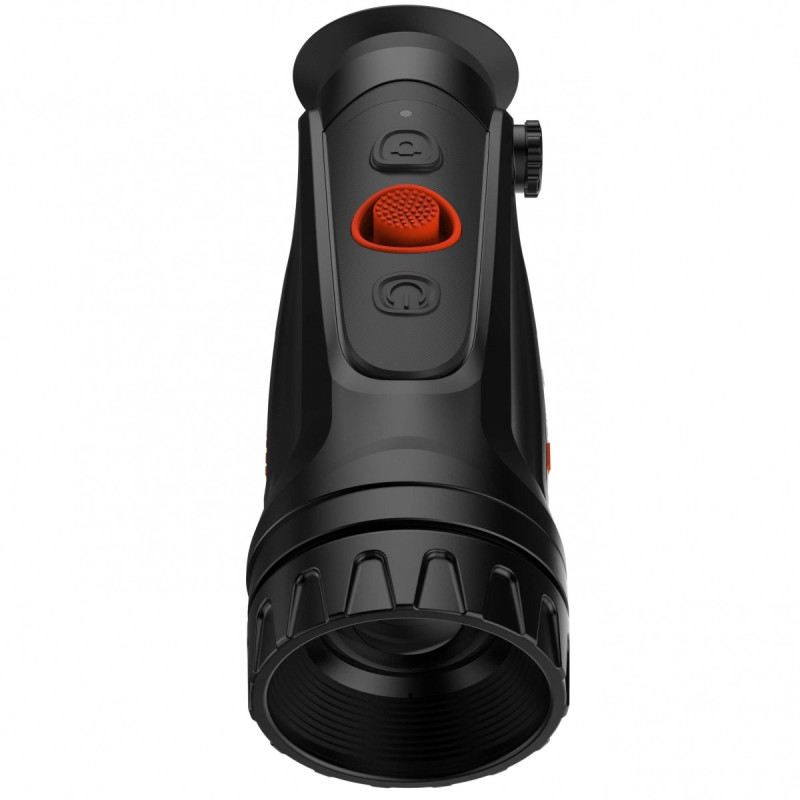

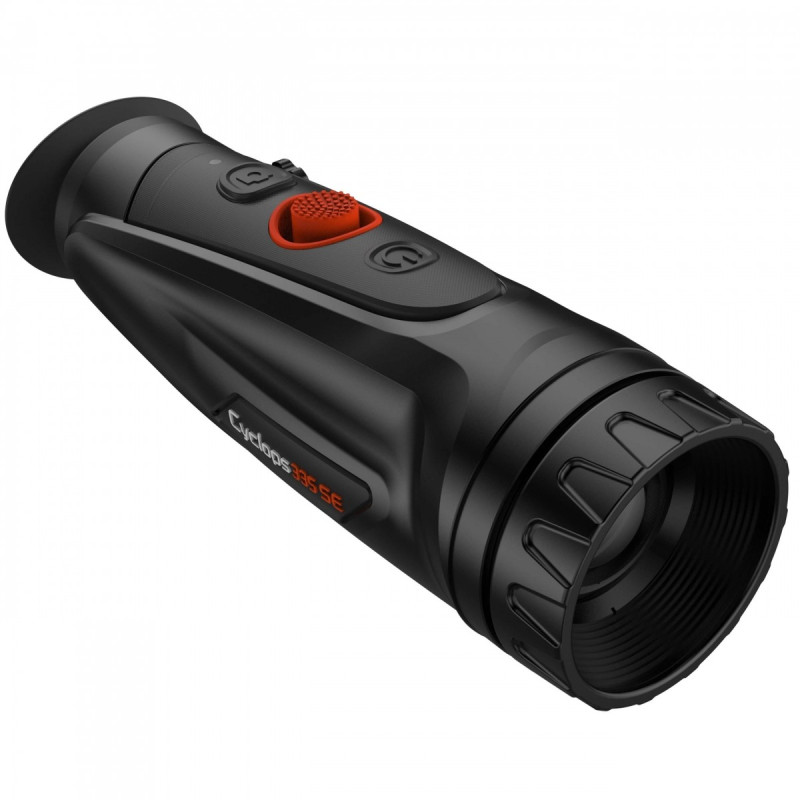

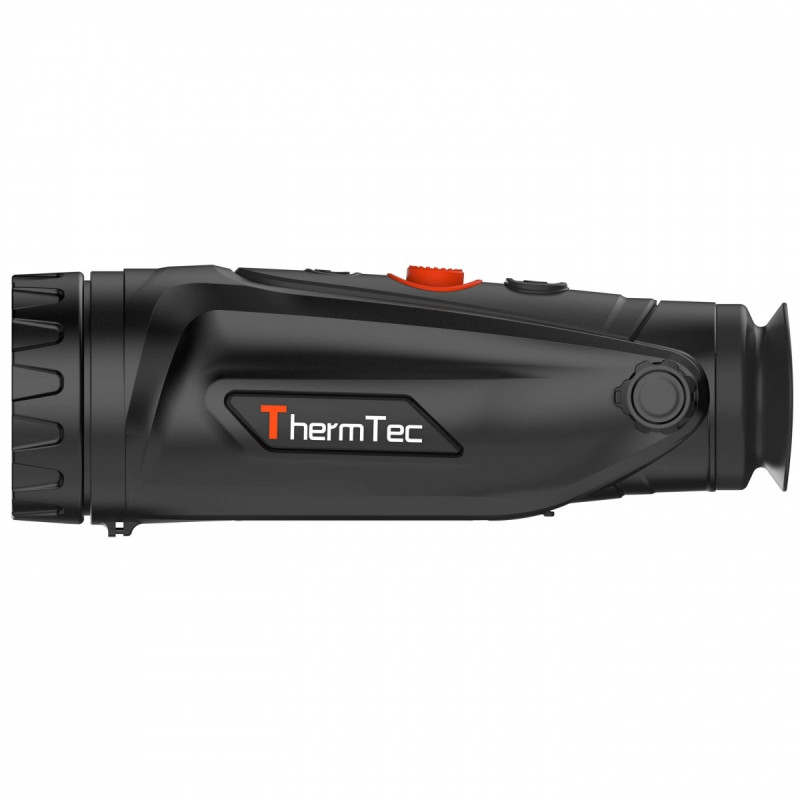

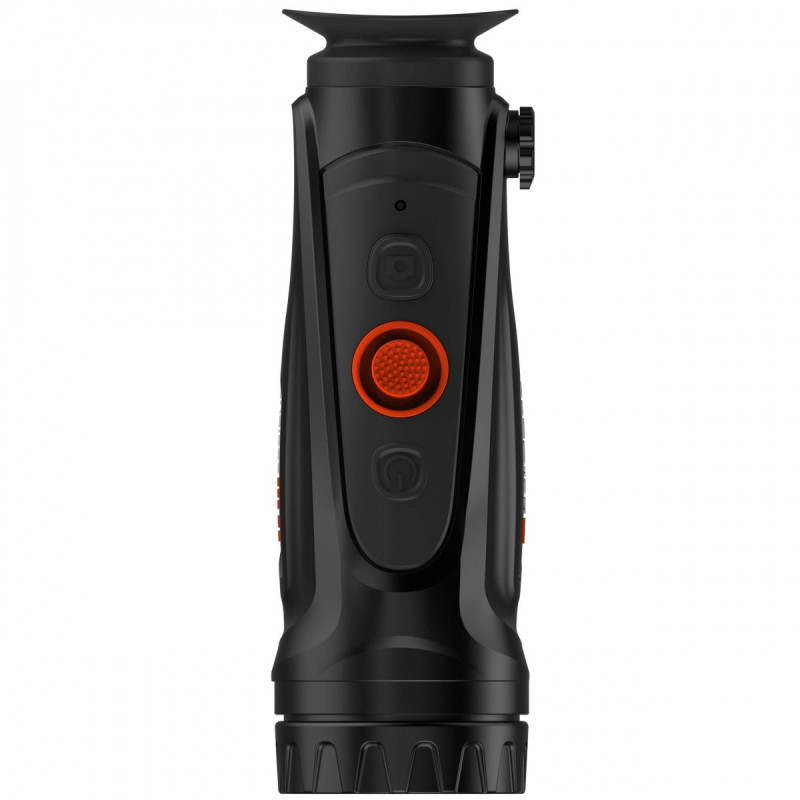

Thermal imaging monocular ThermTec Cyclops 335 SE
Cyclops 335 SE is the latest thermal imaging monocular in our Cyclops series, featuring a NETD <20mK detector that delivers excellent image quality and AI self-learning algorithms that provide increasingly stable target image quality. It has a 35mm lens with up to 1800m detection range, allowing you to easily target your game, whether in open fields or dense forests. Additionally, it integrates more advanced features and optimizes usability to enrich the hunting experience.
High Performance Imaging The high-sensitivity NETD < 20mK sensor combined with a 384x288@12um resolution ensures ultra-clear, detail rich images even in minimal temperature differentials. With a magnification range of 3.3x-13.2x, it enables easy clear identification of target detail.
Al Calibration Through advanced AI self-learning algorithms, Cyclops-SE continuously enhances its algorithm performance by collecting factors such as temperature and humidity in various environments, thereby providing increasingly stable target image quality and background rendering effects.
3s Startup Fast boot ensures observation efficiency, especially when timely information is critical in emergencies. Coupled with ThermTec's energy-efficient technology, it contributes to extended battery life.
16-Hour Nonstop Integrated with a high-capacity lithium-ion battery, it offers 16 hours of uninterrupted runtime, ensuring outdoor practicality while reducing the need for frequent recharging.
Multiple Distance Accuracies Cyclops-SE comes equipped with AI ranging, allowing you to accurately determine the distance to your target. This is especially beneficial when multiple targets are present, enhancing efficiency and enabling quick decision-making.
User-Oriented Design Cyclops-SE carries on with the joystick design, providing ergonomic single-handed operation. Its intuitive interface integrates multiple functions, ensuring quick and easy usability.
| Parameter | Specification |
|---|---|
| Resolution | 384 × 288 |
| Pixel Pitch | 12 μm |
| NETD | ≤ 20 mK @ 300 K |
| Spectral Range | 8–14 μm |
| Frame Rate | 50 Hz |
| Detection Range | 1800 m |
| Objective Lens | 35 mm / F1.0 |
| Field of View (H × V) | 7.5° × 5.6° |
| Field of View (m @100m) | 13.2 m × 9.9 m |
| Optical Magnification | 3.3× |
| Digital Zoom | 1–4× continuous |
| Eye Relief | 40 mm |
| Exit Pupil | 6 mm |
| Diopter Adjustment | ±5D |
| Display Type | AMOLED |
| Display Resolution | 1024 × 768 |
| Display Size | 0.39 in |
| Color Palettes | 6 |
| Image Modes | Forest / Target / Outline |
| Photo/Video Playback | Yes |
| Language | Multi-language |
| Built-in Memory | 64 GB |
| Calibration | Auto / Manual |
| PIP (Picture-in-Picture) | Yes |
| AI Distance Measurement | Yes |
| Heat Track | Yes |
| Real-time Notification | Yes |
| OSD Recording | Yes |
| Internal Battery | Built-in high-capacity Li-ion (2 × 18650) |
| Battery Life | Up to 16 hours |
| Type-C Interface | Supports charging and data transfer |
| App Remote Control | Supported |
| Operating Temperature | –20°C ~ +50°C |
| Protection Level | IP67 |
| Weight | 522 g |
| Dimensions (L × W × H) | 196.4 × 63.8 × 64.1 mm |
| External Cable | USB cable |
| Other Accessories | Anti-dust cloth and others |
