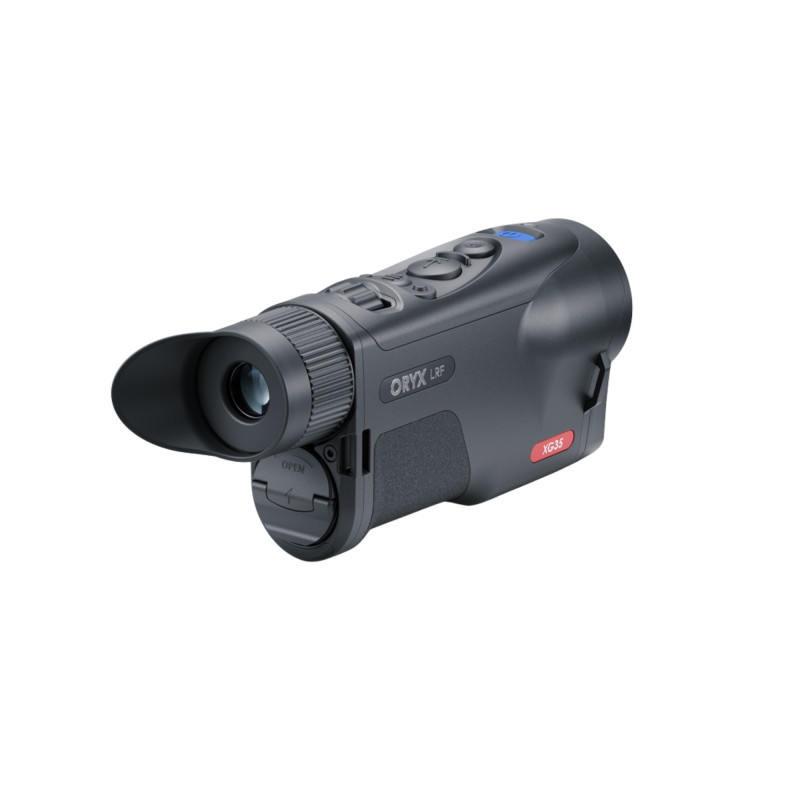

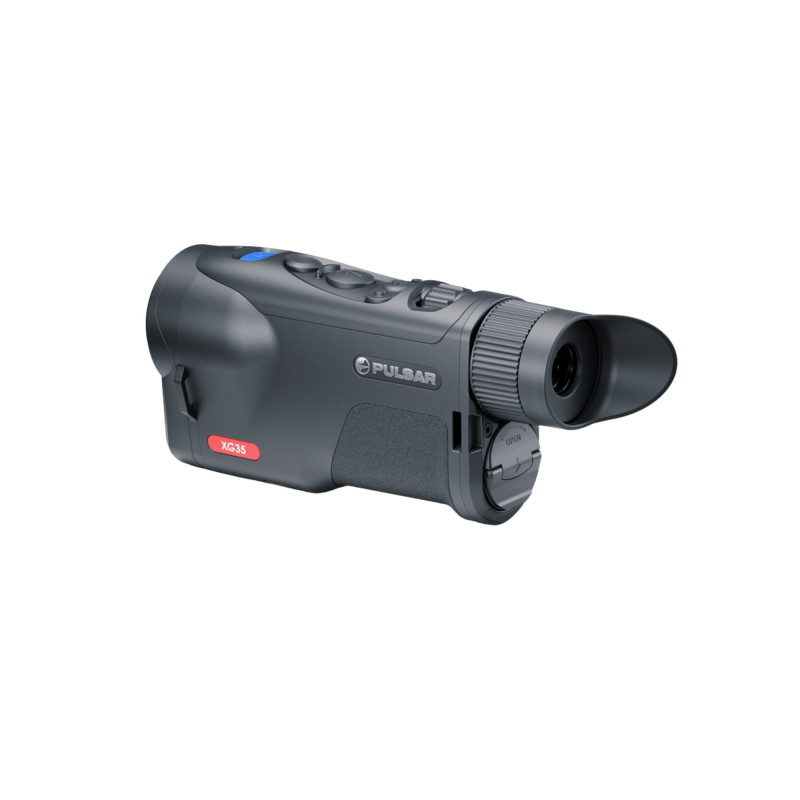

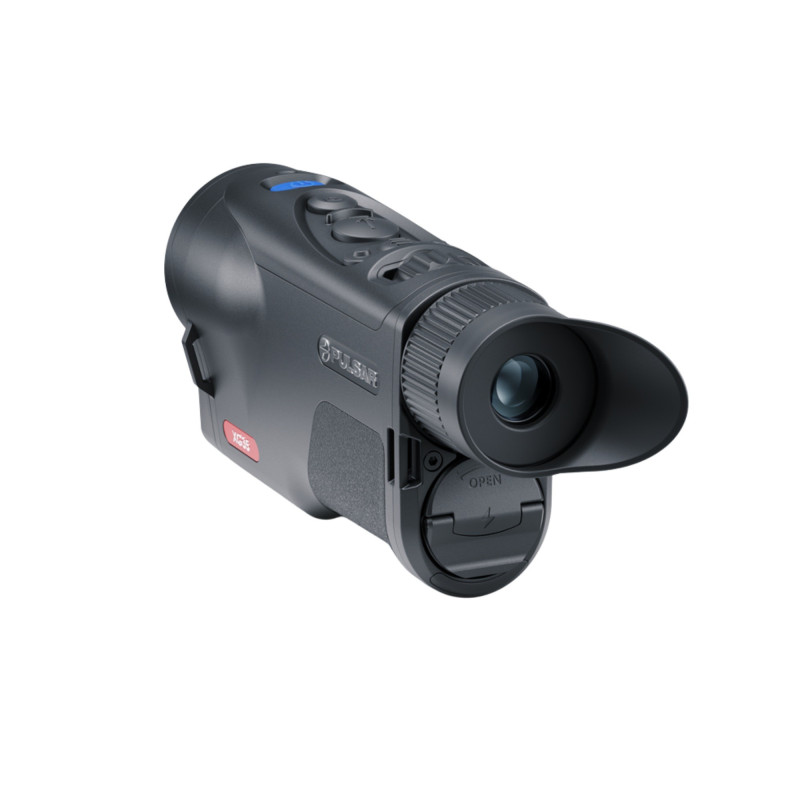

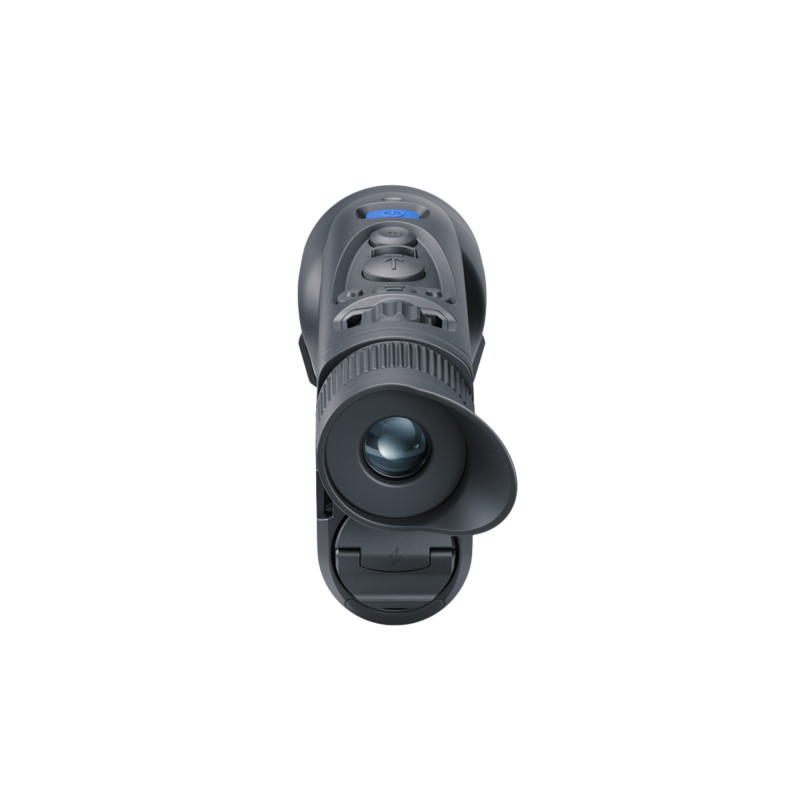

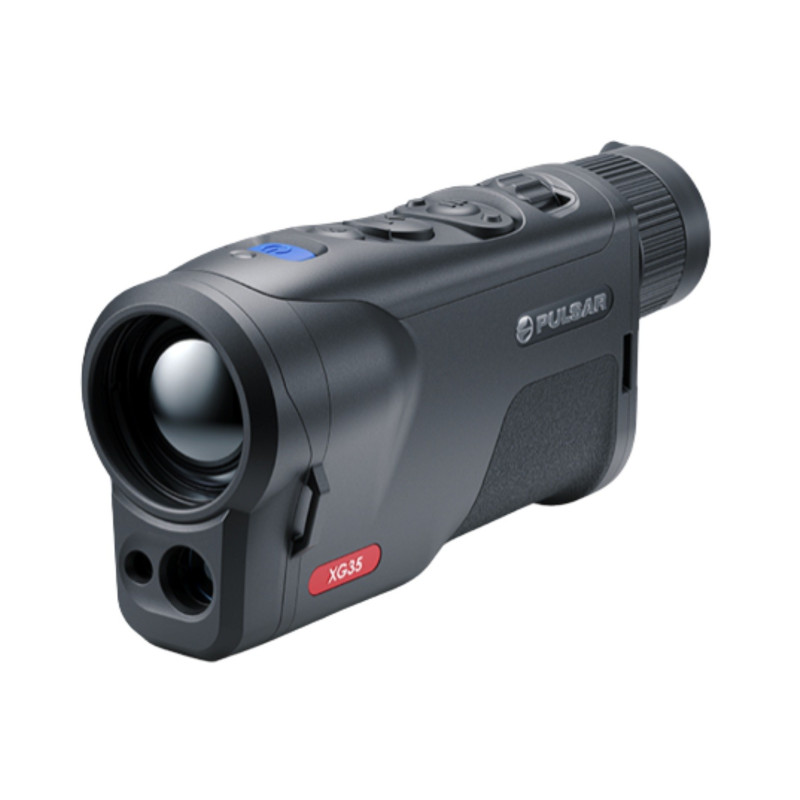

PULSAR ORYX XG35 LRF thermal monocular (77504)

Sensor:

Type: Uncooled

Resolution: 640×480 px

Pixel Pitch: 12 µm

Sensor NETD: < 40 mK

System NETD: < 20 mK

Frame Rate: 50 Hz

Optics:

Objective Lens: F35 / 1.0

Magnification: 2.5 – 20× (8× digital zoom)

Field of View (HxV): 12.5° × 9.4°

FOV at 100m: 21.9 m

Eye Relief: 14 mm

Display

Type: AMOLED HD

Resolution: 1024×768 px

Range Performance:

Detection Range: 1800 m

Laser Rangefinder:

Max Measuring Range: 1500 m

Accuracy: ±1 m

Wavelength: 905 nm

Laser Class: 1 (IEC 60825-1:2014)

Video Recorder:

Photo/Video Resolution: 1024×768 px

Formats: .mp4 / .jpg

Built-in Memory: 64 GB

Wi-Fi:

Protocol: Wi-Fi

Standard: IEEE 802.11 b/g/n/ac (WPA)

Frequencies: 2.4 / 5 GHz

Environmental Protection:

Protection Rating: IP67 (IEC60529)

Operating Temperature: -25 to +40 °C

Mounting & Compatibility Mount Type: 1/4" socket

Supported App:

Stream Vision 2

Power Supply Battery Type:

APS 5 Li-ion (4900 mAh, removable) + Built-in (3200 mAh)

Output Voltage: 3.0 – 4.2 V

Battery Life at 22°C: up to 12 h

External Power: 5V / 9V via USB Type-C (PD)

Physical Characteristics Material:

Magnesium Alloy

Dimensions: 179 × 52 × 77 mm

Weight: 0.5 kg
