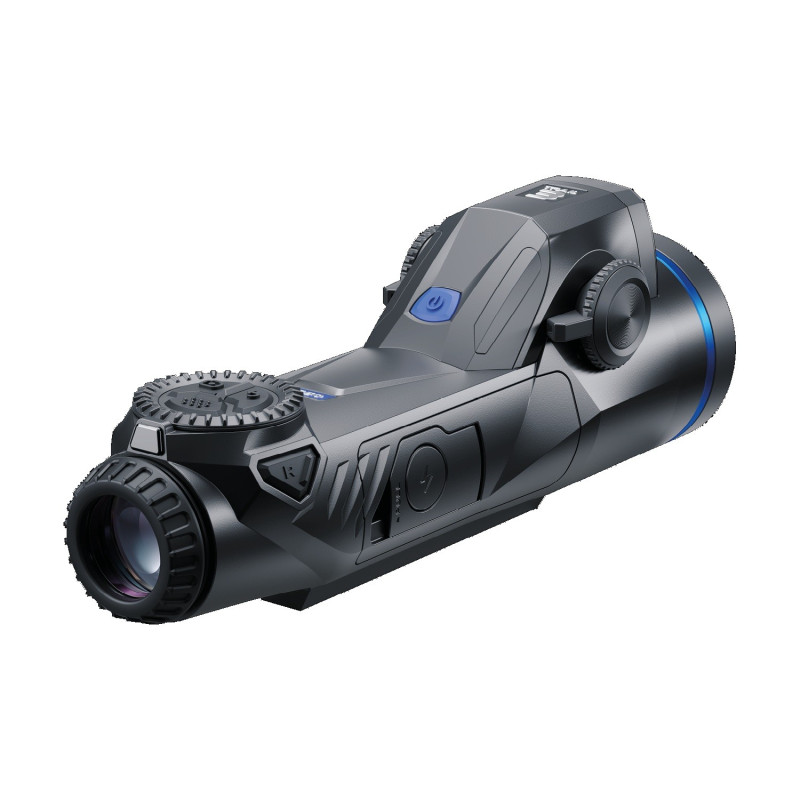

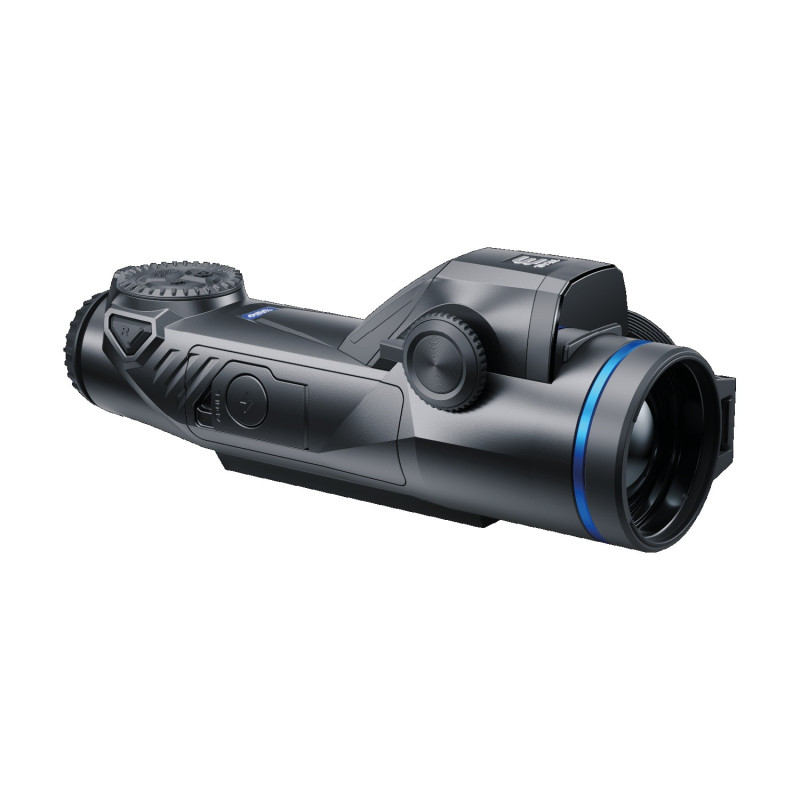

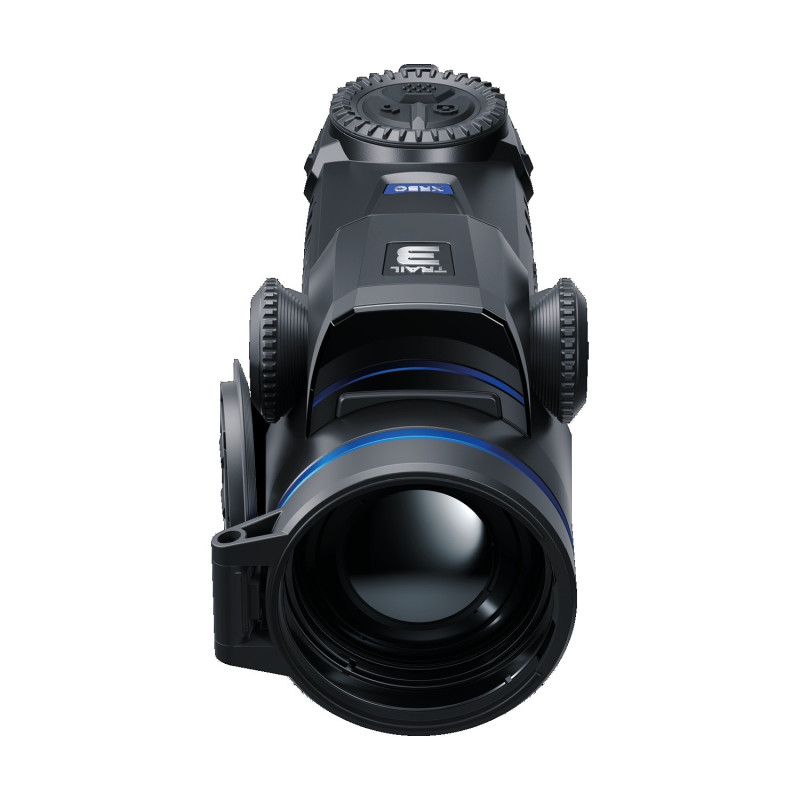

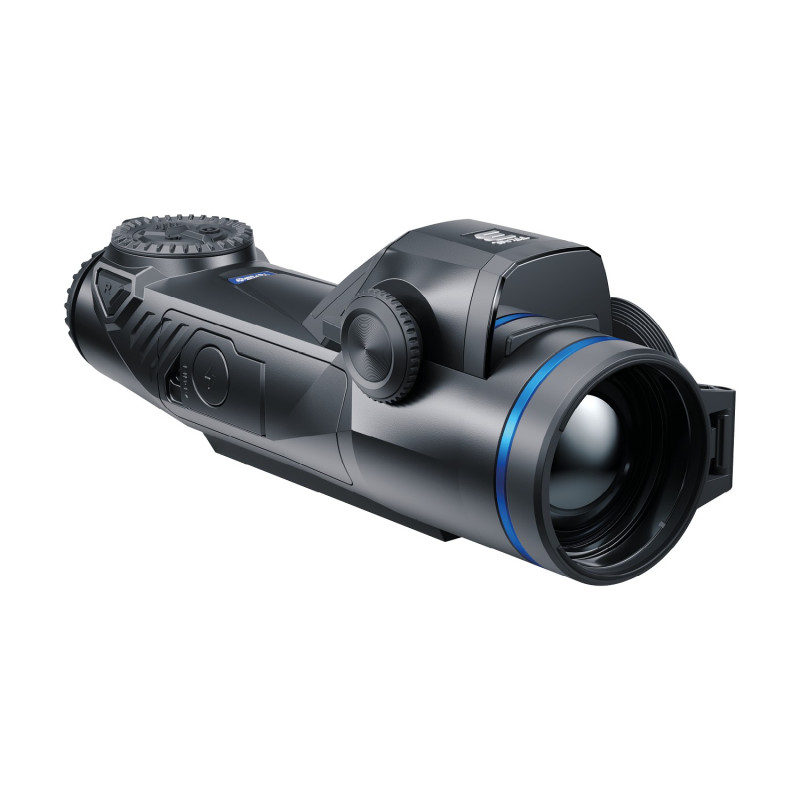

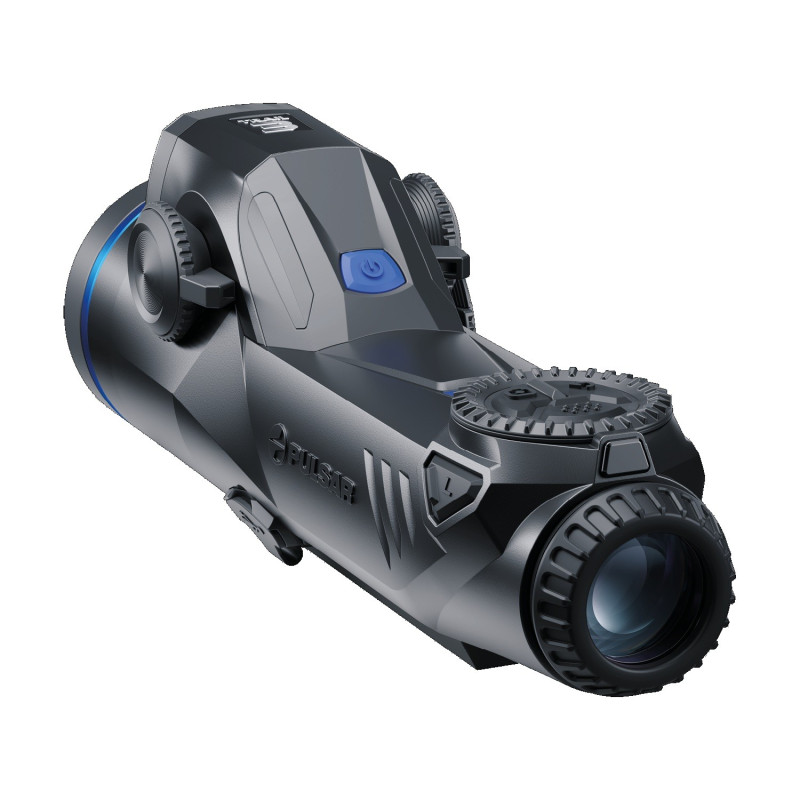

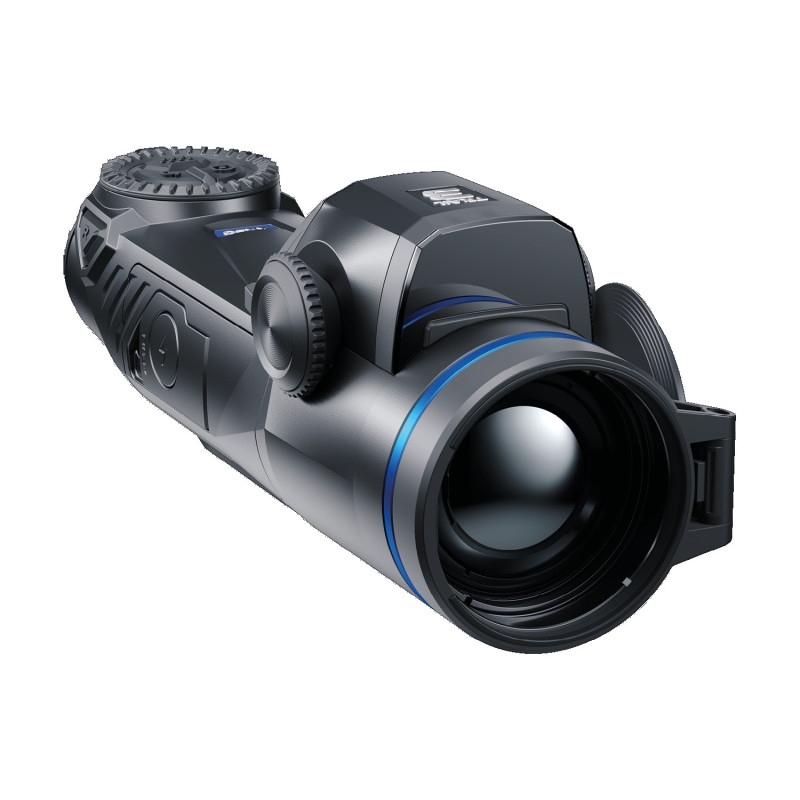

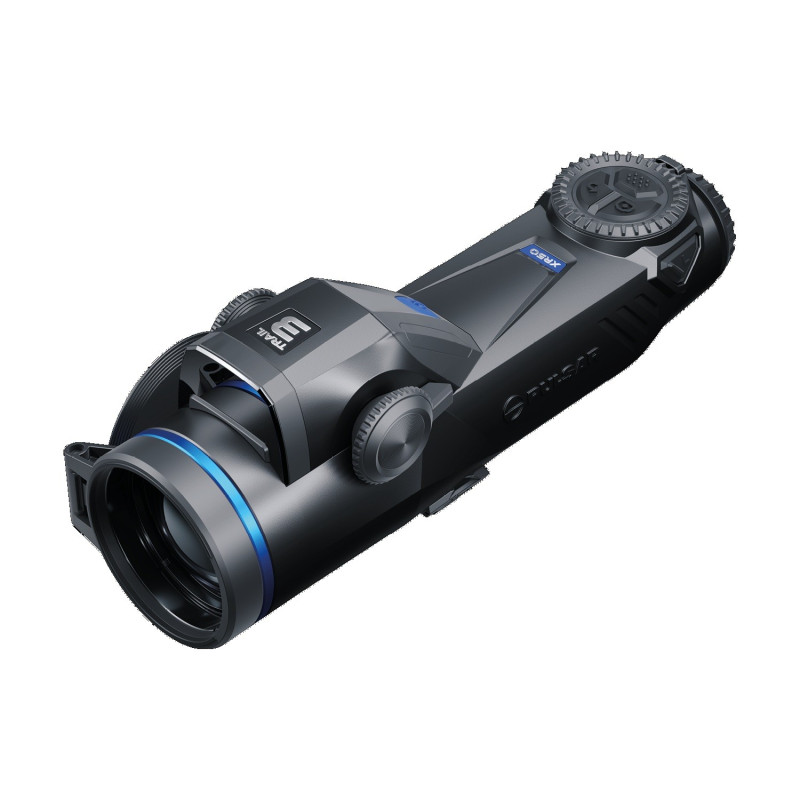

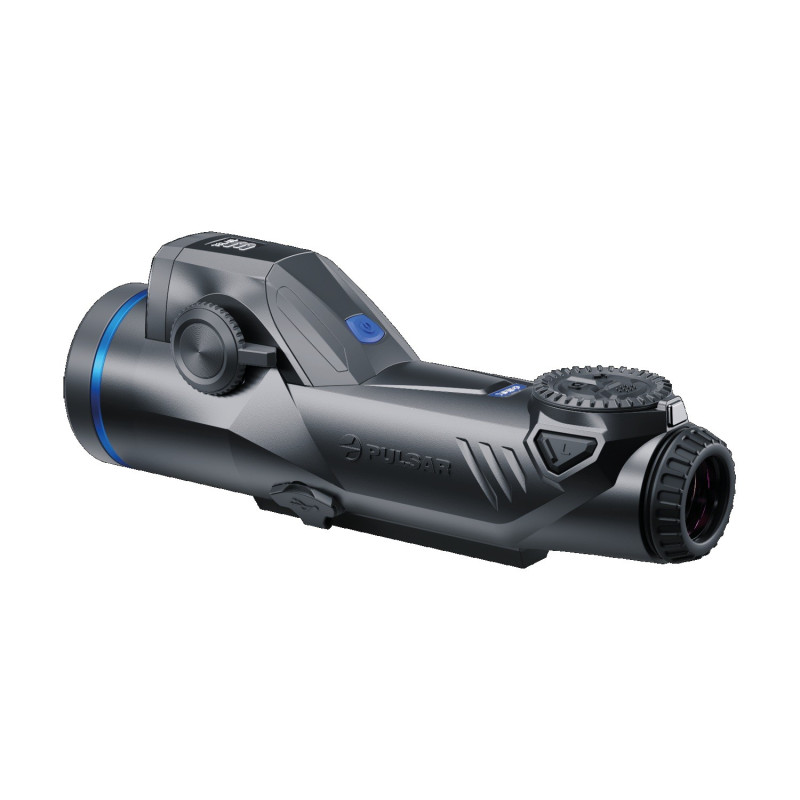

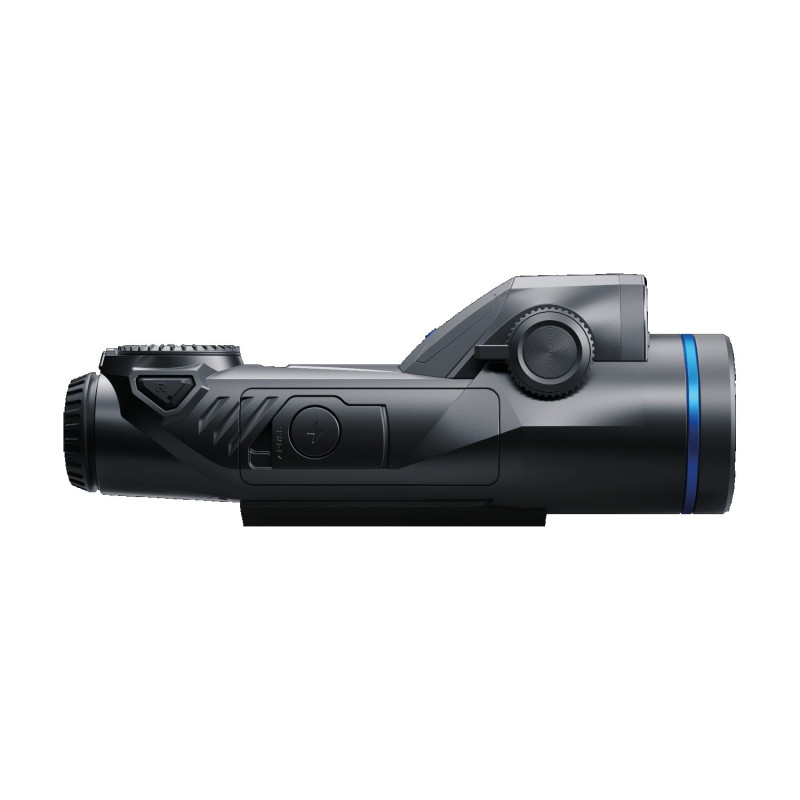

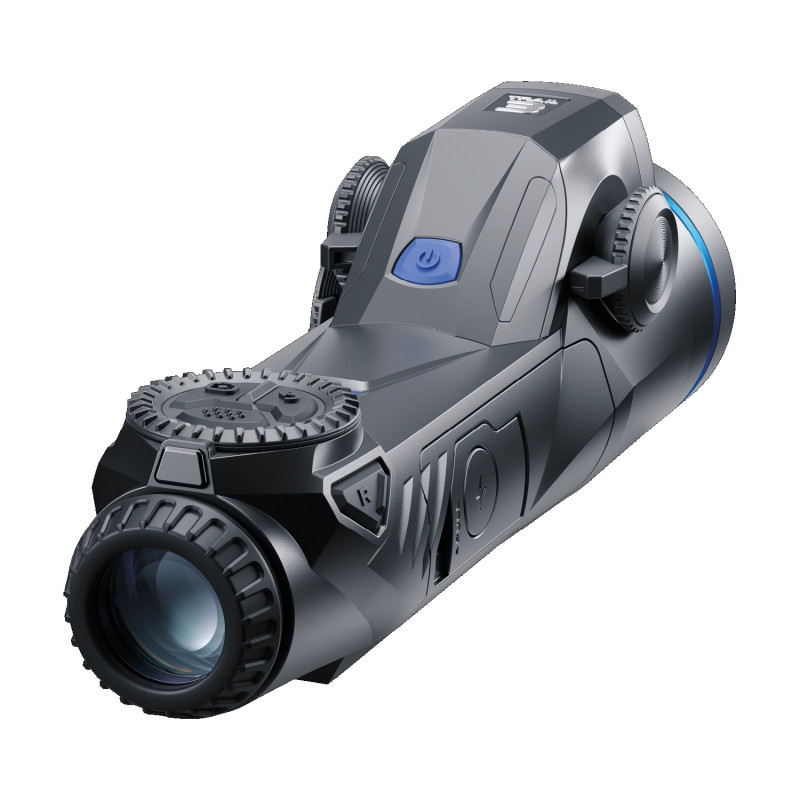

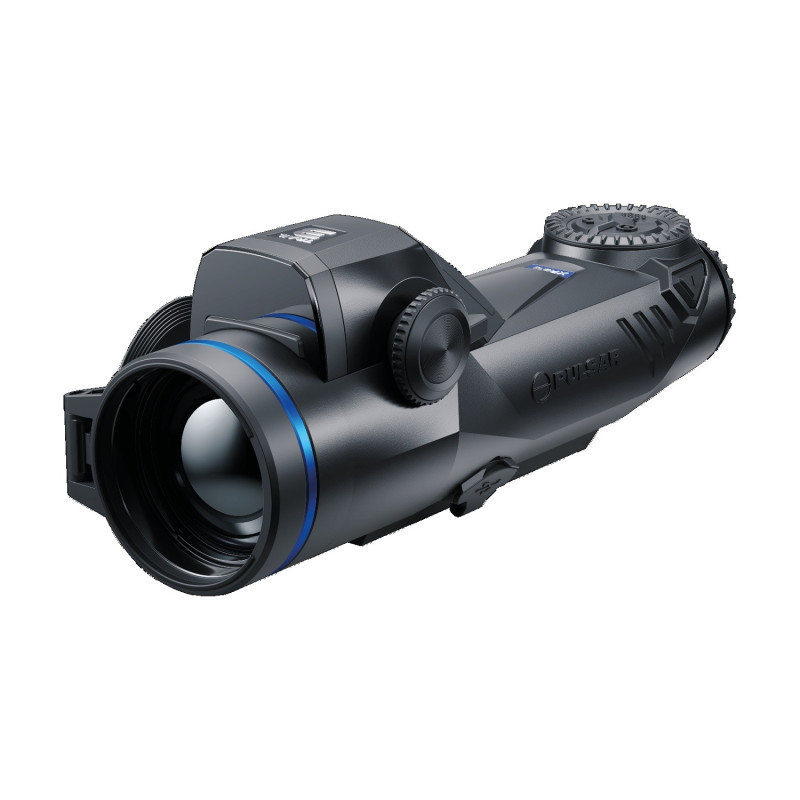

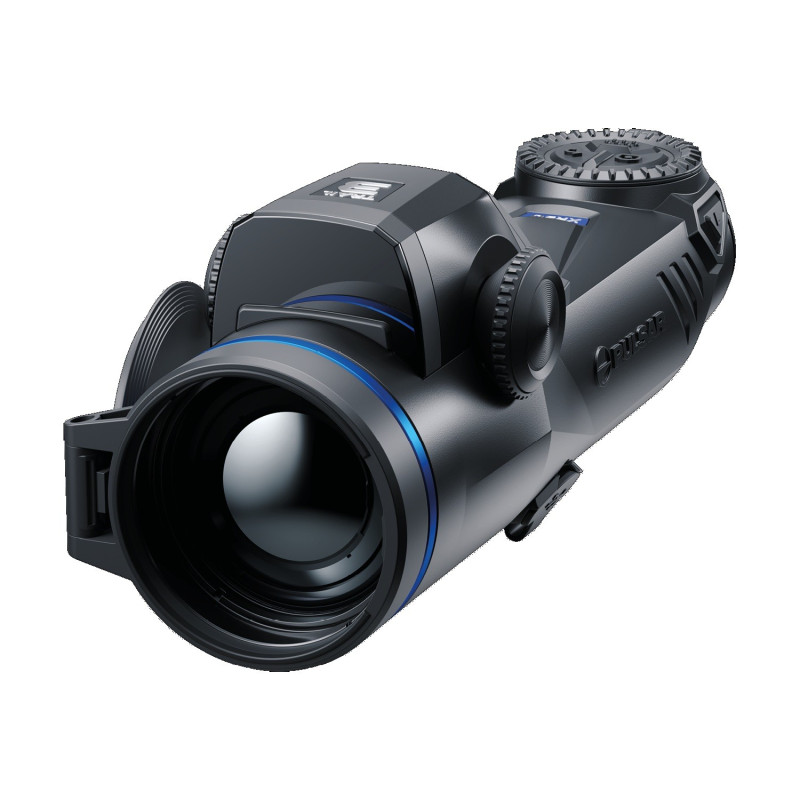

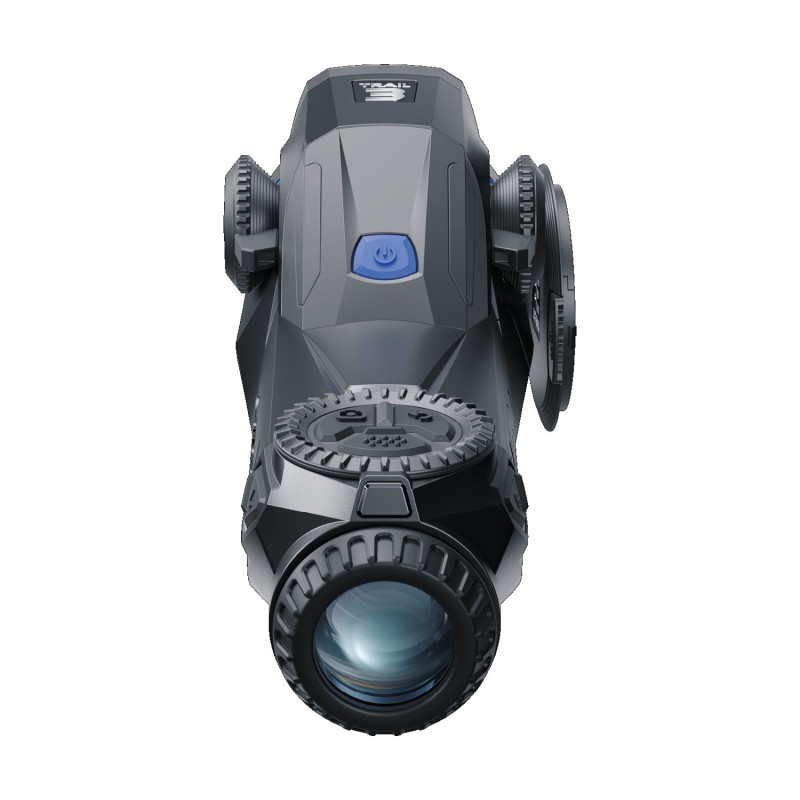

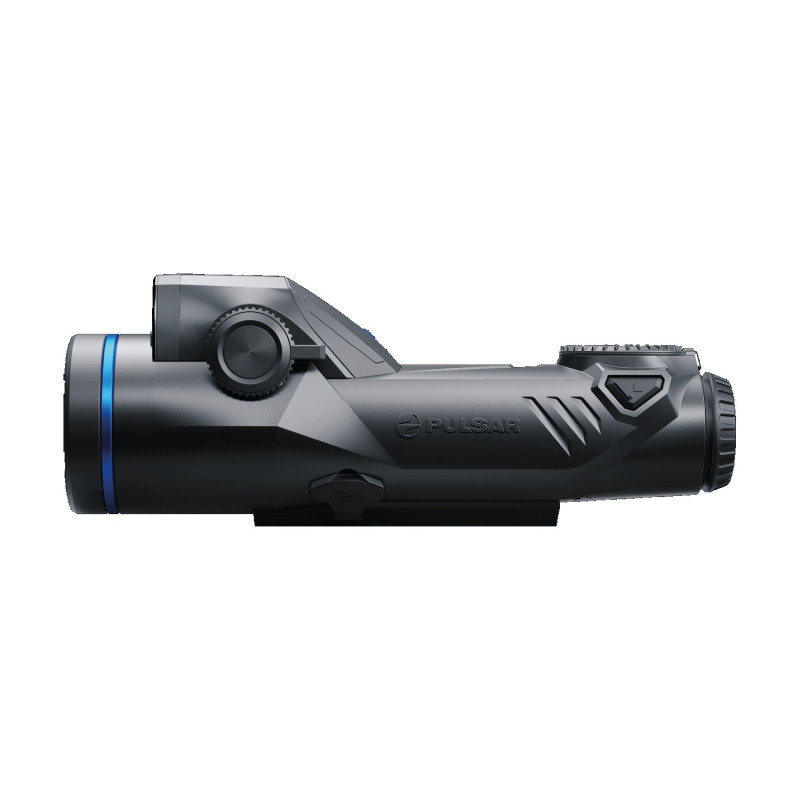

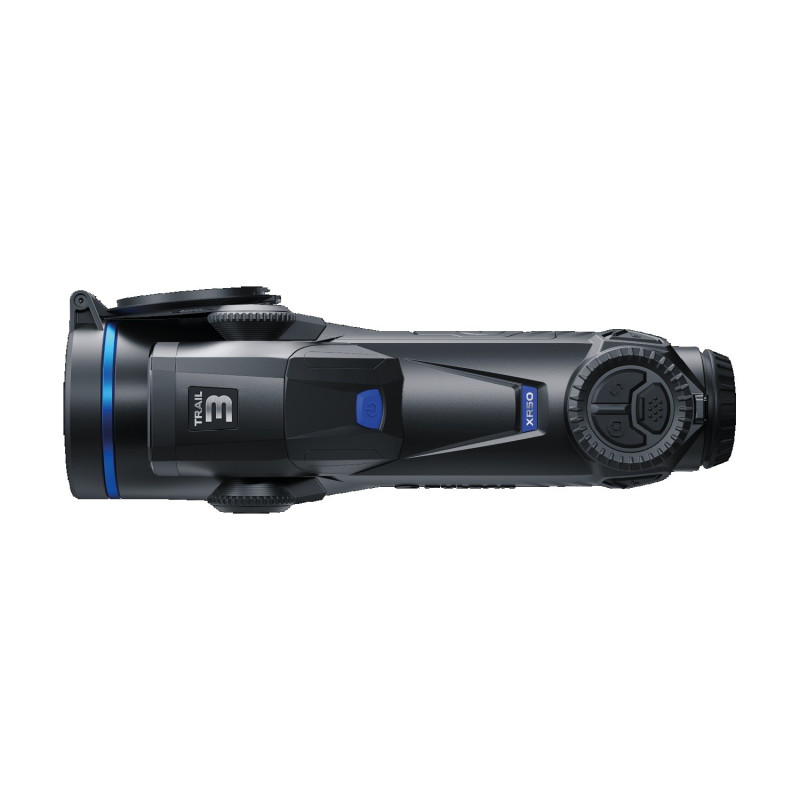

Thermal Imaging Scope Pulsar Trail 3 LRF XR50

The Trail 3 LRF XR50 thermal riflescope in the all new Trail 3 family represents Pulsar’s latest evolution in purpose-built thermal optics, engineered for hunters and tactical professionals who demand precision detection, integrated ranging capability, and uncompromising reliability in total darkness and adverse conditions. Built on Pulsar’s proven Trail platform, the Trail 3 lineup combines high-resolution thermal sensors with integrated laser rangefinders, premium AMOLED displays, and rugged weatherproof construction to deliver complete target awareness and ranging capability without carrying separate equipment.

Main specifications
Sensor: 640x480/12µm
Objective lens: F50 / 1.0
Magnification, x: 3 - 24
FOV (HxV), degrees: 8.8
FOV (HxV), m@100m: 15.4
Diopter Adjustment, D: -5 / +5
Detection range: 2300 m

Reticle

Click range, H/V, mm at 100m: 2200 / 2200
Click value, H/V, mm at 100m: 10.7
Number of preloaded reticles: 10

Sensor

Type: Thermal uncooled, microbolometric
Resolution, pixels: 640x480/12µm
Sensor NETD, mK: <30
System NETD, mK: < 18
Frame rate, Hz: 50

Optics

Objective lens: F50 / 1.0
Magnification, x: 3 - 24
FOV (HxV), degrees: 8.8
FOV (HxV), m@100m: 15.4
Diopter Adjustment, D: -5 / +5
Eye relief, mm: 50

Display

Type: AMOLED
Resolution, pixels: 1920x1080

Laser rangefinder

Max. measuring range, m: 1200
Measurement accuracy, m: ± 1
Safety class for laser equipment according to IEC 60825-1:2014: 1
Wavelength, nm: 905

Video recorder

Video / photo resultion, pixel: 1440x1080
Video / photo format:

.mp4 / .jpg

Build-in memory, GB: 64

Bluetooth

Wireless protocol: BLE 4.2
Wireless standard: IEEE 802.15.1
Frequency, Ghz: 2.4

WI-FI

Wireless protocol: Wi-Fi
Wireless standard: IEEE 802.11 b/g/n/ac (WPA)
Frequency, Ghz: 2.4 / 5

Environmental characteristics

Degree of protection IP code (IEC60529): IP67
Operating temperature range, °С: -25 – +50

Connections and compatibilities

Compatible mounts: Multi-point prism
Supported application: Stream Vision 2, Stream Vision Ballistics
Shock resistance on the smooth-bore rifles, caliber: 12
Max. recoil power on rifled weapon (Eo), Joules: 6000

Power supply

Output voltage, V: 4.2-3.0
Battery type: LPS 7i
Capacity, mAh: 6400
Operating time on battery pack, h at t=22°С: 11h
External power supply, V: 5V/9V USB Type-C

Weight & size

Body material: Magnesium alloy
Dimensions, mm: 271x86x71
Weight, kg: 0.7 kg
SKU: 76588
