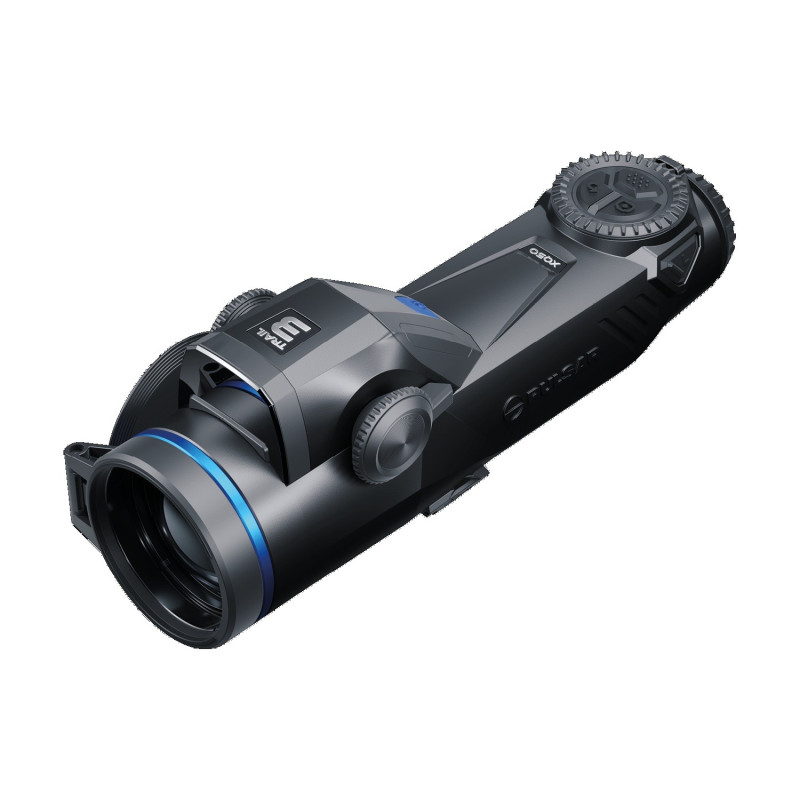

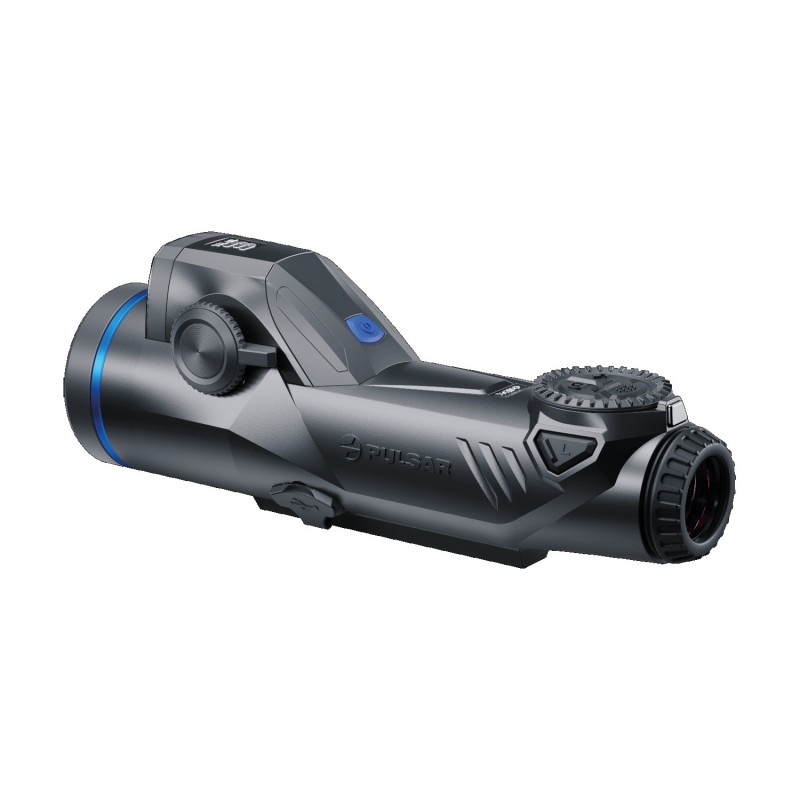

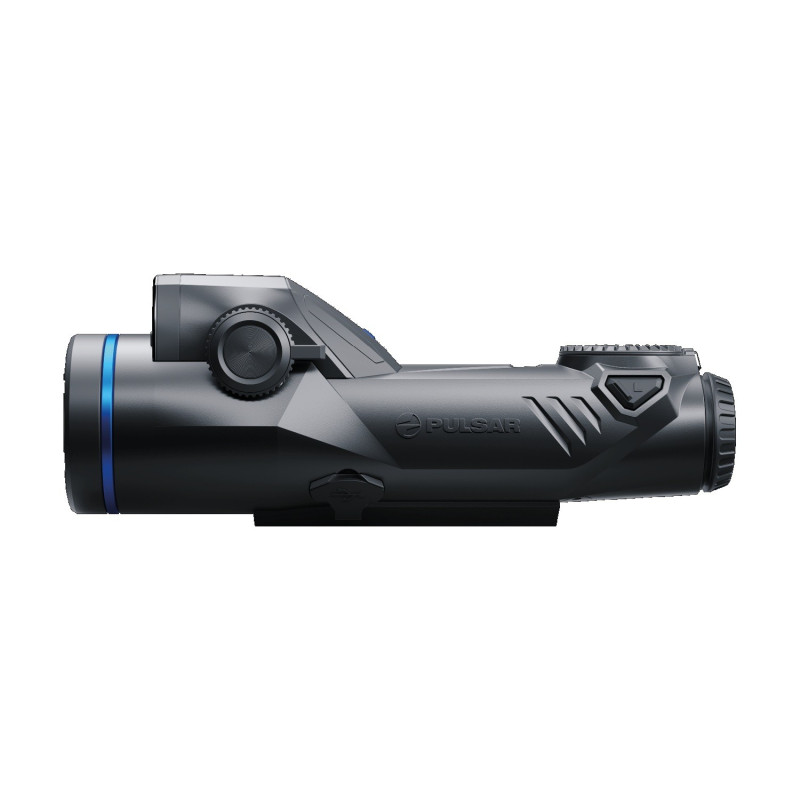

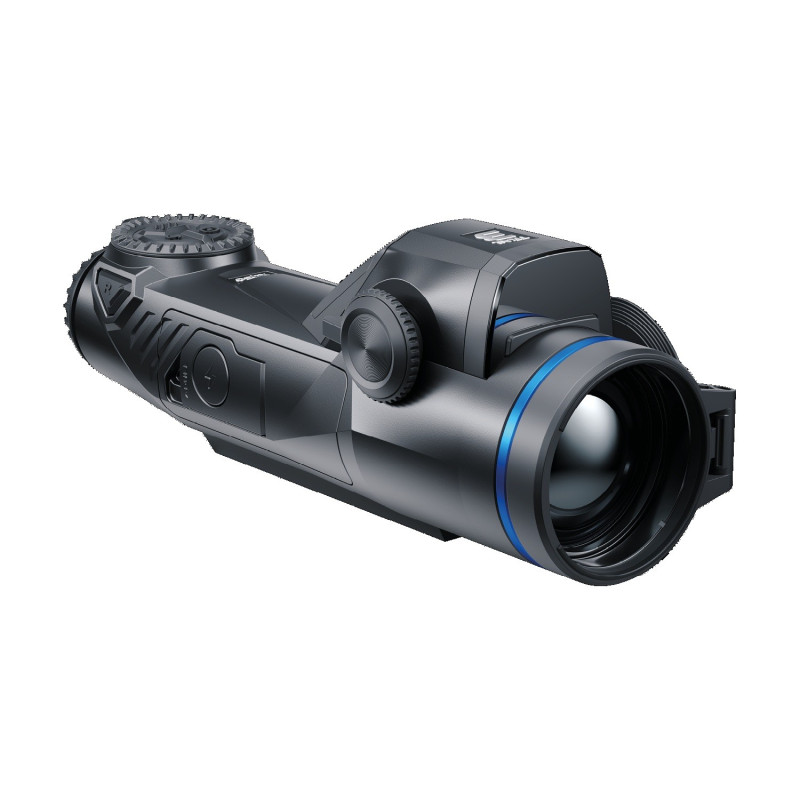

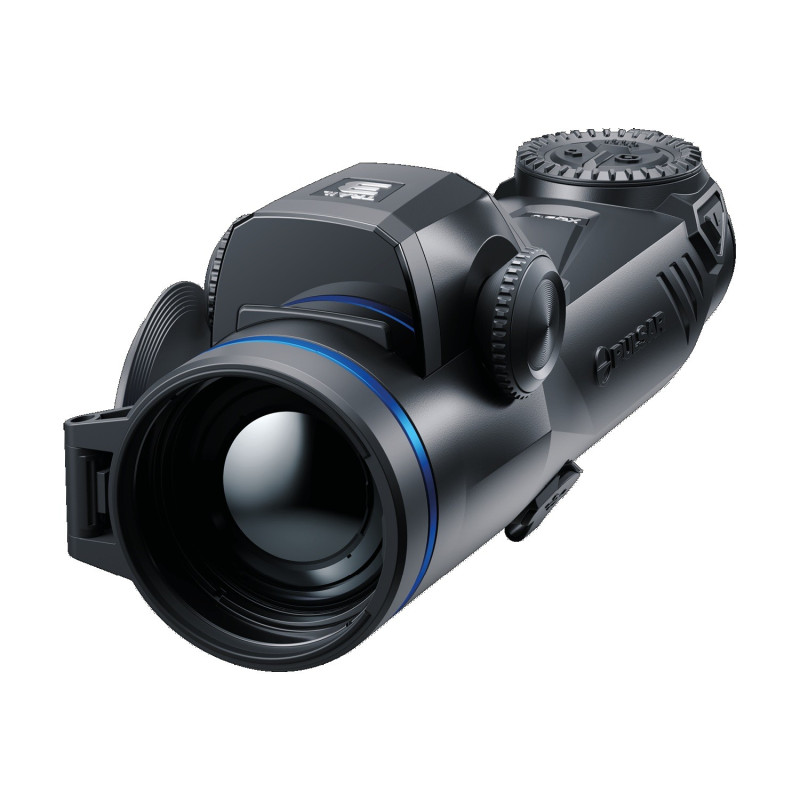

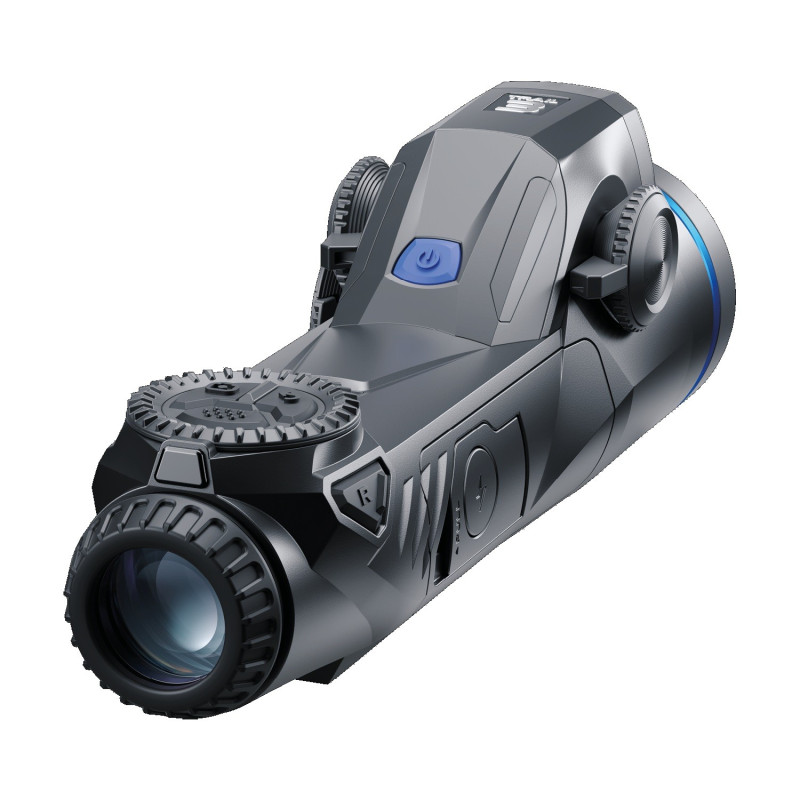

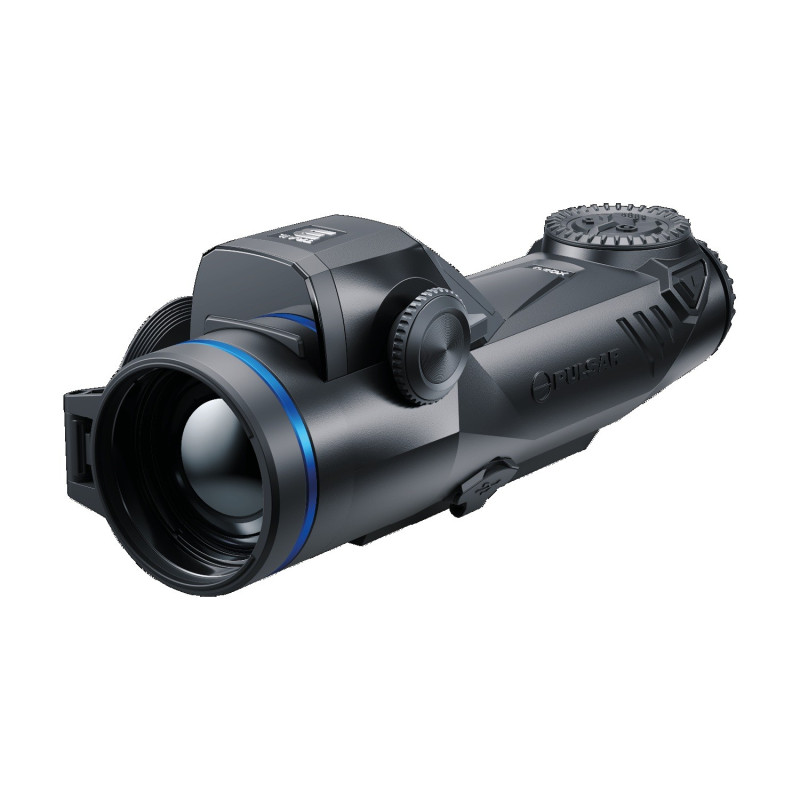

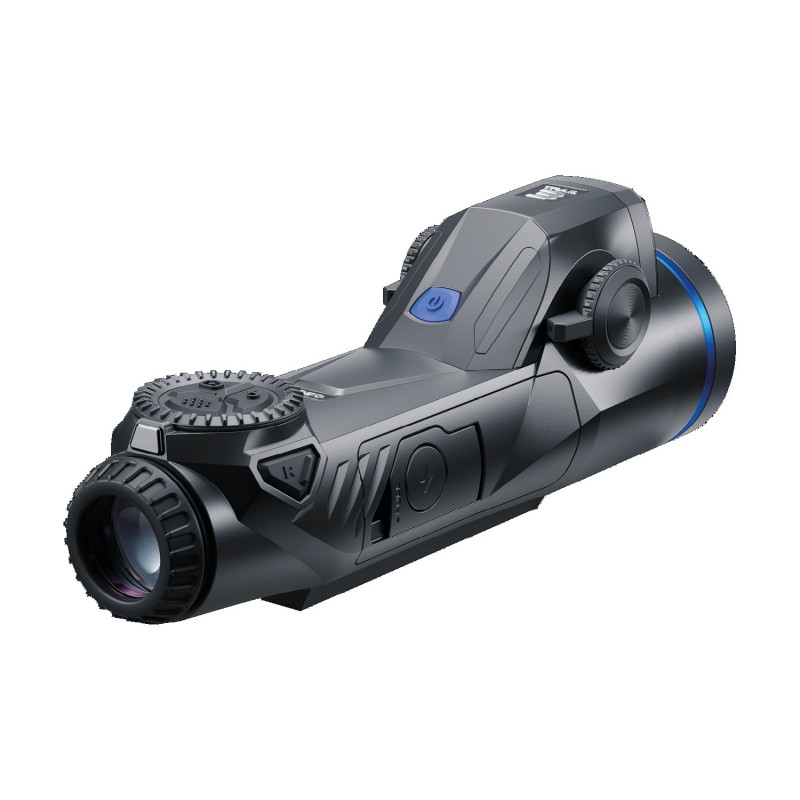

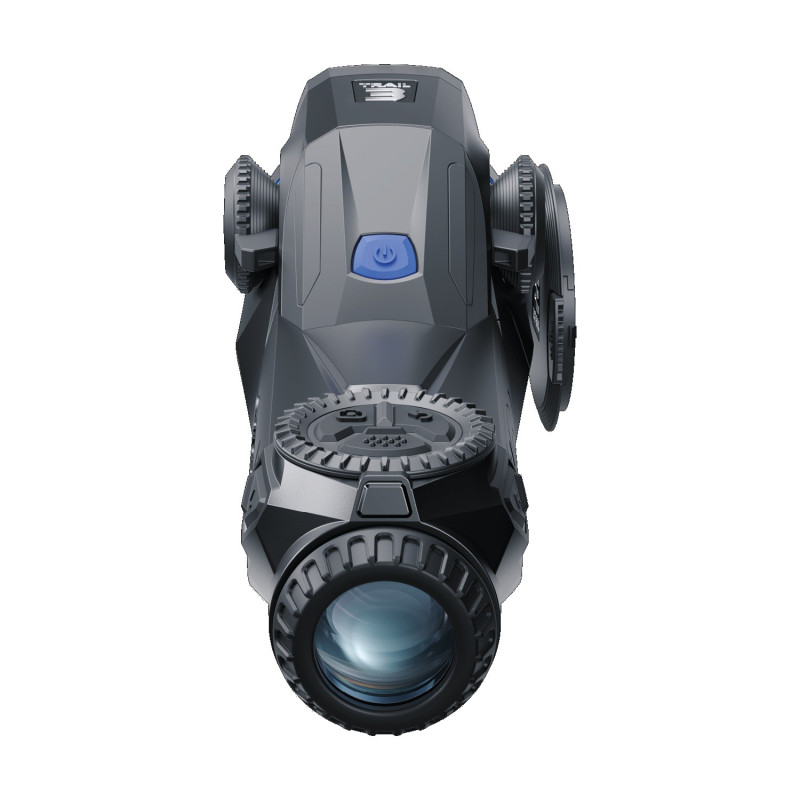

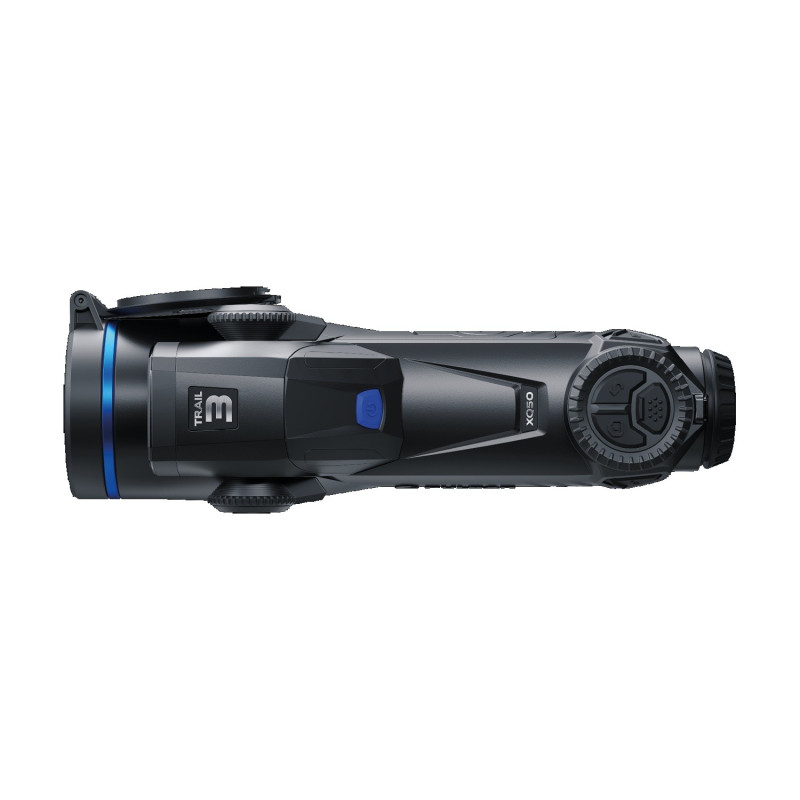

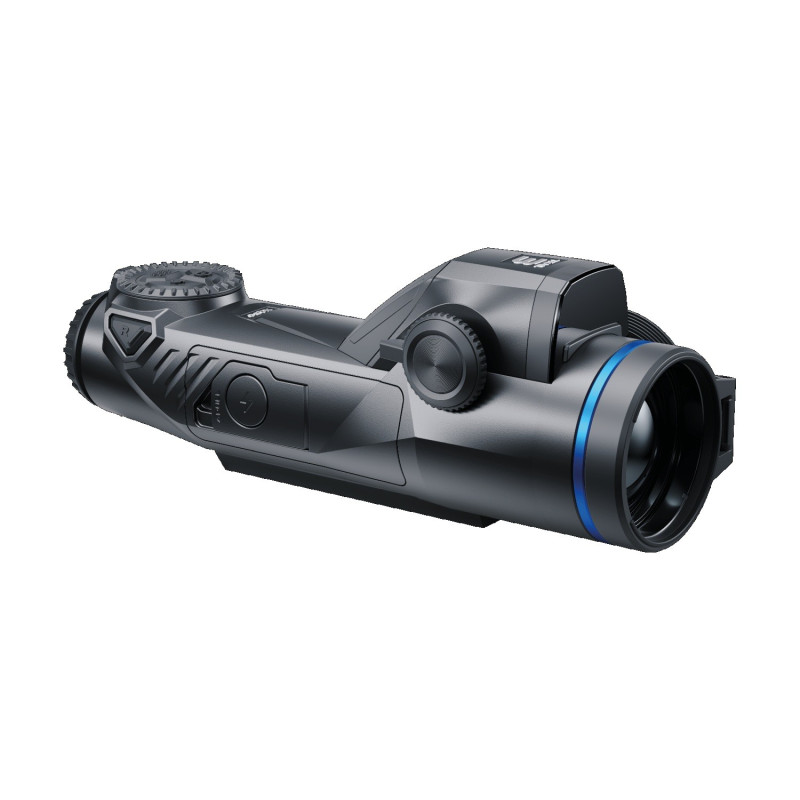

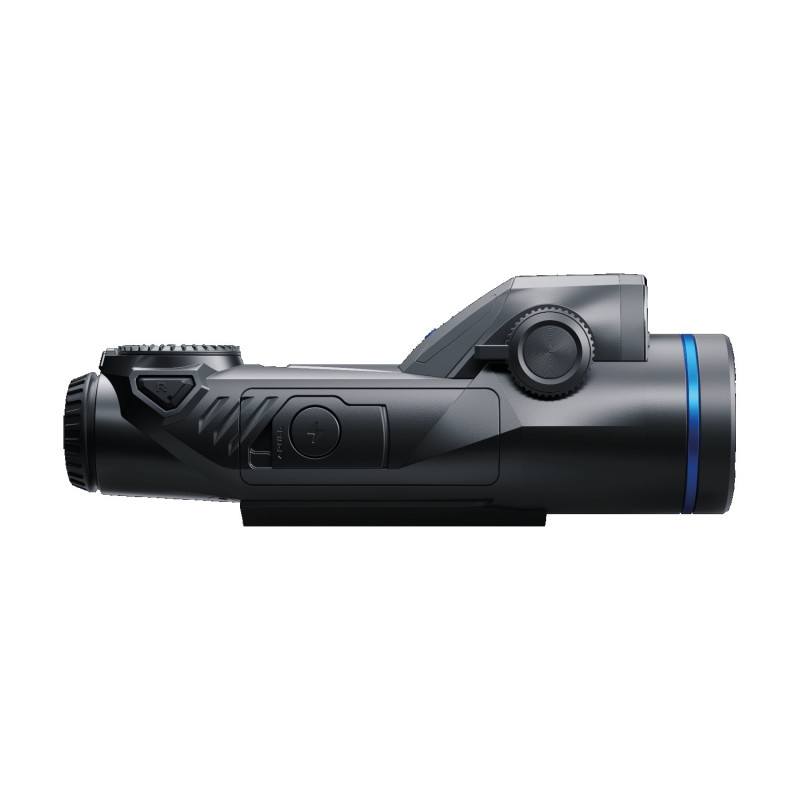

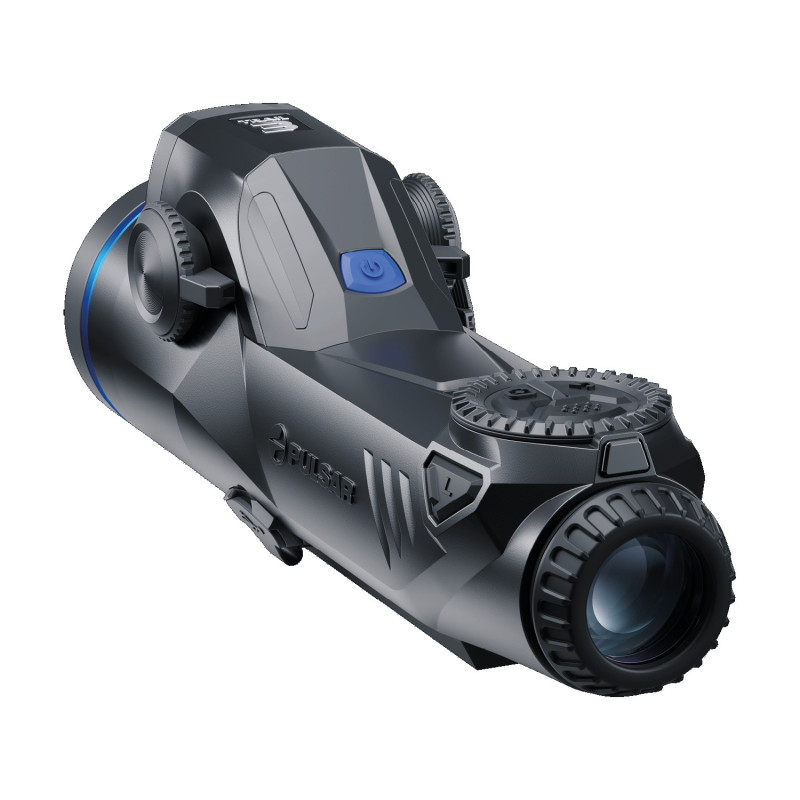

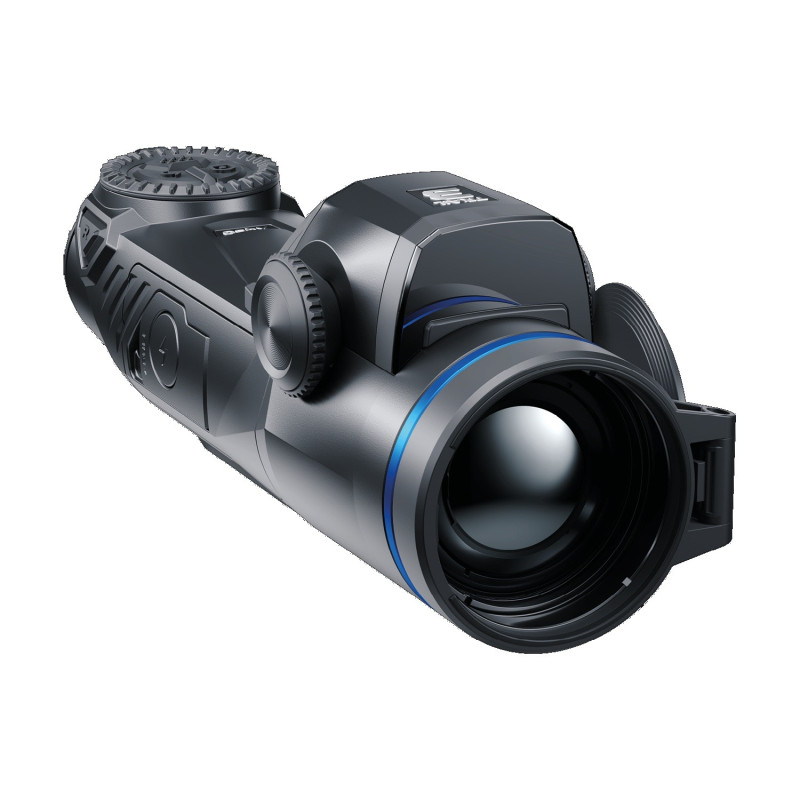

Thermal Imaging Scope Pulsar Trail 3 LRF XQ50

Main specifications

Sensor: @ 17 µm 384x288/17µm
Objective lens: F50 / 1.0
Magnification, x: 3.5 - 14
FOV (HxV), degrees: 7.5
FOV (HxV), m@100m: 13.1
Diopter Adjustment, D: -5 / +5
Detection range: 1800 m

Reticle
Click range, H/V, mm at 100m: 1800/1800
Click value, H/V, mm at 100m: 9.1
Number of preloaded reticles: 10

Sensor
Type: Thermal uncooled, microbolometric
Resolution, pixels: 384x288/17µm
Pixel pitch, µm: 17
Sensor NETD, mK: < 25
System NETD, mK:< 15
Frame rate, Hz: 50

Optics

Objective lens: F50 / 1.0
Magnification, x: 3.5 - 14
FOV(HxV), degrees: 7.5
FOV (HxV), m@100m: 13.1
Diopter Adjustment, D: -5 / +5
Eye relief, mm: 50

Display

Type:AMOLED
Resolution, pixels:1920x1080

Laser rangefinder

Max. measuring range, m: 1200 m.
Measurement accuracy, m:± 1 m.

Safety class for laser equipment

according to IEC 60825-1:2014:1
Wavelength, nm: 905

Video recorder

Video / photo resultion, pixel: 1440x1080
Video / photo format: .mp4 / .jpg
Build-in memory, GB: 64

Bluetooth

Wireless protocol: Wi-Fi
Wireless standard: IEEE 802.11 b/g/n/ac (WPA)
Frequency, Ghz: 2.4/5

WI-FI

Wireless protocol: Wi-Fi
Wireless standard: IEEE 802.11 b/g/n/ac (WPA)
Frequency, Ghz: 2.4 / 5

Environmental characteristics

Degree of protection IP code (IEC60529): IP67 (waterproof)
Operating temperature range, °С: -25 – +50

Connections and compatibilities

Compatible mounts: Multi-point prism
Supported application: Stream Vision 2, Stream Vision Ballistics
Shock resistance on the smooth-bore rifles, caliber: 12
Max. recoil power on rifled weapon (Eo), Joules: 6000

Power supply

Output voltage, V: 4.2-3.0
Battery type: LPS 7i
Capacity, mAh: 6400
Operating time on battery pack, h at t=22°С: 12h
External power supply, V: 5V/9V USB Type-C

Weight & size

Body material: Magnesium alloy
Dimensions, mm: 271x86x71
Weight, kg: 0.7
SKU: 76585
