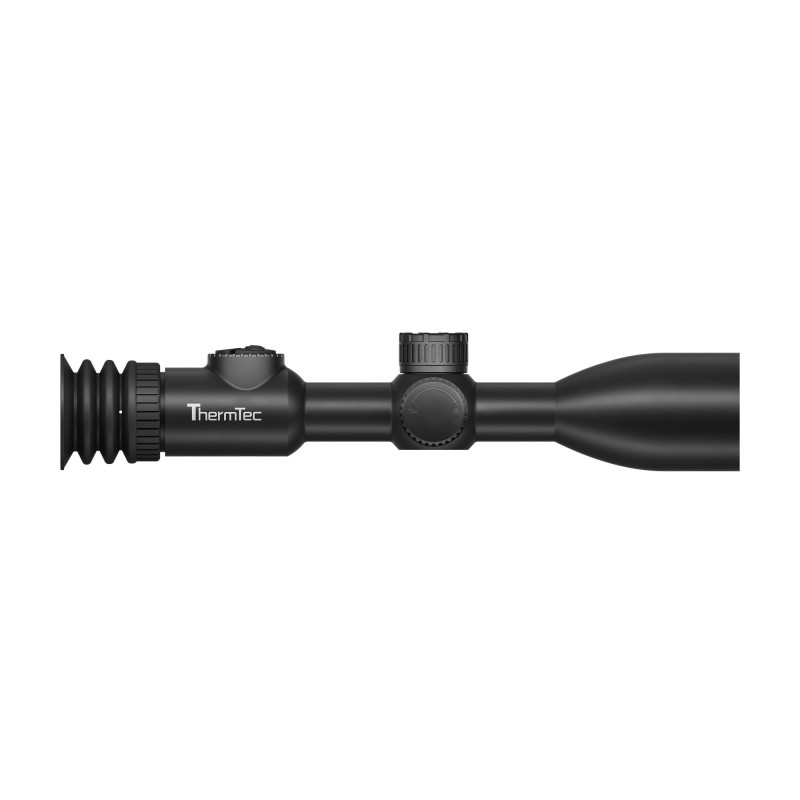

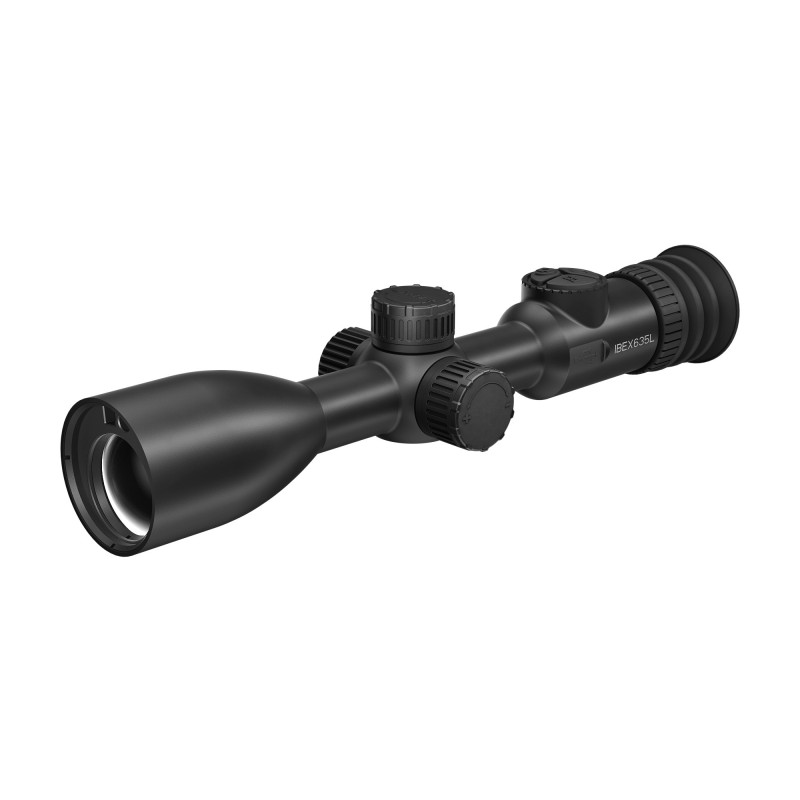

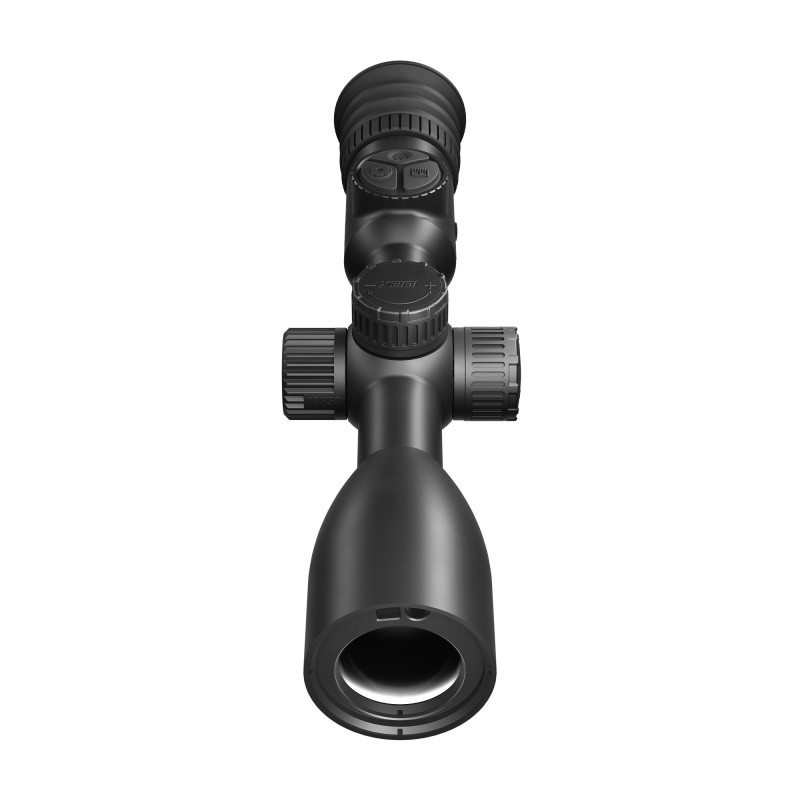

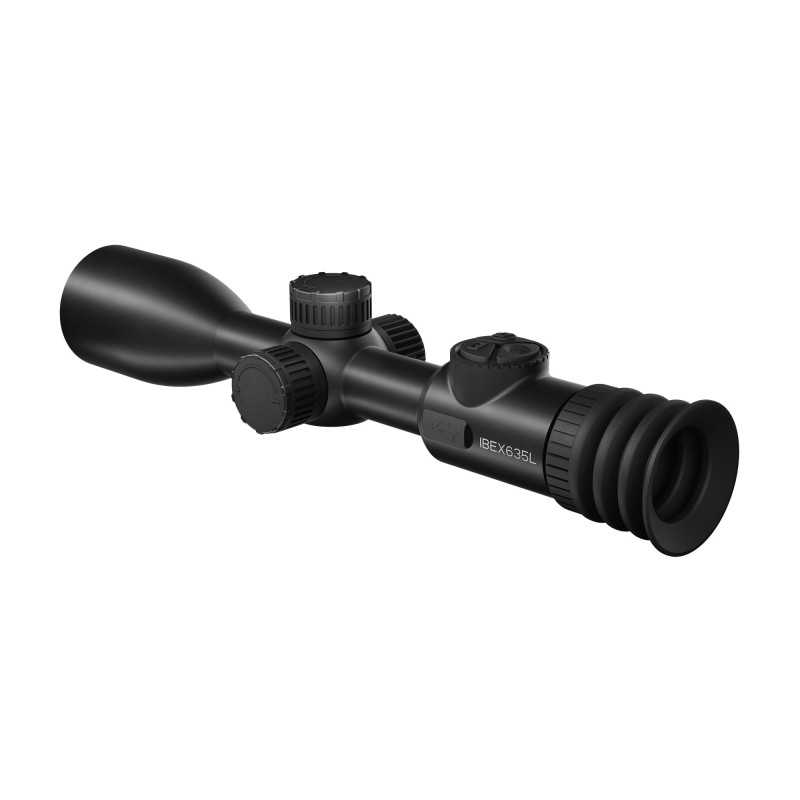

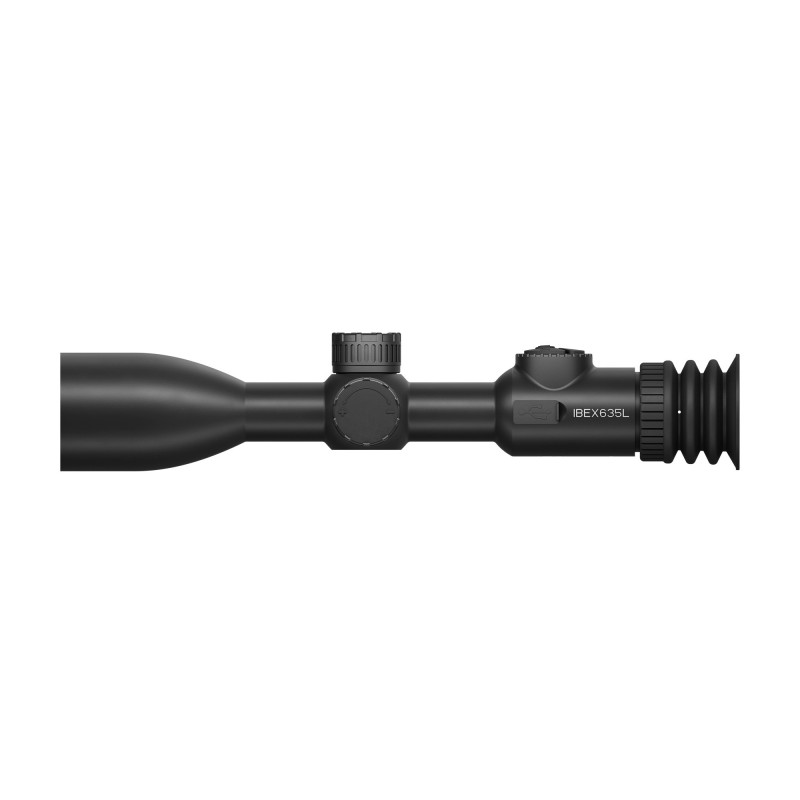

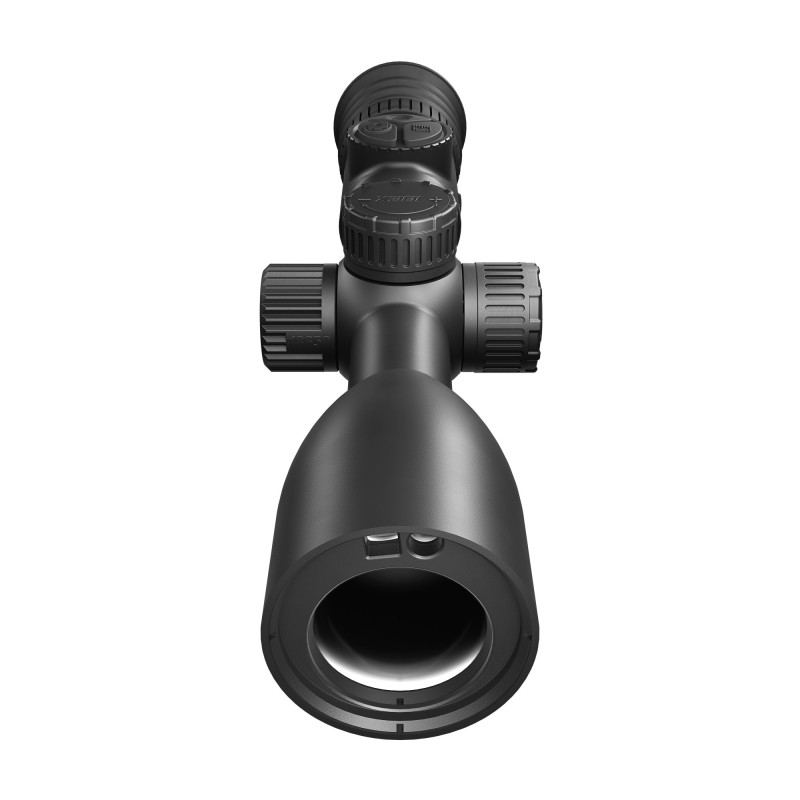

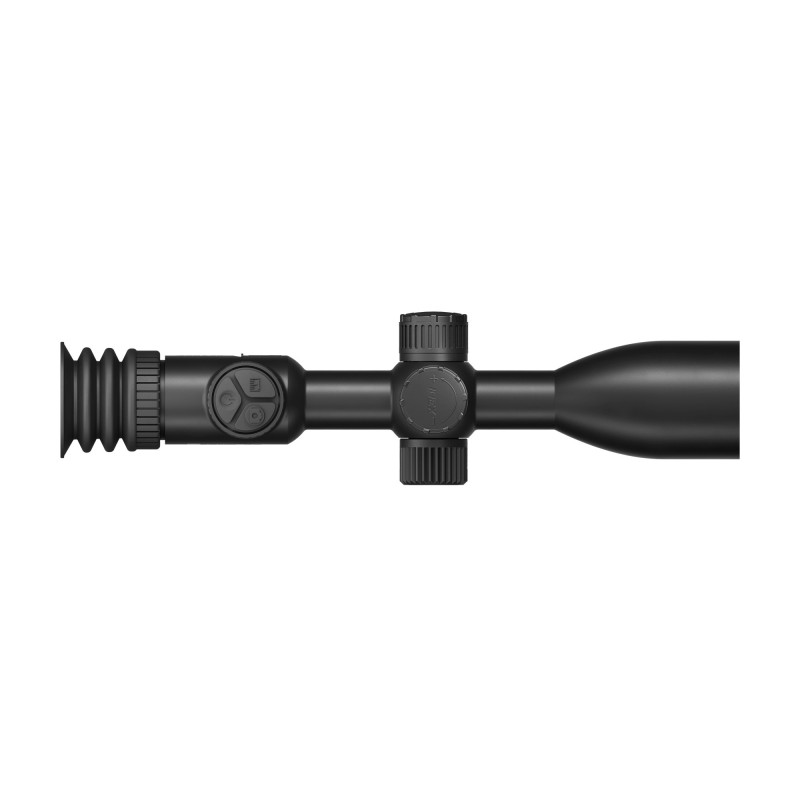

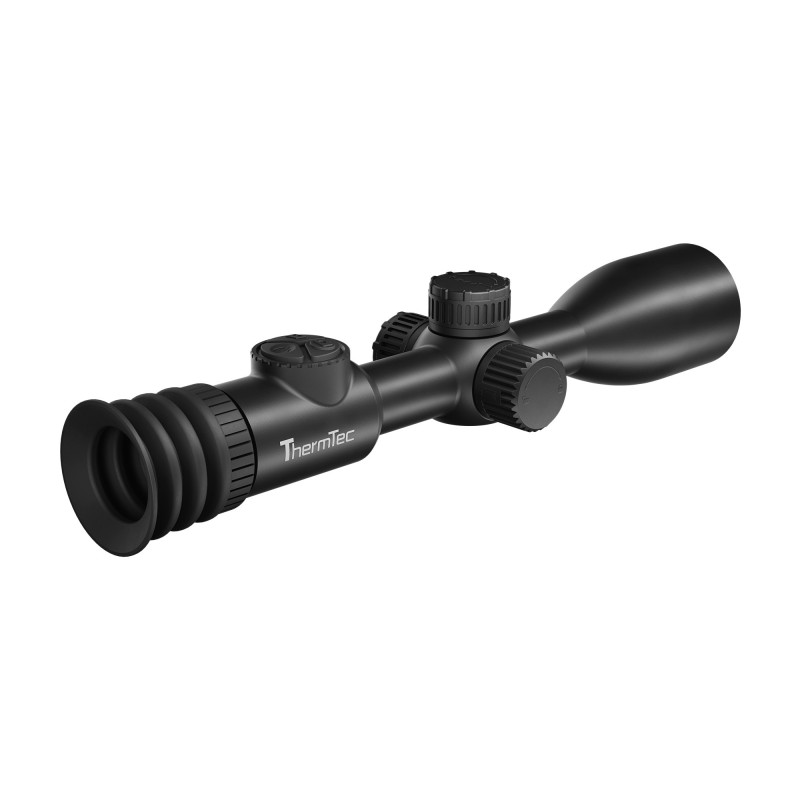

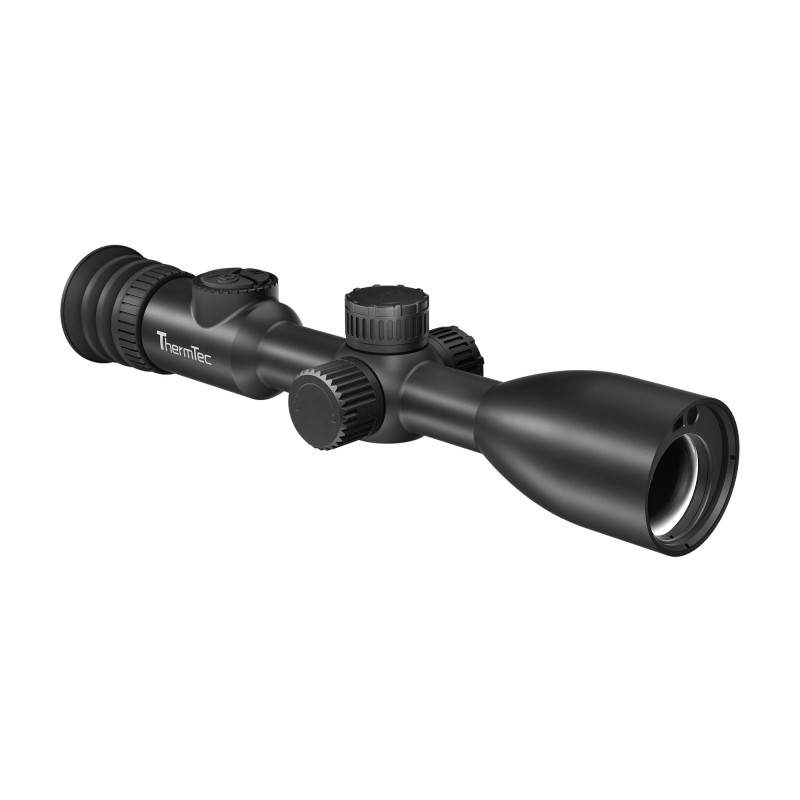

Thermal imaging scope ThermTec Ibex 635L

ThermTec IBEX 635L is a high-resolution thermal imaging sight designed for hunting and accurate target observation at longer distances. It features a 640×512 resolution, 12 µm thermal sensor with <18 mK NETD and a 35 mm F0.8 lens.

The 1800-metre detection range allows comfortable observation of targets at longer distances. The 35 mm lens provides detailed imaging and helps with accurate target identification.

The integrated 1000-metre laser rangefinder (LRF) allows you to quickly and conveniently measure the distance to a target. The built-in ballistic calculator helps determine a more accurate aiming point according to shooting conditions.

The 1600×1200 resolution 0.5" AMOLED display provides a clear and detailed image. The 50 Hz refresh rate ensures smooth viewing of moving targets.

Thermal Super Resolution technology improves image details and helps maintain high image quality when using digital zoom.

ThermTec AI Calibration reduces the need for frequent shutter calibration, minimizes image freezing and helps maintain a stable image when environmental conditions change.

The ThermTec AutoSight System (TASS) automatically returns the sight to the base magnification after using high magnification, allowing the user to quickly regain a wider field of view and continue tracking the target.

The central focus mechanism allows quick and convenient image focusing while maintaining a natural and comfortable operating position.

Specifications:

• Sensor: Uncooled
• Sensor resolution: 640×512 px
• Pixel size: 12 µm
• NETD: <18 mK
• Spectral range: 8–14 µm
• Frame rate: 50 Hz
• Lens: 35 mm / F0.8
• Detection range: Up to 1800 m
• Field of view: 12.5° × 10°
• Base magnification: 2.2×
• Digital zoom: 1–4×
• Eye relief: 50 mm
• Diopter adjustment: ±5D
• Display: 0.5" AMOLED
• Display resolution: 1600×1200 px
• Colour palettes: 6
• Reticles: 8
• Reticle colours: 5
• LRF rangefinder: Up to 1000 m
• Ballistic calculator: Yes
• Thermal Super Resolution: Yes
• AI calibration: Yes
• TASS (AutoSight): Yes
• RAV – recoil-activated recording: Yes
• PIP – Picture-in-Picture: Yes
• Photo and video recording: Yes
• Audio recording: Yes
• Internal memory: 64 GB
• Wi-Fi / Hotspot: Yes
• Battery: Replaceable, 1×18650
• Operating time: Up to 6 hours
• Recoil resistance: Up to 6000 J
• Mounting: Standard 30 mm rings
• Protection rating: IP67
• Operating temperature: -20°C to +50°C
• Weight: Approx. 770 g
• Dimensions: 342 × 86 × 73 mm
• USB Type-C: Data transfer and battery charging
