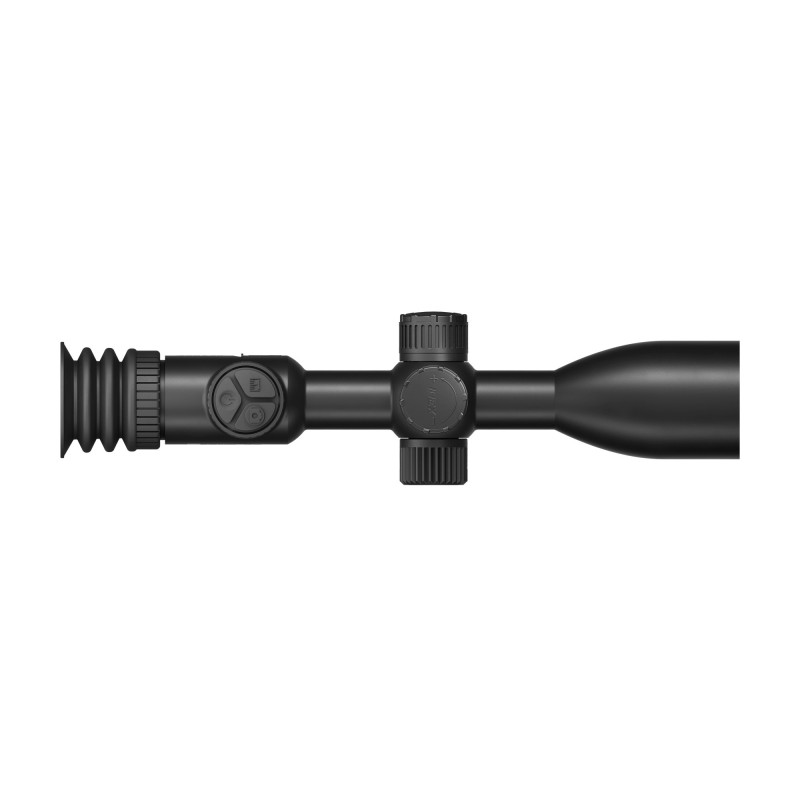

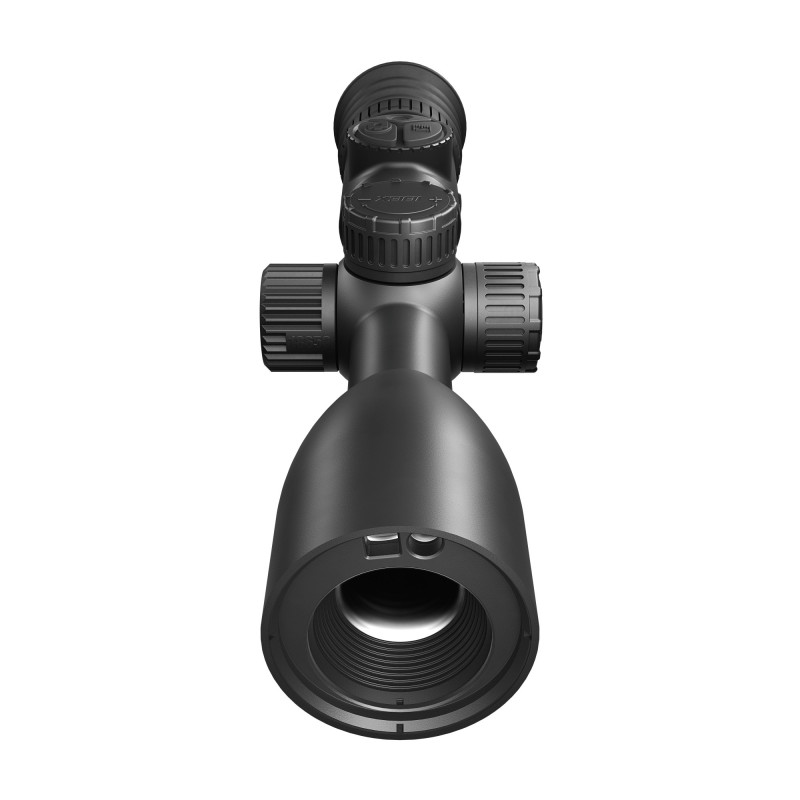

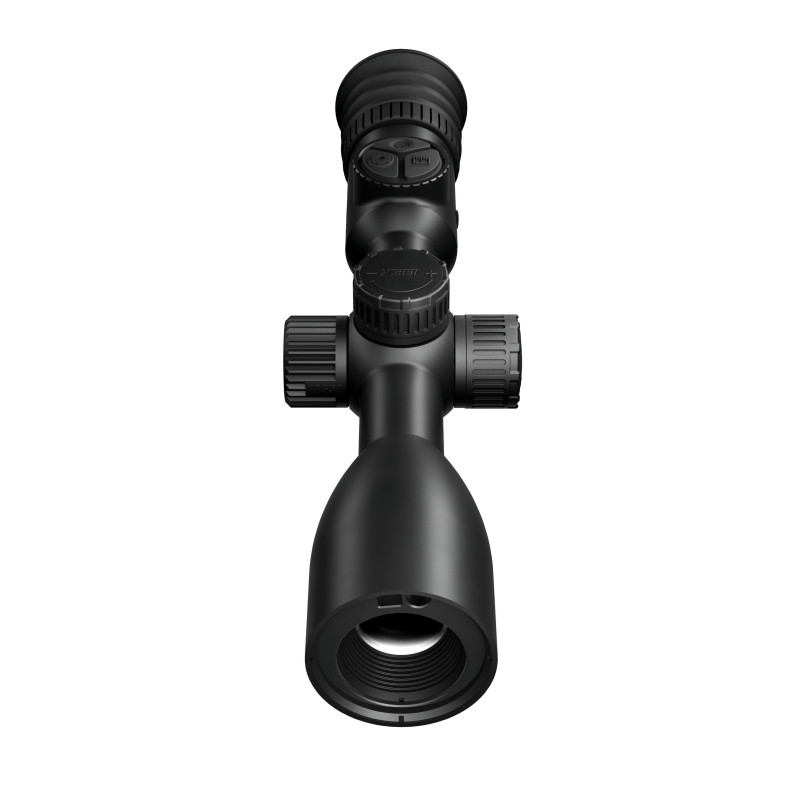

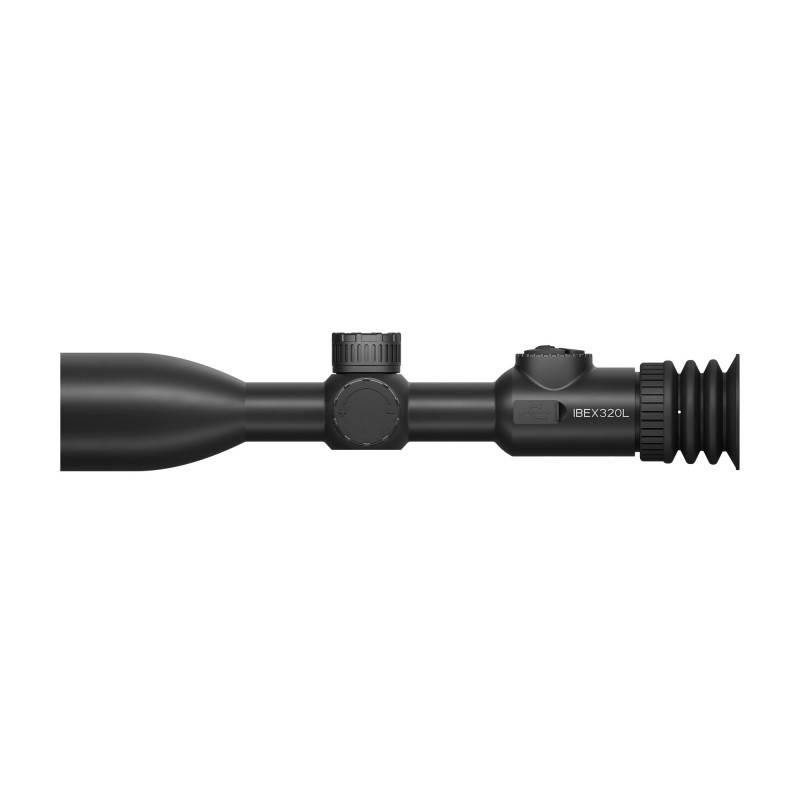

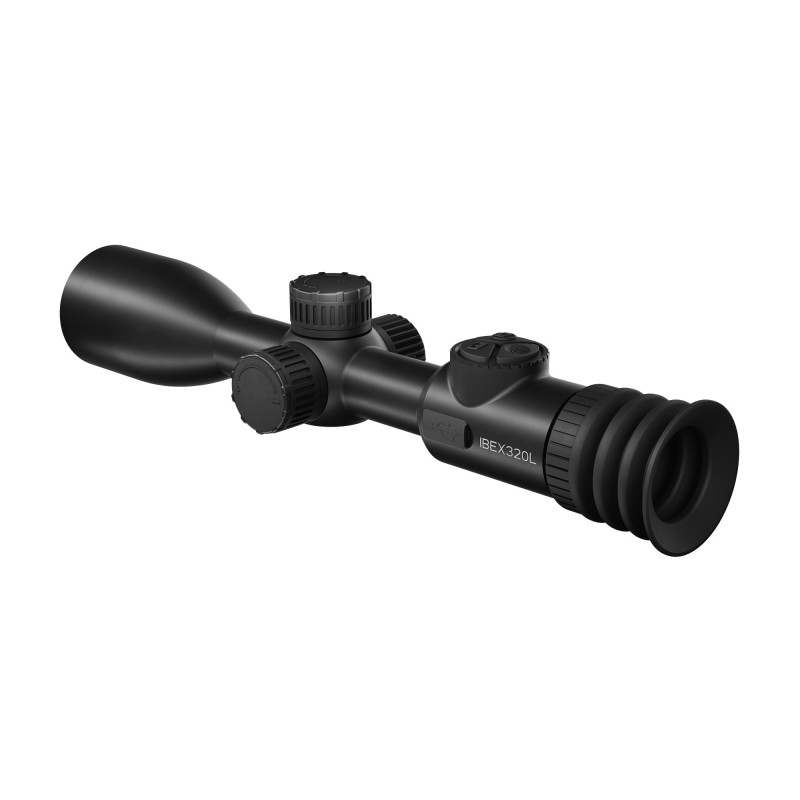

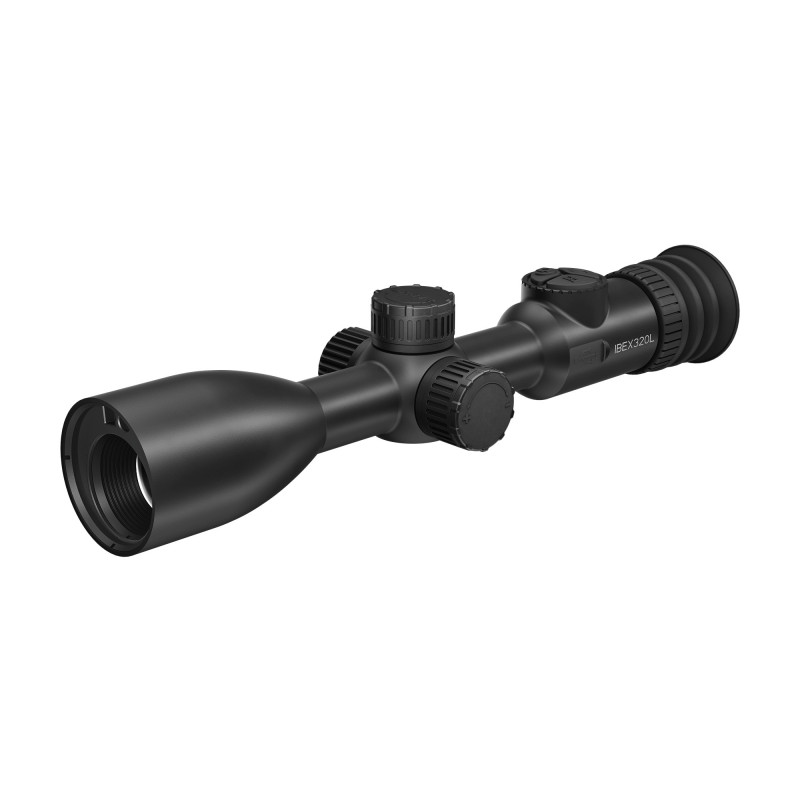

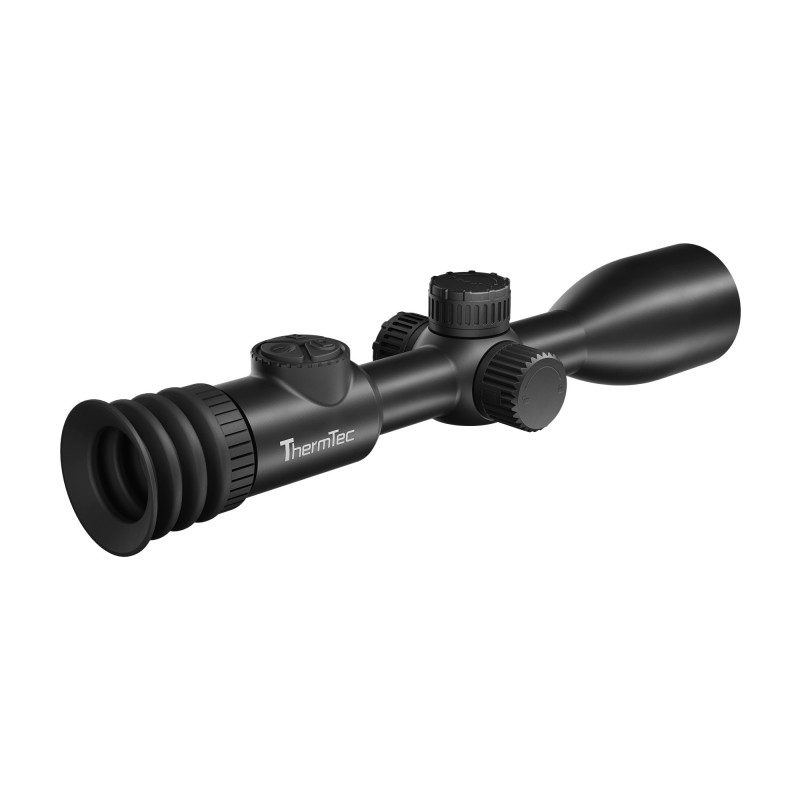

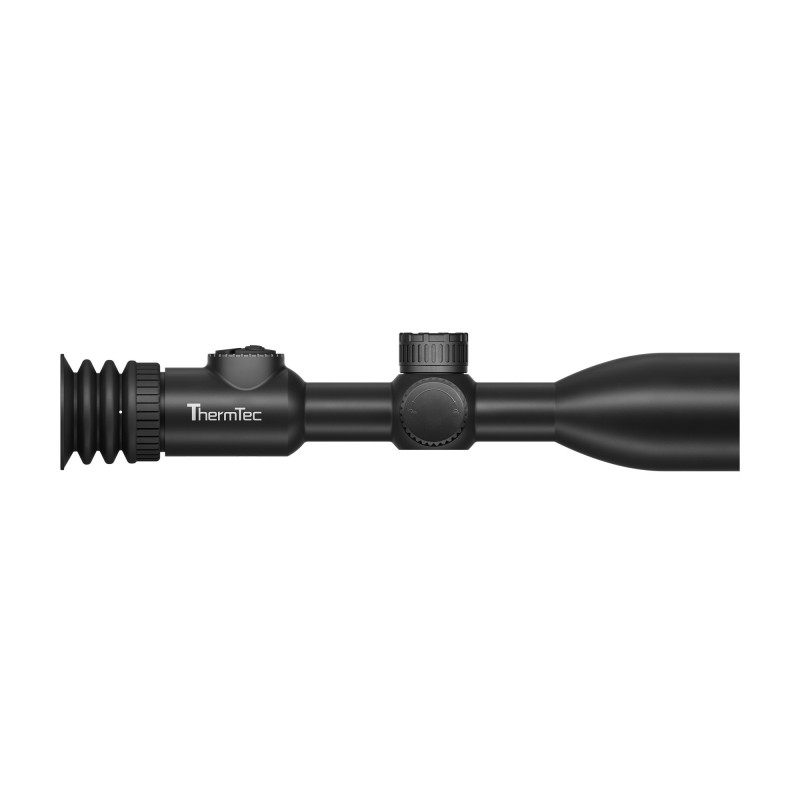

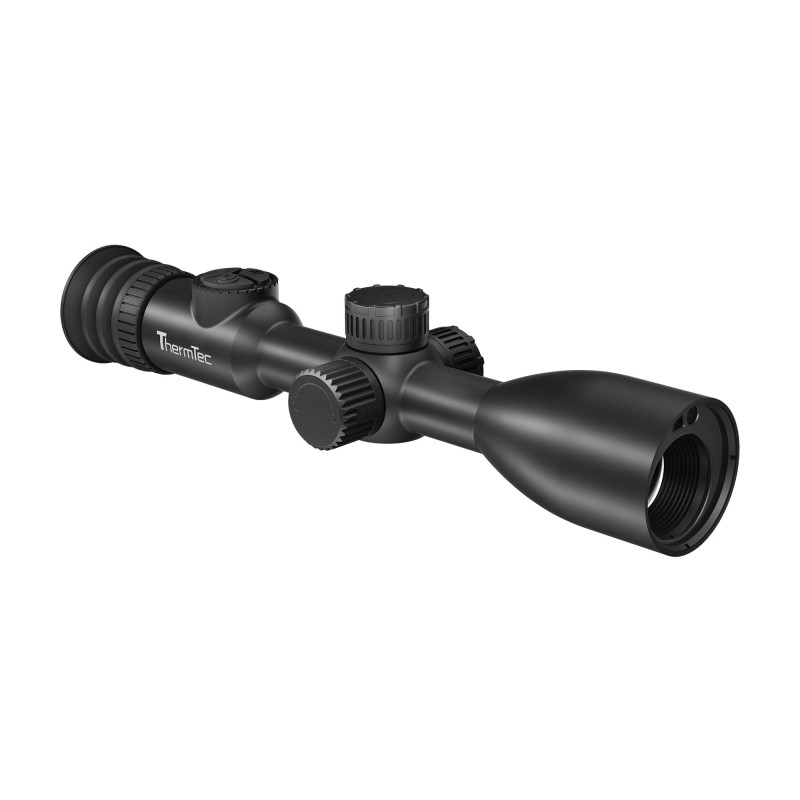

Thermal imaging scope ThermTec Ibex 320L

ThermTec IBEX 320L is a compact and lightweight thermal imaging sight designed for hunting. It features a wide field of view, fast target detection and convenient operation. The sight is equipped with a 384×288 resolution, 12 µm thermal sensor with <18 mK NETD and a 20 mm F0.9 lens.

The wide 13.1° × 9.8° field of view makes it easy to detect and track moving targets. The detection range reaches up to 1000 metres.

The integrated laser rangefinder (LRF) allows you to measure distances of up to 1000 metres. The sight also features a built-in ballistic calculator, helping to determine the correct aiming point more accurately.

The ThermTec IBEX 320L features a high-resolution 1600×1200 AMOLED display, providing a clear and detailed image. The 1× to 4× digital zoom allows comfortable observation at different distances.

The 20 mm F0.9 lens provides a wide 13.1° × 9.8° field of view, making the IBEX 320L ideal for observing larger areas and tracking moving targets.

The laser rangefinder allows you to quickly determine the distance to a target up to 1000 metres. This provides additional information when assessing the target and selecting the appropriate aiming point.

The integrated ballistic calculator helps calculate the aiming point based on the shooting angle and other selected parameters.

Thermal Super Resolution image processing technology improves fine details and helps maintain good image quality when using digital zoom.

The AI calibration system reduces the need for frequent shutter calibration, minimizes image freezing and helps maintain a stable image in changing environmental conditions.

The ThermTec AutoSight System (TASS) helps keep the target within the field of view when using higher digital magnification. After a shot, the system can automatically return to the base magnification.

The central focus mechanism allows quick and convenient image focusing while maintaining a natural and comfortable operating position.

Specifications:

• Sensor resolution: 384×288 px
• Pixel size: 12 µm
• NETD: <18 mK
• Frame rate: 50 Hz
• Lens: 20 mm / F0.9
• Detection range: Up to 1000 m
• Field of view: 13.1° × 9.8°
• Base magnification: 2.1×
• Digital zoom: 1–4×
• Display: 0.5" AMOLED
• Display resolution: 1600×1200 px
• Colour palettes: 6
• Reticles: 8
• Reticle colours: 5
• Zeroing profiles: 6
• LRF rangefinder: Up to 1000 m
• LRF accuracy: ±1 m
• Ballistic calculator: Yes
• Thermal Super Resolution: Yes
• AI calibration: Yes
• TASS (AutoSight): Yes
• Picture-in-Picture: Yes
• RAV – recoil-activated recording: Yes
• Photo and video recording: Yes
• Audio recording: Yes
• Internal memory: 64 GB
• Wi-Fi: Yes
• Battery: Replaceable 18650
• Operating time: Up to 6 hours
• Recoil resistance: Up to 6000 J
• Mounting: Standard 30 mm rings
• Protection rating: IP67
• Operating temperature: -20°C to +50°C
• Weight: Approx. 720 g
• Dimensions: 344 × 86 × 70 mm
