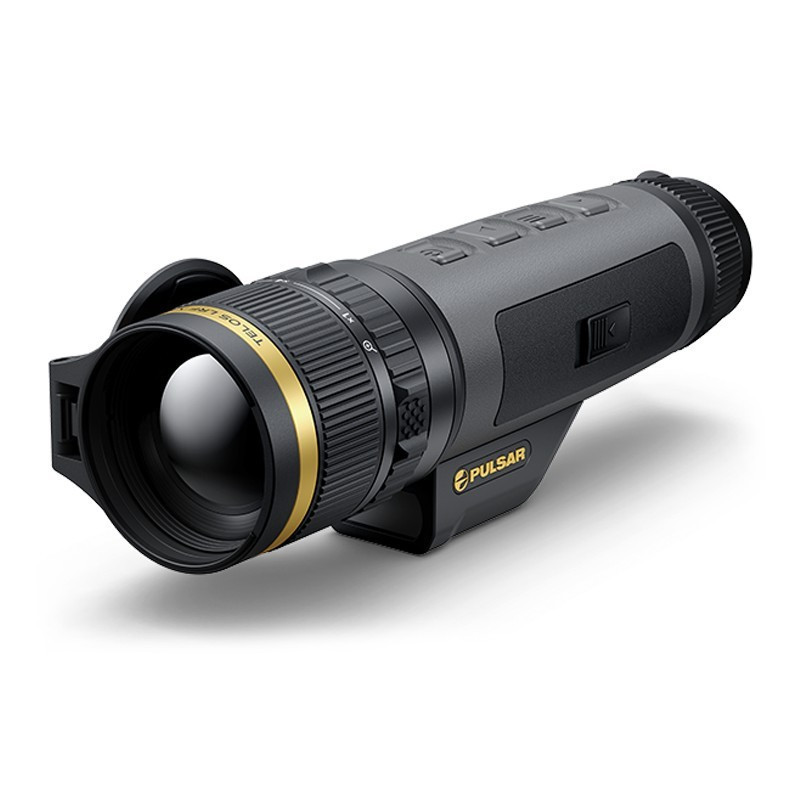

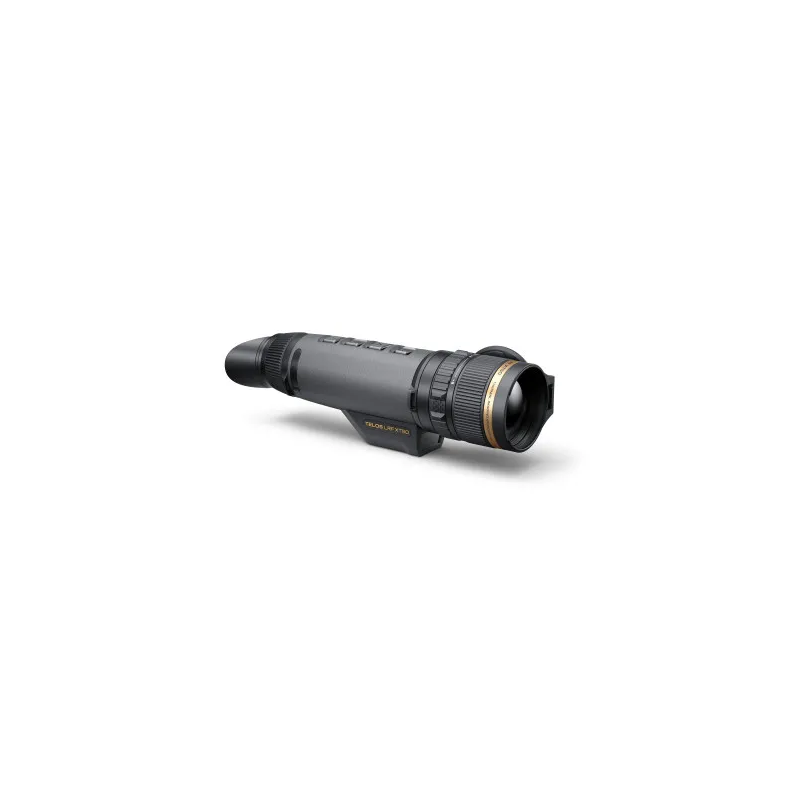

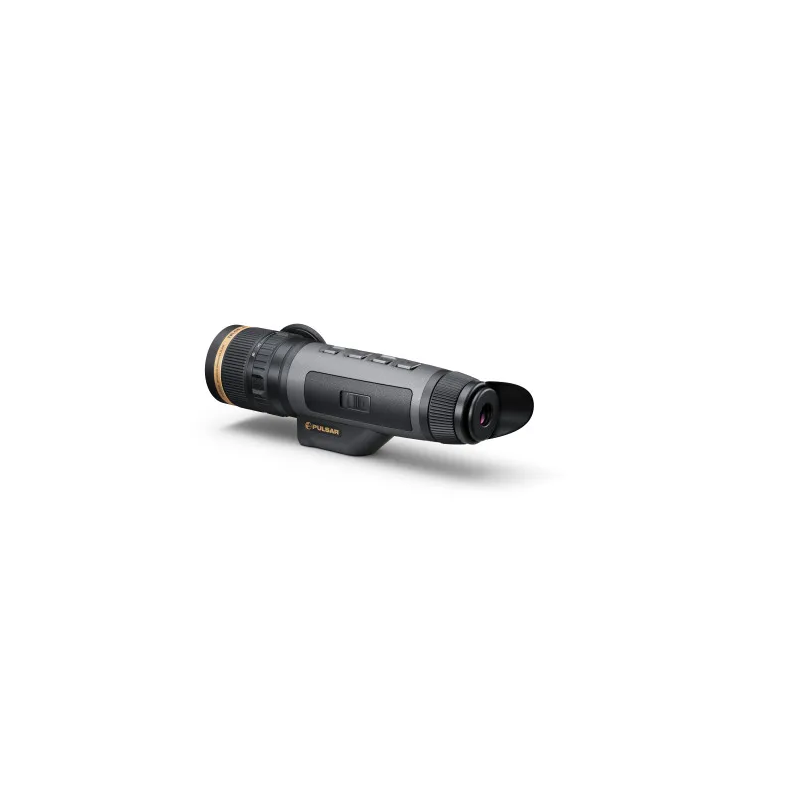

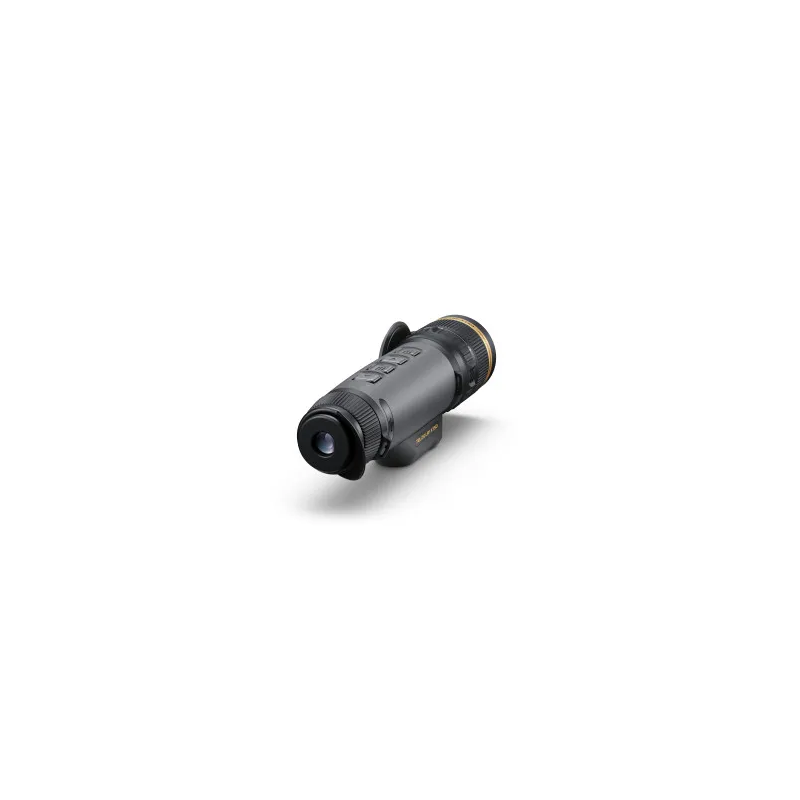

Thermal Imaging monocular Pulsar Telos LRF XT50

Unrivaled detail recognition, future-proof modular design, and built-in laser rangefinding. The Pulsar Telos LRF XT50 represents the pinnacle of thermal monoculars, offering extreme thermal sensitivity, a fast 50 mm germanium lens, and hardware upgradability.

The integrated precision laser rangefinder provides instant distance readings up to 1000 meters, while control rings on the objective lens allow smooth, intuitive zooming and focusing with a single hand.

Key Highlights:

Upgradable Modular Hardware Concept: Designed so components like optics, sensors, or rangefinders can be upgraded in the future without buying a whole new unit.

Extreme Thermal Sensitivity (<20 mK NETD): Detects minute temperature differences even in adverse weather conditions like rain, fog, or heavy humidity.

Integrated Precision LRF: Accurately measures distances up to 1000 meters with a precision of ±1 meter.

Lens-Mounted Control Rings: Offers smooth digital zoom and precise manual focus adjustments directly via tactile rings on the objective barrel.

Extended Battery Life: Powered by a quick-change LPS 7i Li-Ion battery pack delivering over 8 hours of continuous operation.

Main specifications:

Sensor: @12 µm 1280x1024
Objective lens: F50 / 1.0
Magnification, x: 2 - 16 (with Zoom Boost – 24x)
FOV (HxV), degrees :17.5
FOV (HxV), m@100m: 30.7
Diopter Adjustment, D: -5/+4
Detection range: 2300 m

Sensor:

Type: uncooled microbolometer
Resolution, pixels: 1280x1024
Pixel pitch, µm: 12
Sensor NETD, mK: < 40
System NETD, mK: < 20
Frame rate, Hz: 5

Optics:

Objective lens: F50 / 1.0
Magnification, x: 2 - 16 (with Zoom Boost – 24x)
FOV (HxV), degrees: 17.5
FOV (HxV), m@100m: 30.7
Diopter Adjustment, D: -5/+4
Eye relief, mm: 13

Display:

Type: AMOLED HD
Resolution, pixels: 1920x1080

Range performance:

Detection range, m: 2300 m

Laser rangefinder:

Max. measuring range, m: 1200
Measurement accuracy, m: ± 1
Safety class for laser equipment according to IEC 60825-1:2014:1
Wavelength, nm: 905

Video recorder

Video / photo resultion, pixel: 1440x1080
Video / photo format: .mp4 / .jpg
Build-in memory, GB: 128

Bluetooth

Wireless protocol: BLE 5.0

WI-FI

Wireless protocol: Wi-Fi
Wireless standard: IEEE 802.11 b/g/n/ac (WPA)
Frequency, Ghz: 2.4 / 5

Environmental characteristics

Degree of protection IP code (IEC60529): IPX7 (waterproof)
Operating temperature range, °С: -25 – +40

Connections and compatibilities
Mount type: Adaptor for 1/4"
Supported application: Steam Vision 2, Steam Vision Ballistics

Power supply

Output voltage, V: 4.2-3.0
Battery type: LPS 7i Li-Ion Battery Pack
Capacity, mAh: 6400
Operating time on battery pack, h at t=22°С: 8h
External power supply, V: 5V; 9V (USB Type-C Power Delivery)

Weight & size

Body material: Plastic
Dimensions, mm: 242x72x77
Weight, kg: 0,73
SKU: 77524
