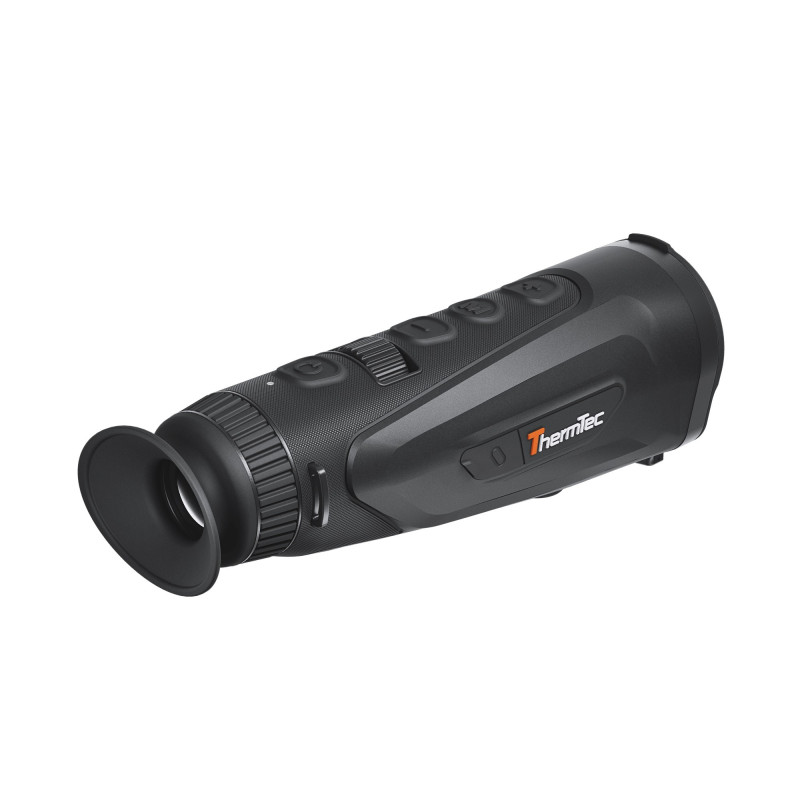

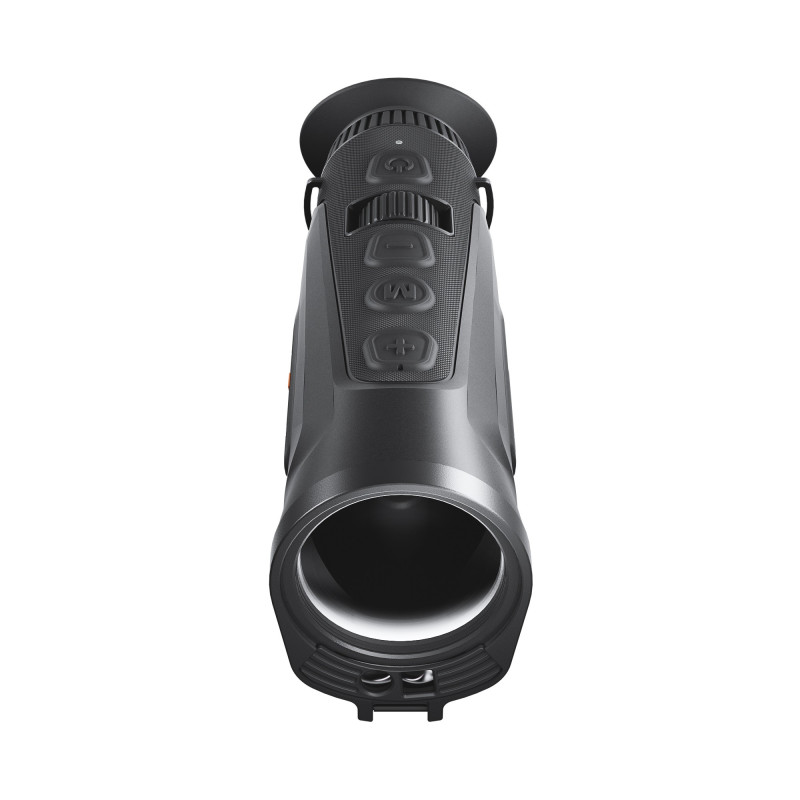

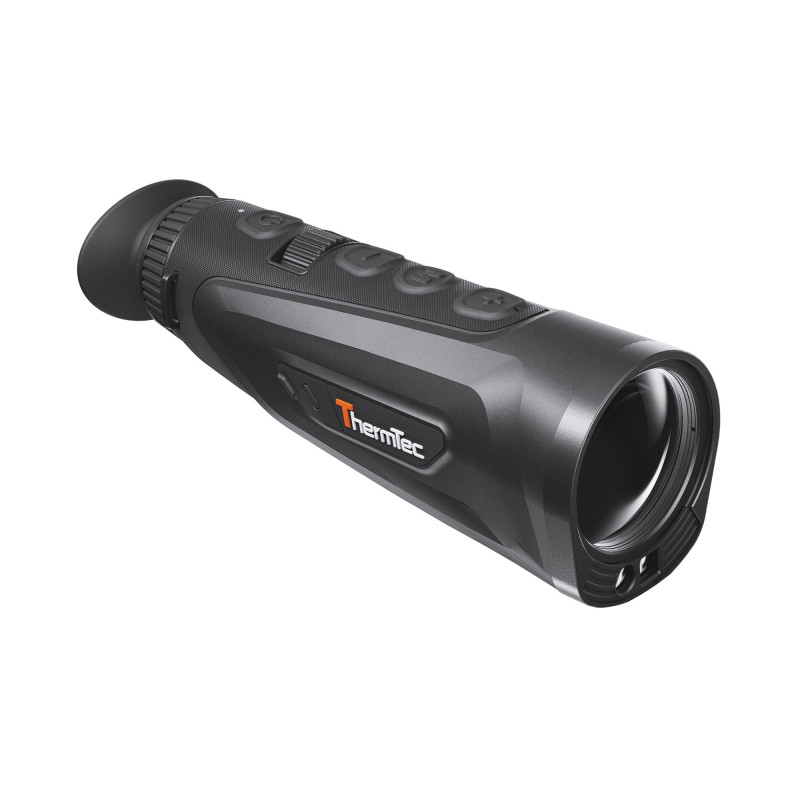

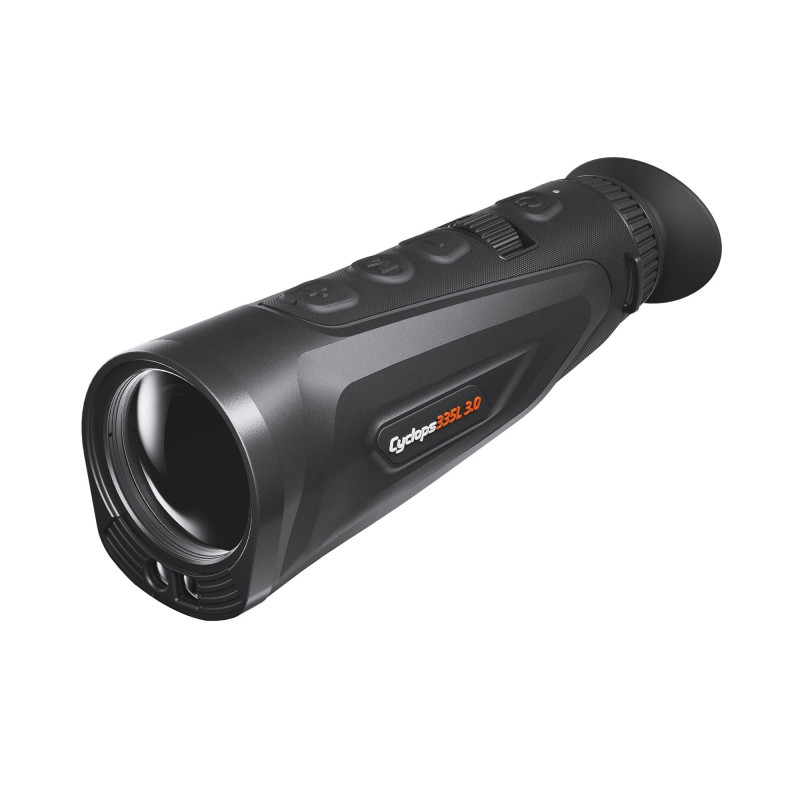

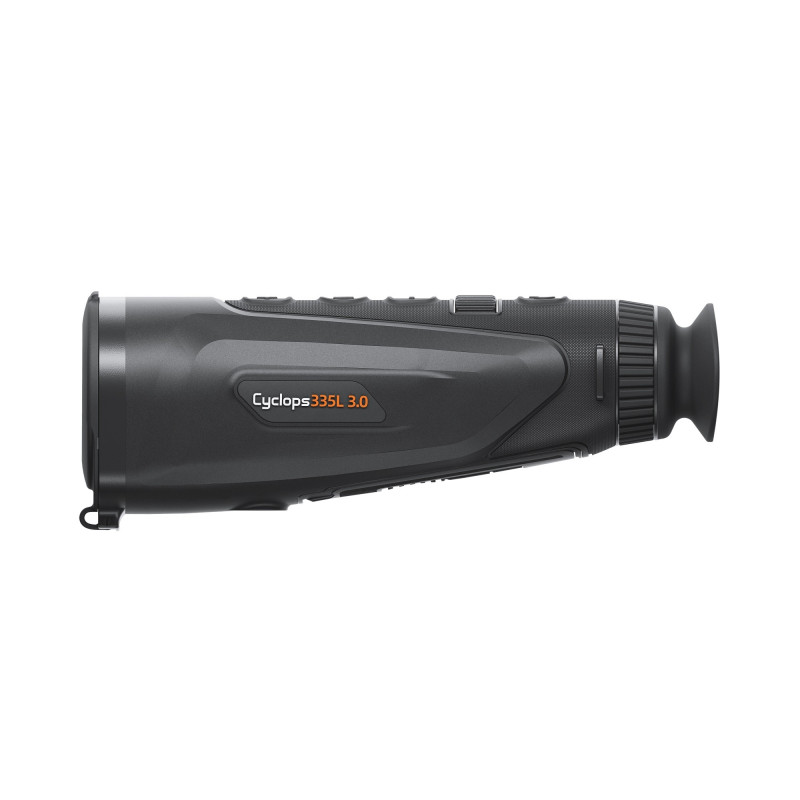

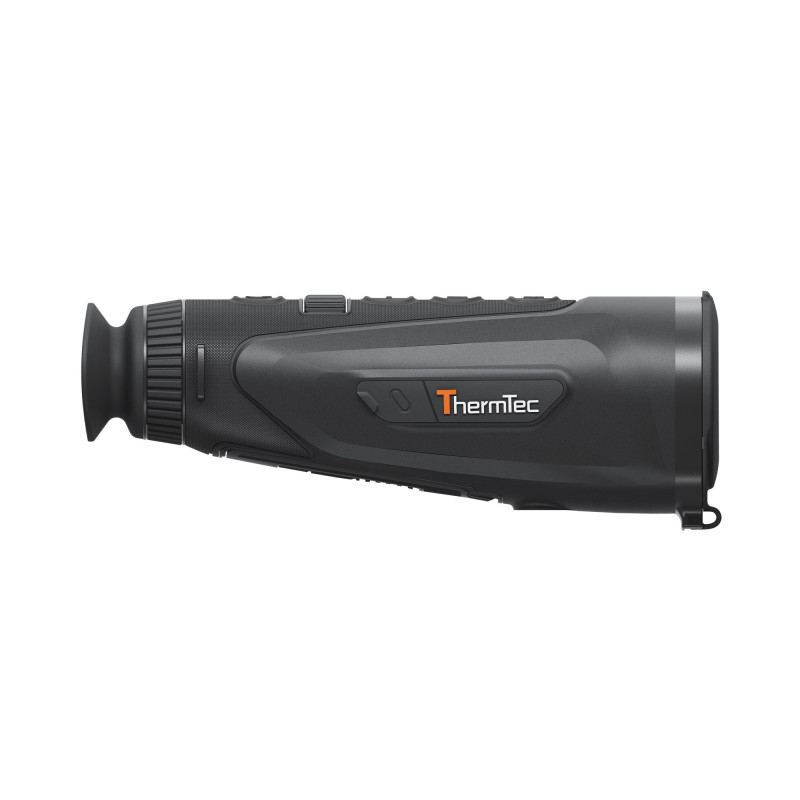

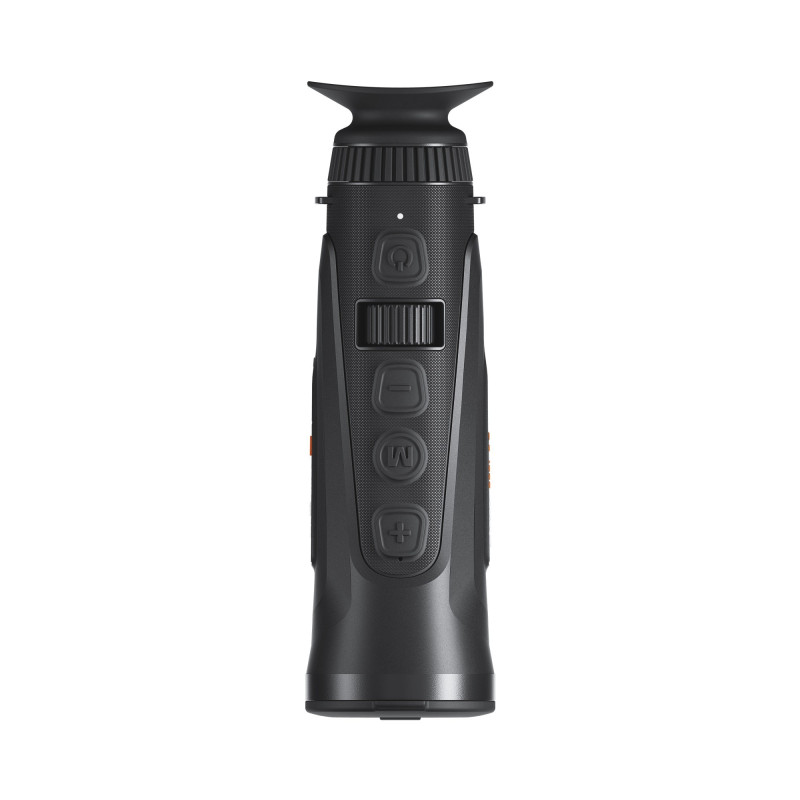

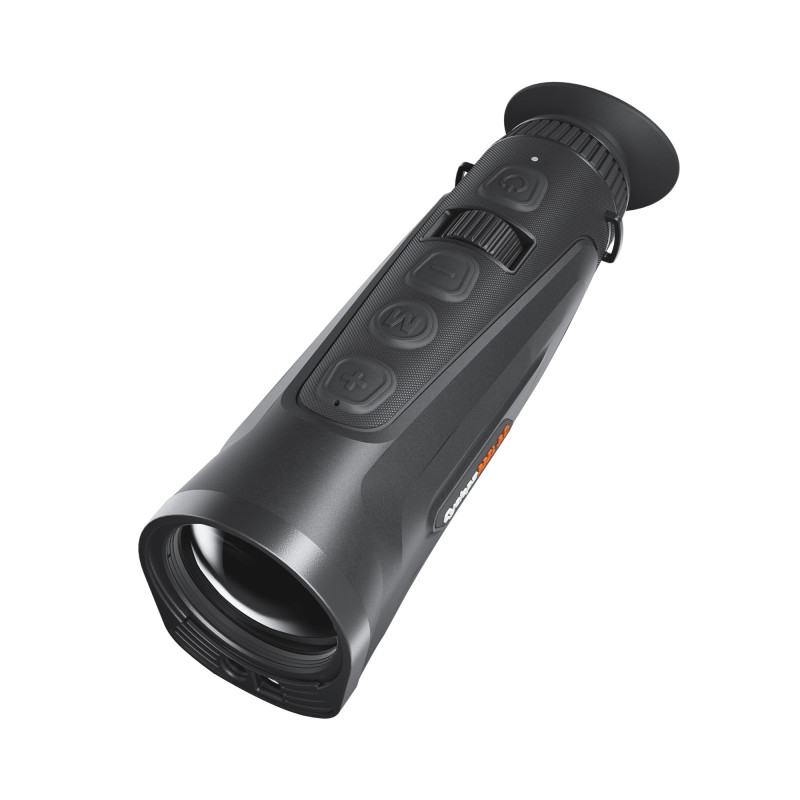

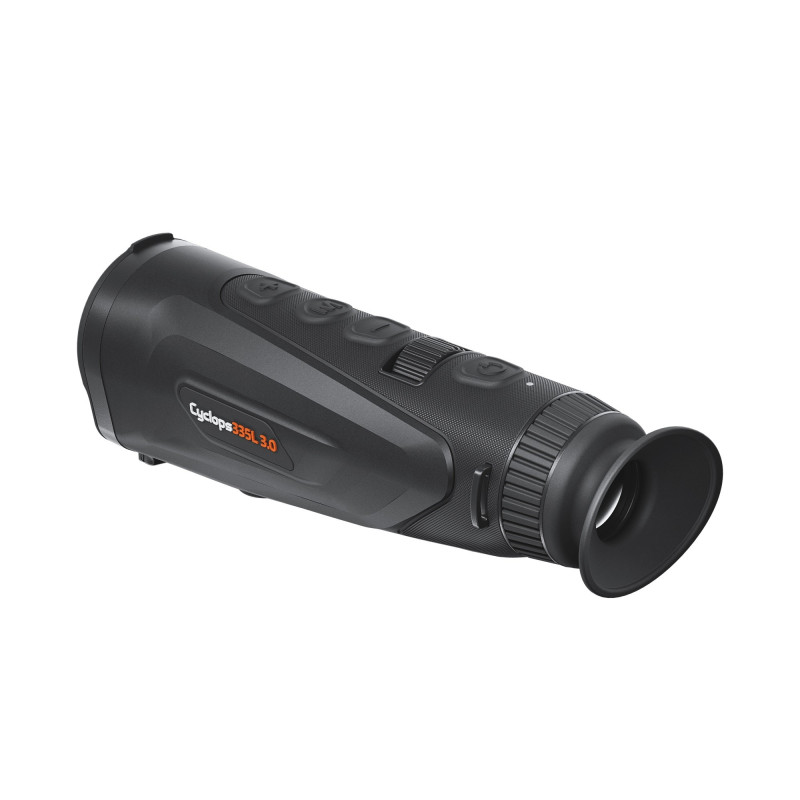

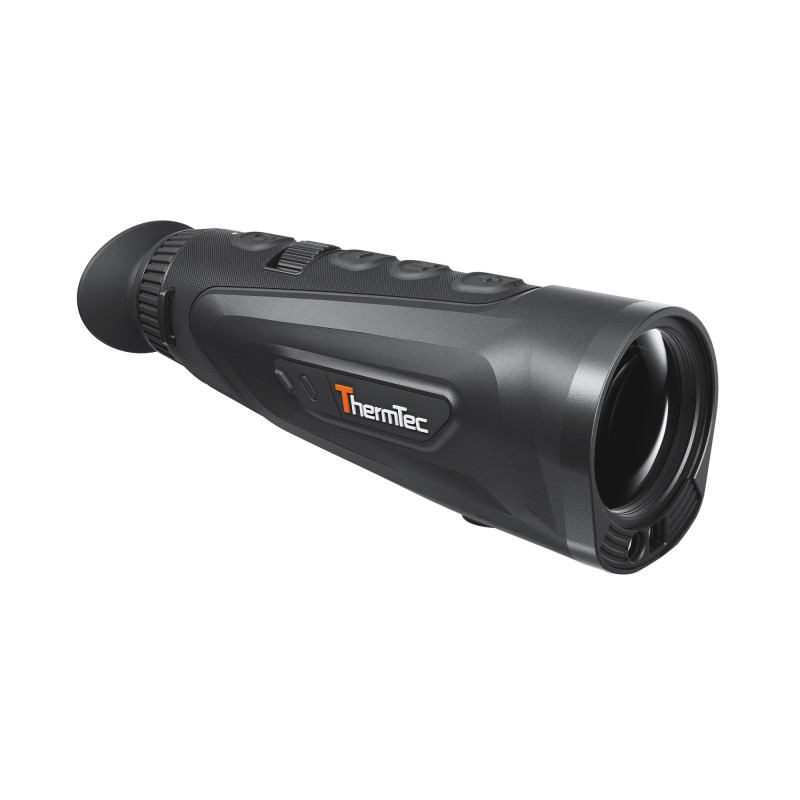

Thermal imaging monocular ThermTec Cyclops 335L 3.0

Cyclops 335L 3.0 is an advanced thermal imaging monocular designed for precise and stable field observation. The device features ultra-high sensitivity, AI-powered image processing, and an integrated laser rangefinder, making it ideal for hunting and professional outdoor use.

Key Advantages

• Ultra-sensitive NETD <15 mK sensor – detects even the smallest temperature differences
• High-resolution 1600×1200 AMOLED display (0.5") – bright and highly detailed image
• Integrated laser rangefinder (LRF) – accurate distance measurement up to 1000 m
• AI image processing – sharper, smoother, and more stable visuals
• Compact, ergonomic design – easy one-handed operation
• Long battery life – up to 7 hours with replaceable 18650 batteries

Image Quality & Performance. Cyclops 335L 3.0 delivers exceptional imaging accuracy even in challenging conditions:

• Sensor resolution: 384×288
• Pixel pitch: 12 μm
• Spectral range: 8–14 μm
• Frame rate: 50 Hz
• Detection range: up to 1800 m
• Objective lens: 35 mm / F0.8
• Field of view: 7.5° × 5.6° (13.2 m × 9.9 m / 100 m)
• Magnification: 4.3X
• Digital zoom: 1–4X (up to 17.2X with advanced processing)

Display & Image Control

• Display type: AMOLED
• Resolution: 1600×1200
• Screen size: 0.5 inch
• 6 color palettes (Forest / Target, etc.)
• Picture-in-Picture (PIP), Hot Track, OSD recording
• Photo and video playback

Features

• Automatic / manual calibration
• AI stabilization – reduces image freezing effect
• Continuous digital zoom
• Built-in recording
• Wi-Fi (app-based remote control)
• Hotspot function
• Multi-language interface

Power Supply

• 2 × replaceable and rechargeable 18650 batteries
• Operating time: up to 7 hours
• USB-C charging and data transfer

 Durability

• Operating temperature: -20°C to +50°C
• Protection class: IP67 (water and dust resistant)
• Lightweight and durable body: 435 g ±5 g
• Dimensions: 87 × 56 × 71 mm

Laser Rangefinder (LRF)

• Wavelength: 905 nm
• Measuring range: up to 1000 m
• Accuracy: ±1 m
• Class 1 laser safety

Package Includes

• Cyclops 335L 3.0 device
• Rechargeable battery
• Charger
• USB-C cable
• Lens cleaning cloth
• Protective accessories
