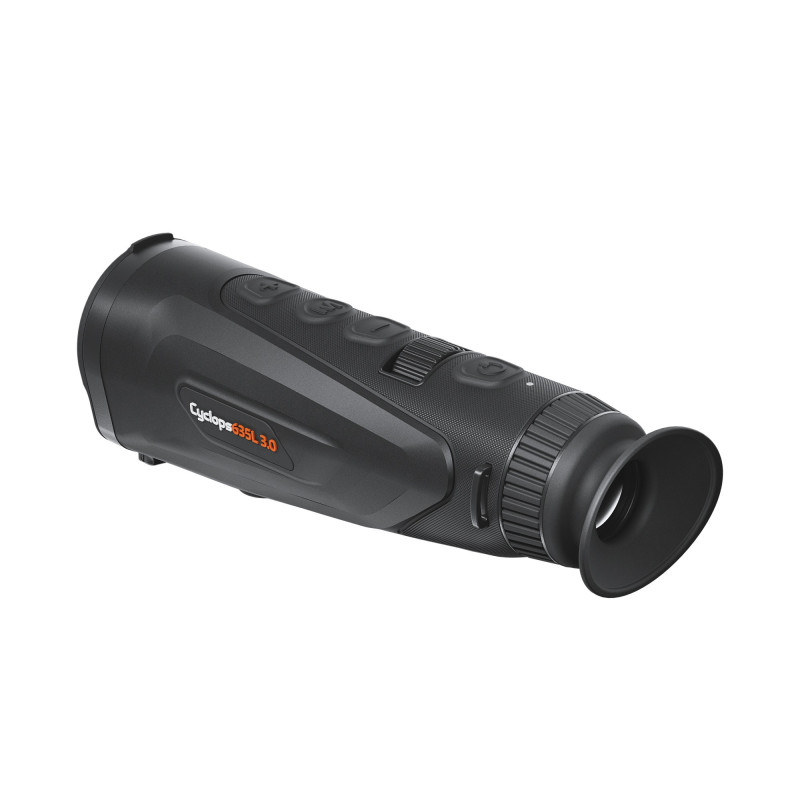

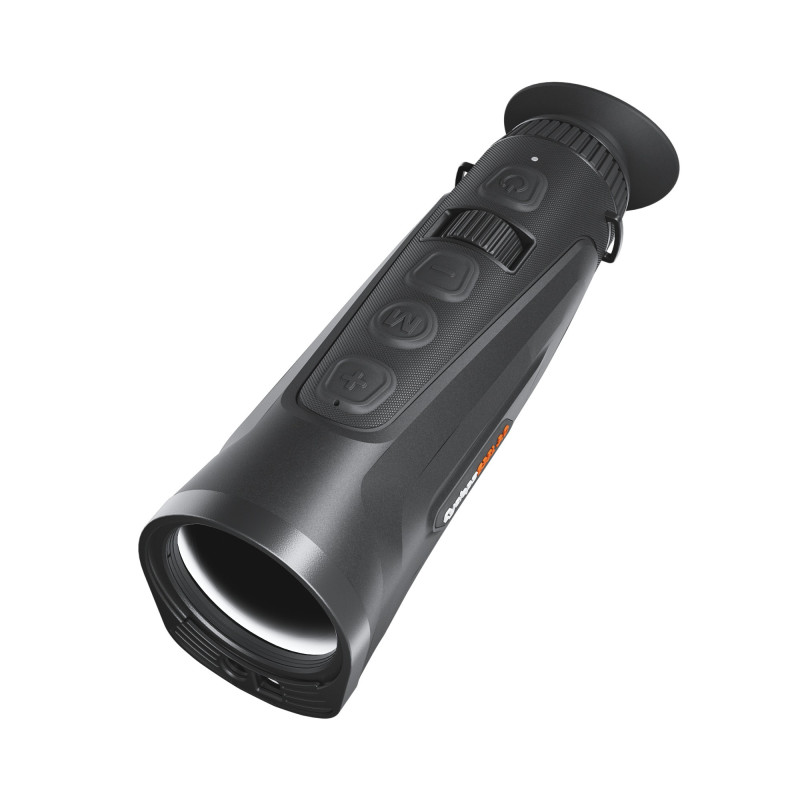

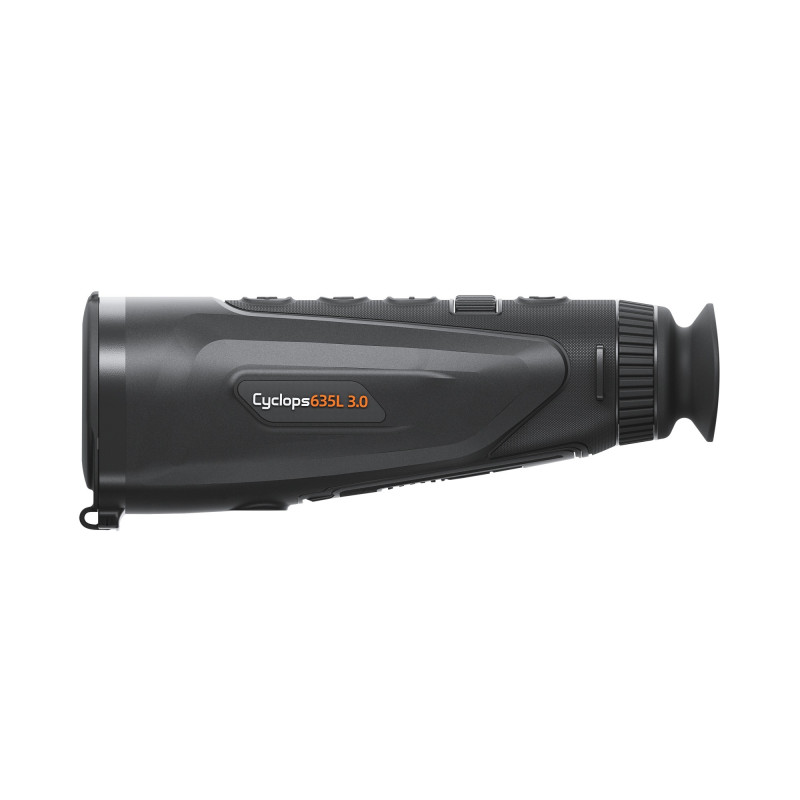

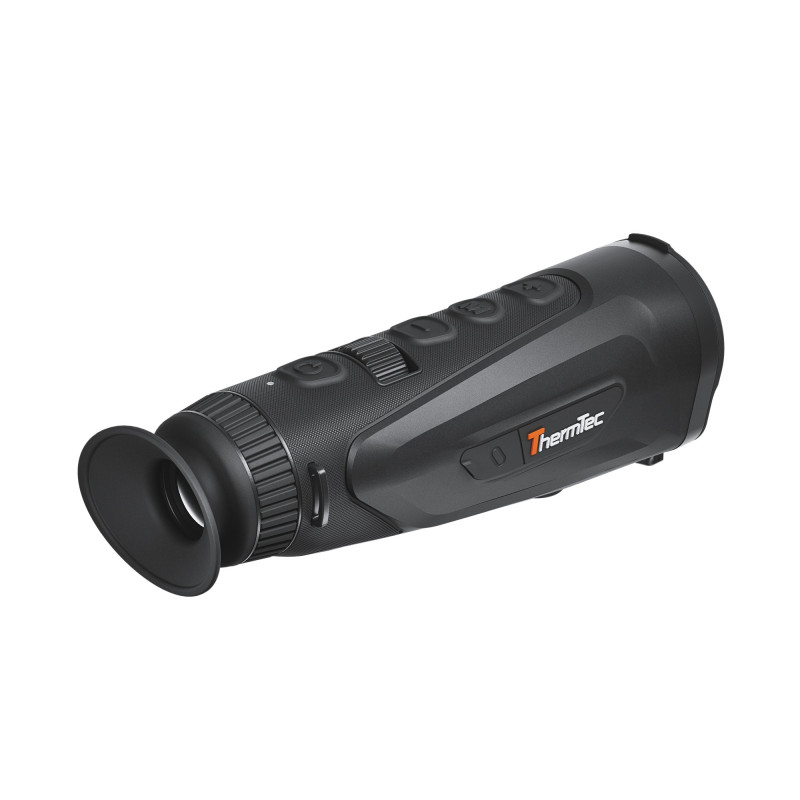

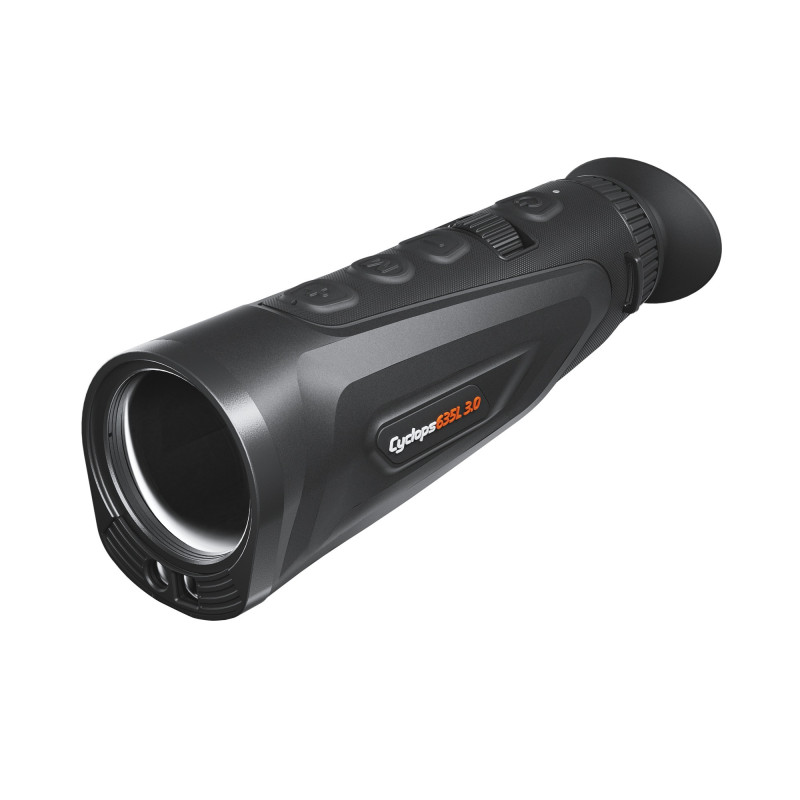

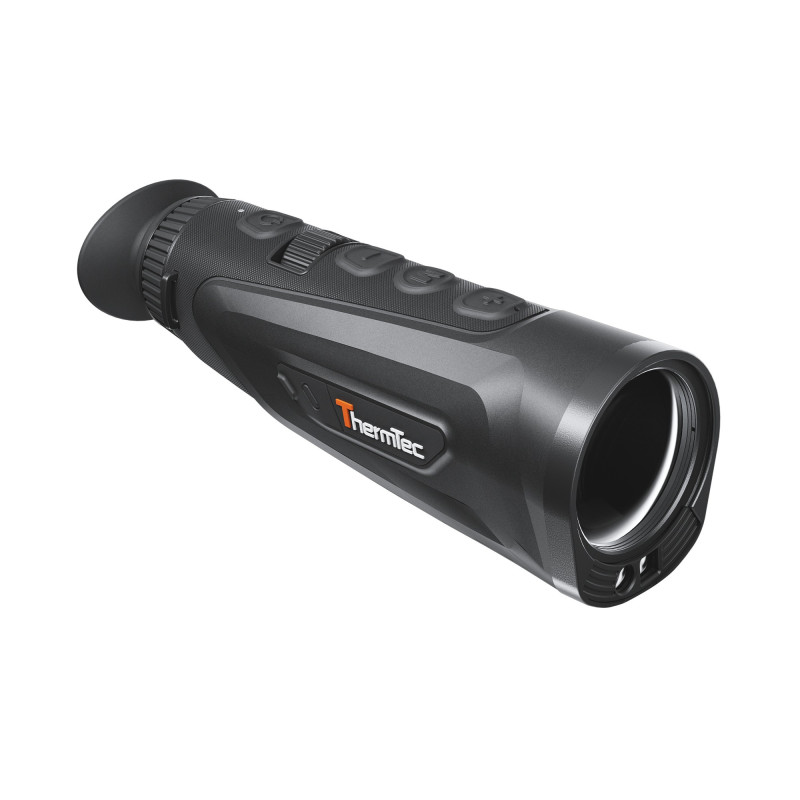

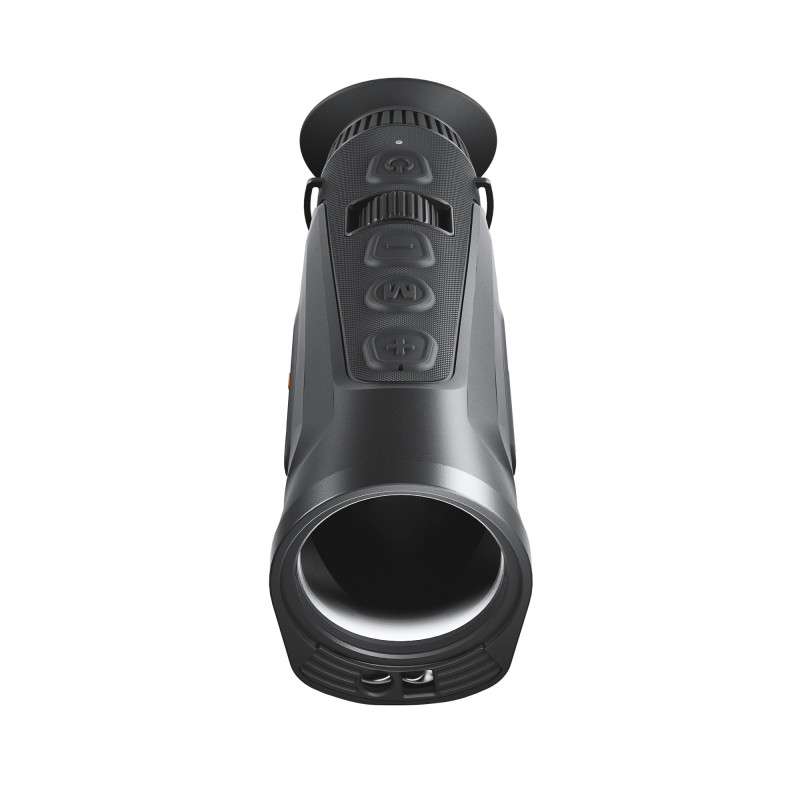

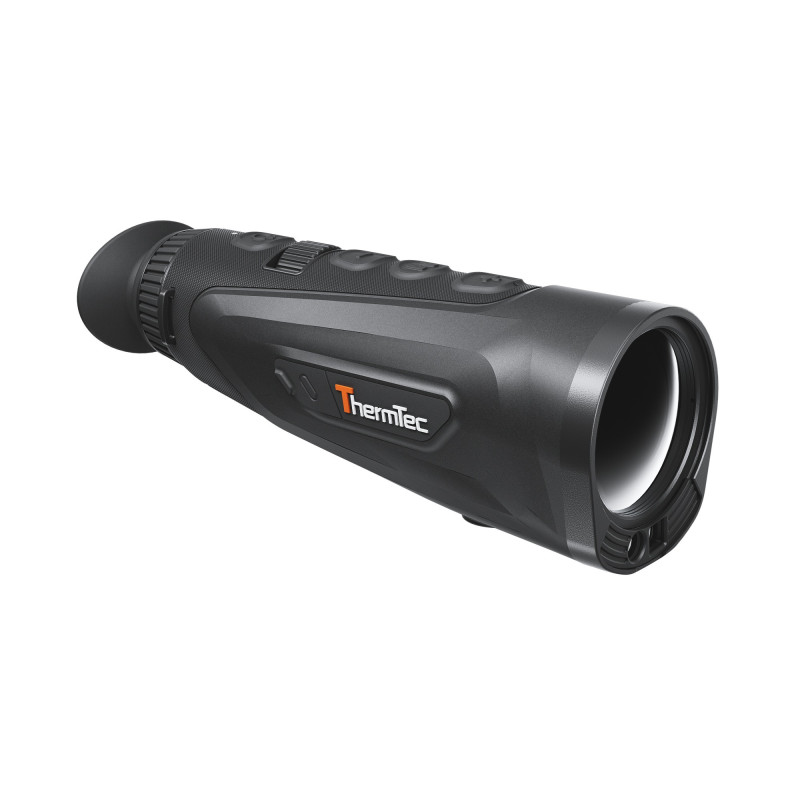

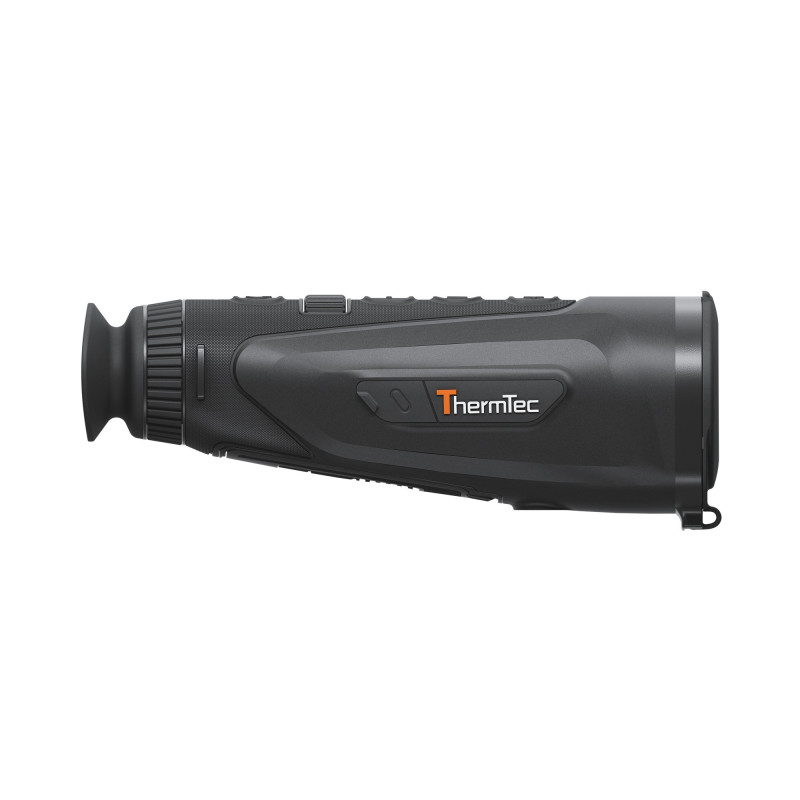

Thermal imaging monocular ThermTec Cyclops 635L 3.0

ThermTec Cyclops 635L 3.0 is a high-resolution thermal imaging monocular designed for hunting and outdoor observation. It features a 640×512 resolution, 12 µm thermal sensor with a highly sensitive <15 mK NETD and a 35 mm F0.8 lens.

The 1800-metre detection range allows you to observe targets at long distances, while the 35 mm lens provides detailed thermal images and a 12.5° × 10° field of view for comfortable observation of larger areas.

The integrated 1000-metre laser rangefinder (LRF) allows quick and accurate distance measurement to the target. The built-in LRF is integrated into the monocular body, keeping the design compact and convenient to use.

The 1600×1200 resolution 0.5" AMOLED display provides a clear and detailed viewing experience with excellent image contrast and fine thermal detail.

The 2.5× base magnification combined with 1–4× continuous digital zoom allows you to switch easily between wide-area observation and detailed target inspection. Thermal Super Resolution technology helps maintain image detail when using digital zoom.

The ThermTec AI Calibration system reduces the need for frequent shutter calibration, minimizes image freezing and helps maintain a stable and clear image when environmental conditions change.

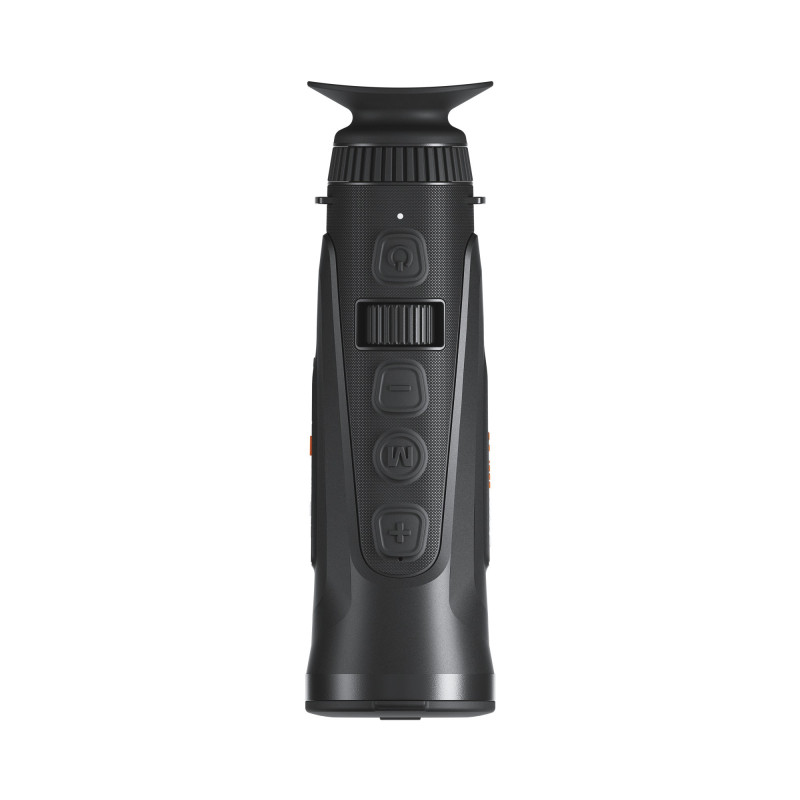

The top-mounted focus wheel allows precise and comfortable one-handed focusing. This makes it easy to adjust the image while keeping the monocular stable during observation.

The Cyclops 635L 3.0 uses replaceable and rechargeable 18650 batteries. Two batteries can provide up to 14 hours of total operating time, allowing longer observation sessions in the field.

Specifications:

• Sensor: VOx uncooled
• Sensor resolution: 640×512 px
• Pixel size: 12 µm
• NETD: <15 mK
• Spectral range: 8–14 µm
• Frame rate: 50 Hz
• Lens: 35 mm / F0.8
• Detection range: Up to 1800 m
• Field of view: 12.5° × 10°
• Field of view at 100 m: 22.0 m
• Base magnification: 2.5×
• Digital zoom: 1–4× continuous
• Eye relief: 20 mm
• Diopter adjustment: ±5D
• Display: 0.5" AMOLED
• Display resolution: 1600×1200 px
• Colour palettes: 6
• Image modes: Forest / Rainy
• LRF rangefinder: Up to 1000 m
• LRF accuracy: ±1 m
• Thermal Super Resolution: Yes
• AI calibration: Yes
• Hot Track: Yes
• Picture-in-Picture: Yes
• Photo and video recording: Yes
• Video playback: Yes
• Internal memory: 64 GB
• Wi-Fi: Yes, two-way connection
• Hotspot: Yes
• App remote control: Yes
• Battery: Replaceable and rechargeable 18650
• Operating time: Up to 7 hours per battery
• Recoil resistance: Not applicable – handheld monocular
• Protection rating: IP67
• Operating temperature: -20°C to +50°C
• Weight: Approx. 470 g
• Dimensions: 181 × 62 × 63 mm
• USB Type-C: Charging and data transfer
