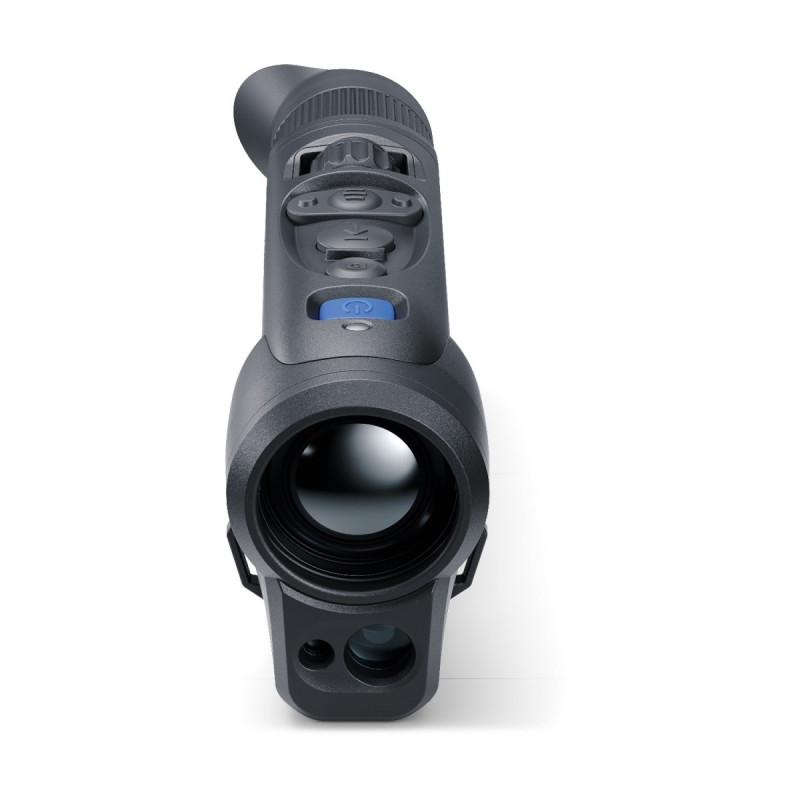

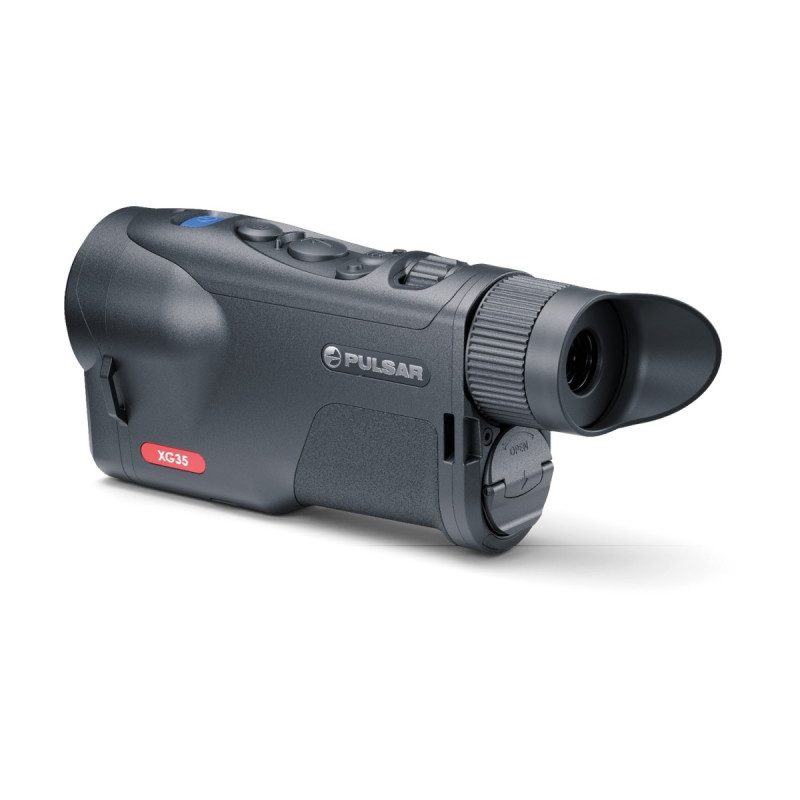

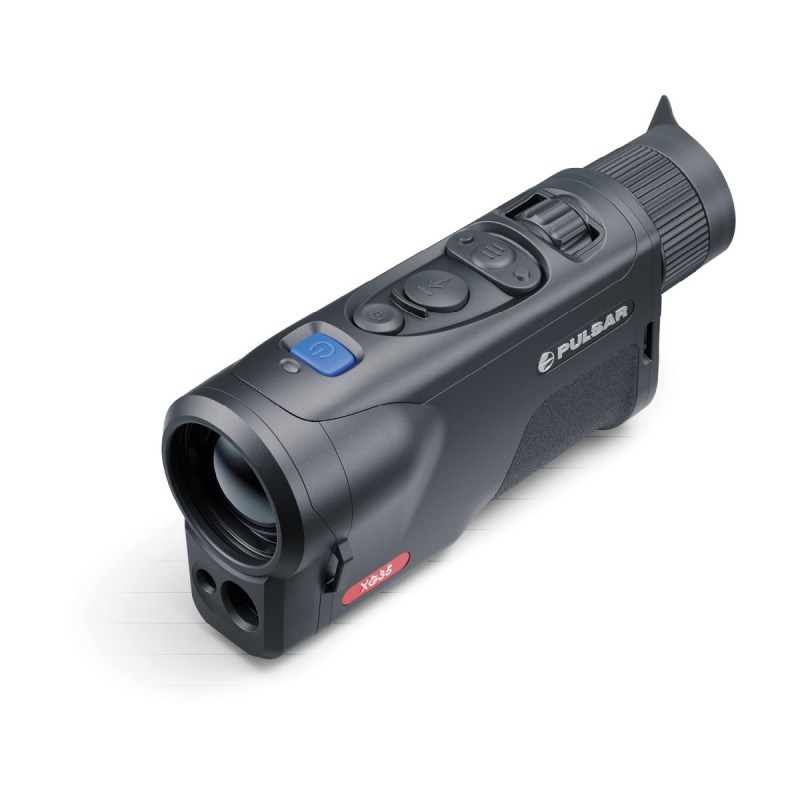

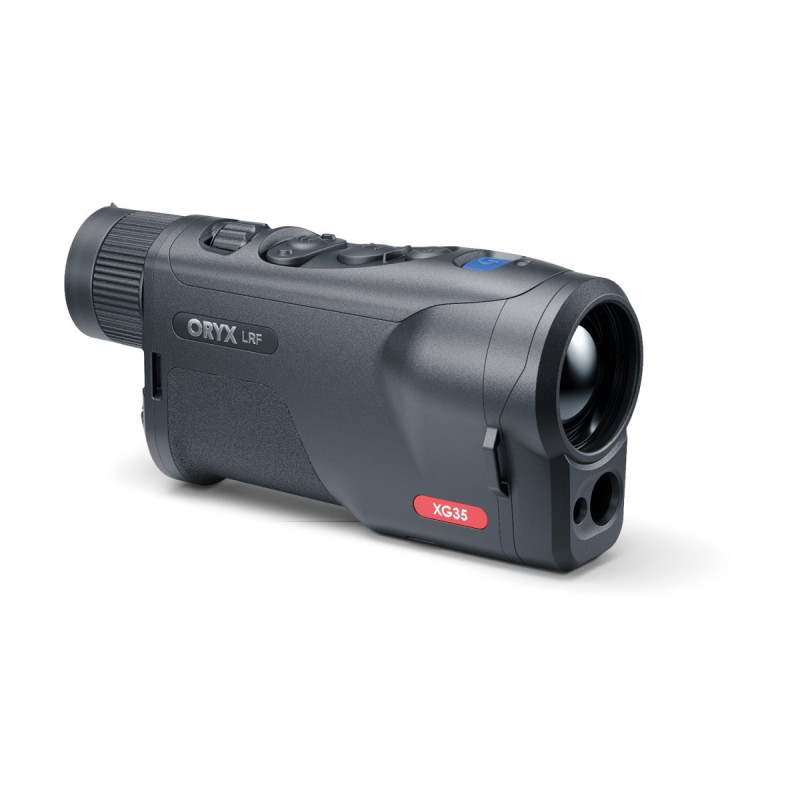

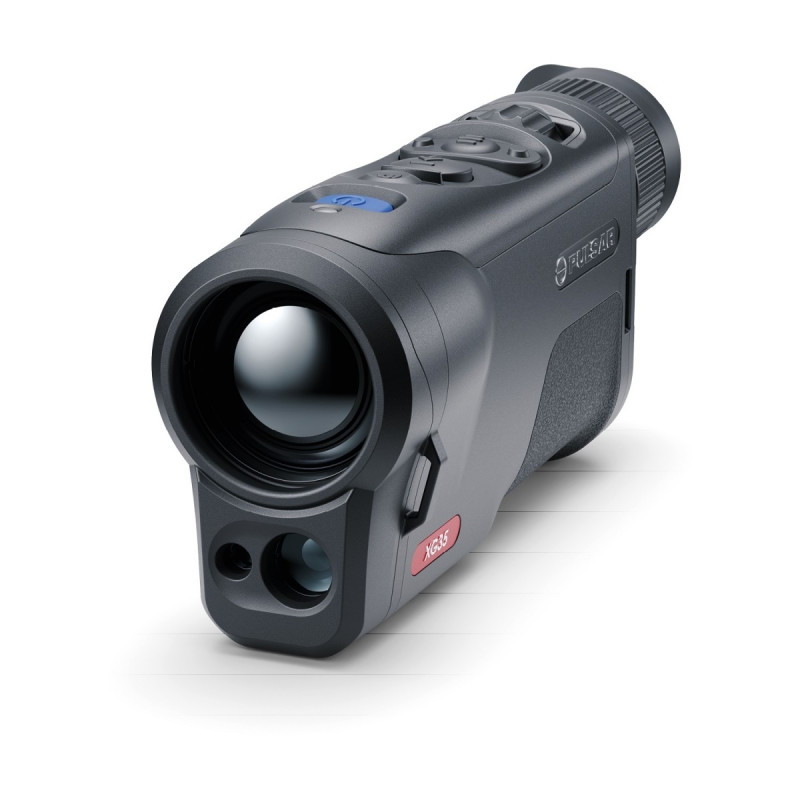

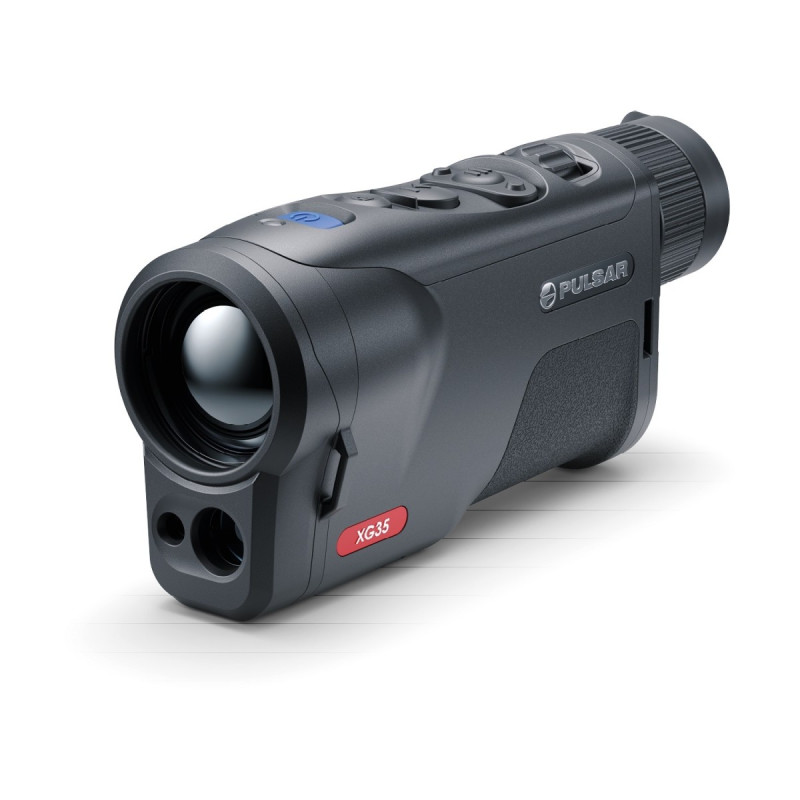

Thermal Imaging Monocular PULSAR Oryx LRF XG35

The Pulsar Oryx LRF monocular is built to withstand the toughest and longest hunts. Compact and optimized for one-handed use, it packs in all the essential features you need, including:

•  Long battery life for extended field use.
•  Extreme laser rangefinder (LRF) measuring range for precise targeting.
• Premium image quality and digital image stabilization for clear and steady visuals.

Built for more than performance, the Oryx LRF features a rugged magnesium alloy housing designed to withstand water, dust, impacts and harsh conditions — it’s as tough on the outside as it is advanced on the inside.

Main specifications

Sensor: @ 12 µm 640x480
Objective lens: F35 / 1.0
Magnification, x: 2.5 – 20 (x8 digital zoom)
FOV (HxV), degrees: 12.5
FOV (HxV), m@100m: 21.9
Diopter Adjustment, D: +4/-5
Detection range: 1800 m

Sensor

Type: uncooled
Resolution, pixels: 640x480
Pixel pitch, µm: 12
Sensor NETD, mK: < 40
System NETD, mK: < 20
Frame rate, Hz: 50

Optics

Objective lens: F35 / 1.0
Magnification, x: 2.5 – 20 (x8 digital zoom)
FOV (HxV), degrees: 12.5
FOV (HxV), m@100m: 21.9
Diopter Adjustment, D:+4/-5
Eye relief, mm: 15

Display

Type: AMOLED
Resolution, pixels: 1024x768

Range performance

Detection range, m: 1800 m

Laser rangefinder

Max. measuring range, m: 1500
Measurement accuracy, m: ± 1
Safety class for laser equipment according to IEC 60825-1:2014: 1
Wavelength, nm: 905

Video recorder

Video / photo resultion, pixel: 1024x768
Video / photo format: .mp4 / .jpg
Build-in memory, GB: 64

WI-FI

Wireless protocol: Wi-Fi
Wireless standard: IEEE 802.11 b/g/n/ac (WPA)
Frequency, Ghz: 2.4 / 5

Environmental characteristics

Degree of protection IP code (IEC60529): IP67
Operating temperature range, °С: -25 – +40

Connections and compatibilities

Mount type: 1/4"
Supported application: Stream Vision 2, Stream Vision Ballistics

Power supply

Output voltage, V: 3.0 – 4.2
Battery type: APS 5 Li-ion Battery Pack
Capacity, mAh: 4900
Operating time on battery pack, h at t=22°С: 12
External power supply, V: 5V; 9V (USB Type-C Power Delivery)

Weight & size

Body material: Magnesium alloy
Dimensions, mm: 179х52х77
Weight, kg: 0.5
SKU: 77504
